Application

Suitable for stadiums, arenas, schools, clubs and public buildings where areas are closed off or pedestrian traffic is needed to be controlled.

Description

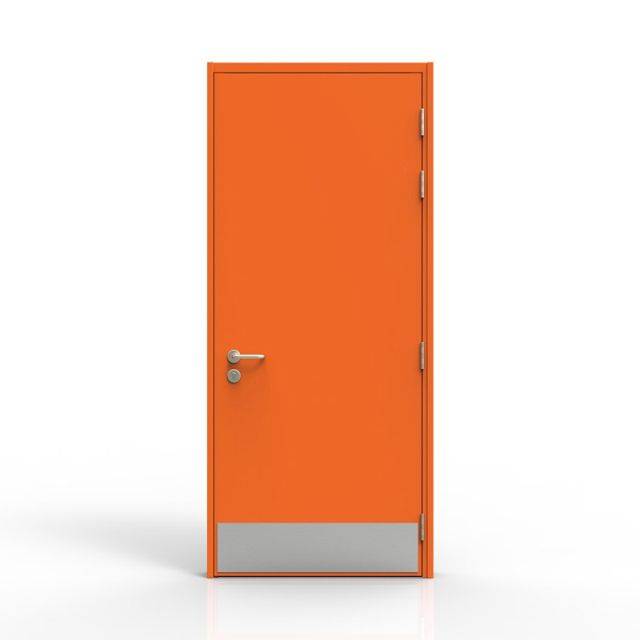

Steel security doors, designed to resist even the most determined physical assault, with anti-crush door frame reinforcement and dog-bolt hinges as standard features.


Features and benefits:

  • 50 mm-thick door leaf.
  • 120 mm Zintec steel frames.
  • Adjustable standard frame cappings.
  • Anti-crush door frame reinforcement.
  • Multiple frame fixing straps.
  • Screw-in frame fixings.
  • Dog-bolt hinges.
  • Stainless steel leaf capping.
  • Factory fitted ironmongery.
  • Factory fitted seals.
  • Manual flush bolts to all inactive leaves.

General information

Color

Other

Material

Steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Doors

Specification data - Carbon steel doorsets

Standard

To BS EN 179; BS EN 1125; BS EN 1935; BS EN 1158.

Emergency exit devices to BS EN 179; Panic escape devices to BS EN 1125; Single-axis hinges to BS EN 1935; Leaf co-ordination devices to BS EN 1158.

Configuration

Single leaf.

Leaf and part leaf.

Double leaf.

Doorset size

Insert requirements, maximum 2780 x 3000 mm.

Larger structural openings can be accommodated by the use of side panels and over panels.

Frame

-

Material

Zintec steel.

120 mm.

Finish

-

Coating

Consult manufacturer for options and insert requirements.

-

Texture

As Coating.

Colour

Consult manufacturer for options and insert requirements.

-

Installation fasteners

Screw-in frame fixings.

Door leaf

-

Thickness

50 mm.

Core

Manufacturer's standard. Consult manufacturer for more information.

Material

Steel.

Lippings

Lipped.

Rebated with security astragal.

Non-lipped.

Non-rebated meeting stiles.

Glazing

-

Type

Polycarbonate vision panel.

6.0 mm.

Finish

-

Coating

As Frame.

Other.

Consult manufacturer for options and insert requirements.

Texture

As Coating.

External colour

As Frame.

Other.

Consult manufacturer for options and insert requirements.

Internal colour

As External.

Other.

Consult manufacturer for options and insert requirements.

Film thickness (minimum)

As Coating.

Hardware

A full range of personnel and fire escape hardware options are available, with external access handles and knob sets as required. Can be supplied with thief resistant locks to BS 3621: 2007 (with key egress), BS 8621: 2007 (keyless egress) and BS 10621: 2007 (keyless egress with deadlock override facility).

Dog bolt hinges.

Manual flush bolts to all inactive leaves.

Emergency exit devices.

Panic escape devices.

Single-axis hinges.

Leaf co-ordination devices.

Accessories

Consult manufacturer for options and insert requirements or omit.

-

Opening

6.0 mm polycarbonate vision panel.

6.0 mm toughened glass vision panel.

6.4 mm laminated glass vision panel.

7.5 mm bandit glass vision panel.

Firelite ceramic glass vision panel.

Show more

Opening size

Not applicable.

Type A.

450 x 1500 mm.

Type B.

150 x 1500 mm.

Type C.

150 x 700 mm.

Type D.

150 x 500 mm.

Show more
