Securiguard Roller Shutters
Application

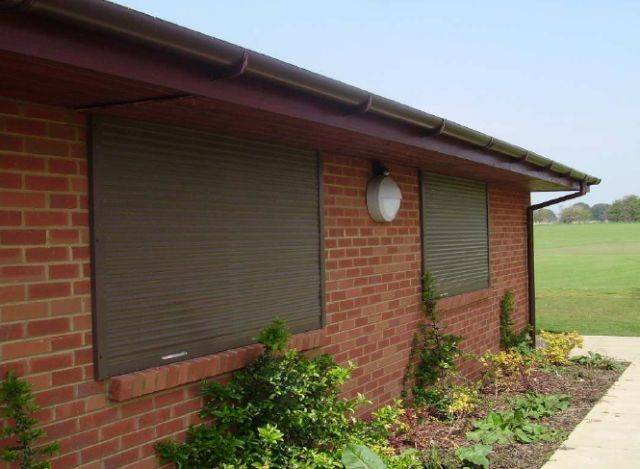

Ideal for window or door protection on commercial and domestic premises.

Description

Metal roller shutters which meet the demands of window/ door protection on commercial and domestic premises. Manufactured from extruded aluminium sections, the shutters are powder-coated white as standard, and are electrically-operated by a tubular motor with a variety of controls available.


Features and benefits:

  • Curtain: constructed from 38 mm twin-wall extruded aluminium flat laths, with end locks fitted to alternate laths to prevent lateral movement. The standard lath is 38 x 9 mm with other profiles available, including punched and glazed versions.
  • Bottom rail: formed from a flat aluminium extruded section with a rubber bottom seal.
  • Guides: the side guides are formed from 60 x 24 mm reinforced aluminium extruded channels, fitted with twin brush seals and an integral box section to allow fixing to the structure.
  • Endplates: fabricated from extruded aluminium of adequate thickness relative to door size, and fitted with lugs to engage in the side guides.
  • Roller: the roller is manufactured from an octagonal galvanized steel section of sufficient diameter and wall thickness to resist deflection, and is mounted in cups on each end plate. An aluminium casing is provided as standard.
  • Finish: polyester powder-coated white as standard. Other colours are available at extra cost.
  • Operation: electrical operation is by means of a single-phase tubular motor. A safety brake is fitted to all shutters where personnel could pass underneath, thus meeting all relevant health and safety requirements. The standard unit is pre-wired, obviating the need for a site electrician.
  • Controls: the standard method of control is by means of internal push-buttons. Other types of control, including key switches and group controls, are available at extra cost.

General information

Color

White

White as standard. Selection of BS and RAL colours also available.

Finish

Polyester powder-coated

Material

Aluminium

Galvanized steel

Shape

Rectangular

WarrantyDescription

12 months

Uniclass 2015

Pr_30_59_84_73 Roller shuttersPrimary
Pr_30_59_57_76 Security shutters

CAWS

L20/610 Roller shutters/ curtains

Specification data - Roller shutters Enhanced data

Opening sizes

Insert requirement, available up to 4 x 3 m.

-

Format

External.

Arrangement

Vertical, face fitted across opening.

Shutter curtain.

-

Lath material

Aluminium.

Profile

Flat.

38 x 9 mm solid flat – Standard.

Finish and colour

Polyester powder-coated, BS.

Insert colour requirement.

Polyester powder-coated, RAL .

Insert colour requirement.

Polyester powder-coated, White .

Standard.

Frame and guides

-

Material

Aluminium.

Finish

Powder coating to BS 6496.

Colour

BS.

Insert colour requirement.

RAL.

Insert colour requirement.

White.

Standard.

Operation

-

Mode

Automatic.

Electrical via a 230 V nominal, single-phase tubular motor with integrated safety brake

Control

Constant pressure internal push buttons.

-

Accessories

None.

Group controller.

Key switches.

Remote control via hand transmitter.

Safety photocell.

Product Reference

Securiguard Roller Shutters

Fixing

Fixed in-between.

Face-fixed.

Weight

15 kg/m³.

Approximately.
