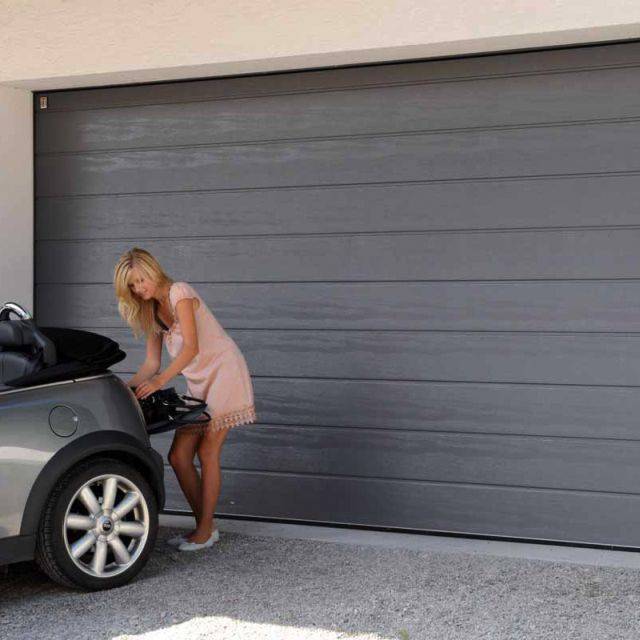

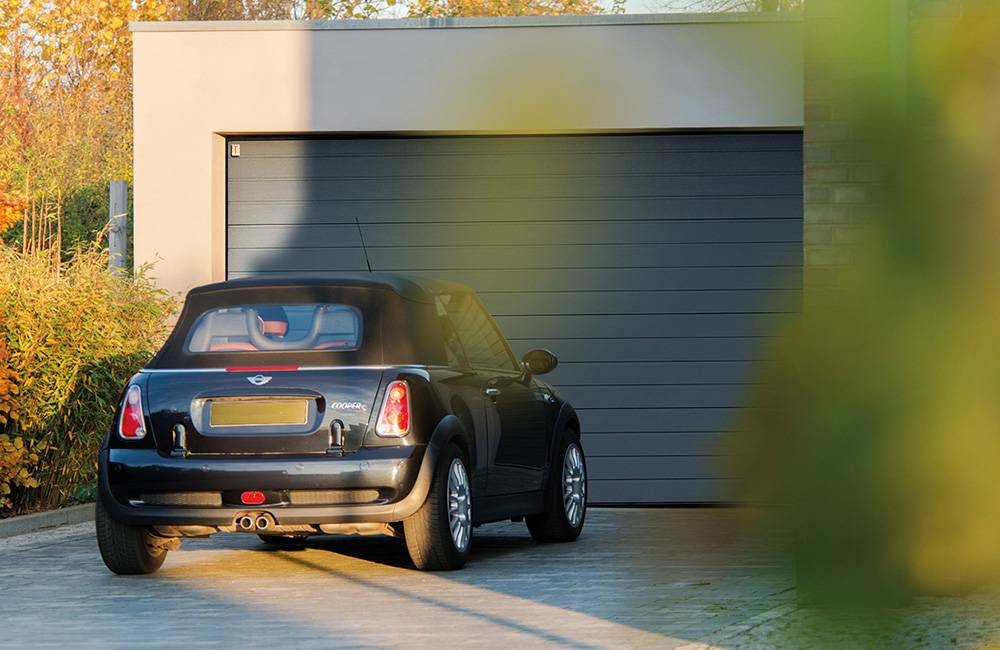

Teckentrup GSW40 Sectional Garage Door
Compare variants

Application

Suitable for for the following fixing applications:

  • Masonry.
  • Concrete.
  • Autoclaved aerated concrete.
  • Wooden framework.

Description

The sectional garage door consists of individual double-skinned steel door panels with galvanized surface, PUR foam core.


Features and benefits:

  • Available in various finishes.

General information

Color

White

Grey

Other

Prime coated in any RAL at additional cost, consult manufacturer and insert requirements.

Finish

Stucco, Micro-profiled, Woodgrain.

Smooth

Textured

Material

Steel

Frame.

Aluminium

Wicket door.

Polyurethane

Insulation: Polyurethane foam core.

Shape

Rectangle

Uniclass

Pr_30_59_24_75 Sectional overhead doorsetsPrimary

CAWS

L20/60 Doors

L20/615 Sectional overhead doors

Specification data - Sectional overhead doorsets

Grade

External.

Arrangement

-

Type

Vertical sectional folding/ stacking.

Track system

Heavy gauge cold rolled galvanized steel.

Door panels

-

Type

Galvanized steel inner and outer face infilled with high density polyurethane foam.

Finish

Internal.

Stucco.

Colour

Internal.

Grey white, similar to RAL 9002.

Standard.

RAL.

Prime coated in any RAL at additional cost, consult manufacturer and insert requirements.

Operation

-

Activation

Automatic.

Control

Microprocessor-controlled drive.

Drive: Microprocessor-controlled drive, rail-guided, 230 V, 50 Hz control: Impulse control with self-programming of the force limiter, soft start and stop. Digital remote control.

Door leaf

Centre ribbed.

Georgian/ Cassette.

Ribbed.

Smooth.

Thickness

Door thickness.

40 mm.

Exterior

Door lead finish exterior.

Micro-profiled.

Smooth.

Stucco.

Woodgrain.

External colour

Traffic white, similar to RAL 9016.

Standard.

RAL.

Prime coated in any RAL at additional cost, consult manufacturer and insert requirements.

Material

Frame material.

Sendzimir galvanized sheet steel.

Frame finish

Frame finish.

Coil-coated with polyester, prime coated.

 EPDM strip with sealing lip at the sides and header trim.

Frame colour

Traffic white.

Similar to RAL 9016.

Core

Polyurethane foam core.

Sealant

EPDM seal.

  • Bottom door edge: Frost-proof and rot-proof EPDM floor seal.
  • Frame: EPDM strip with sealing lip at the sides and header trim.

Wicket door

Not required.

Required.

Enclosed in aluminium profiles E6/ EV1 (the wicket door is always located in the middle), with low threshold 45 mm and full floor seal. The wicket door has a standard clearance width of 810 mm. All wicket doors include a top door closer, a profile cylinder pre-equipped lock with profile.

Glazing

Not required.

Delete glazing keyword if specifying GSW 40-L.

Manual locking mechanism

Not required.

Required.

Special option, maximum door width 5000 mm.

Emergency release

Not required.

Required.

Required if there is no other entry to the garage.
