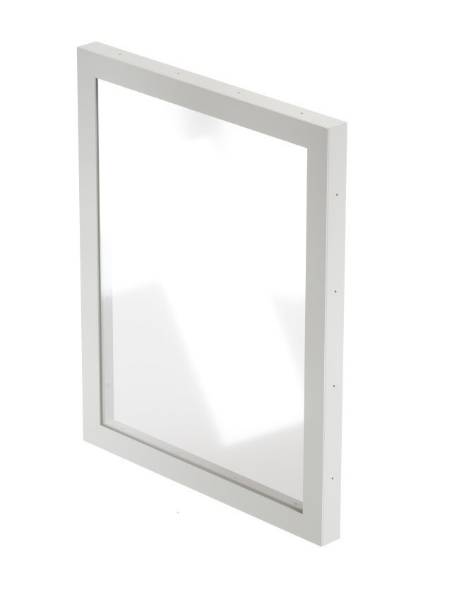

Secondary Security Glazing
Secondary Glazing provides bullet resistance, protection from physical attack and enhanced burglary resistance.
Application
Suitable areas of application include:
- Historic buildings.
- Banks.
- Listed buildings.
Description
It fits behind existing external windows to avoid drawing attention to secure areas, mainly to an area of a building that requires enhances levels of protection.
Features and benefits:
- Available in manual attack and bullet resistance.
- Can be installed into a window reveal or an independent frame.
- Does not disturb existing external glazing.
- Built to order.
Application:
Suitable areas of application include:
- Historic buildings.
- Banks.
- Listed buildings.
General information
Size | Insert requirement, consult manufacturer for details. |
Uniclass 2015 | |
CAWS | L10/550 Glazed metal screens L10/56 Glazed screen system L10/560 Glazed screen system |
Specification data - Laminated glass sheets
Product Reference | Secondary Security Glazing |
Size | Insert requirement, consult manufacturer for details. |
Glazing | - |
Thickness | 13.5 mm44 mm frame depth, 30 kg/m², 2200 mm maximum width. 36 mm98 mm frame depth, 84 kg/m², 1600 mm maximum width. 42 mm110 mm frame depth, 100 kg/m², 1300 mm maximum width. |
Obscure panels | Not requiredRequired |
Frame finish | Powder coatedInsert colour requirement. Satin polished stainless steel |
Resistance | BS 5051 G2/S86EN 1063 up to BR6EN 1522 up to FB6 |
