Secondary Glazing Horizontal Slider Unit

Name: Secondary Glazing Horizontal Slider Unit
Brand: 7RnwLqcM6VCTKYA8rVjZrk
SKU: 9rKr5ReS6kuZq5X84LryLa

Ventrolla Sash Window Restoration

Horizontally sliding secondary glazing.

Jump to:

+44 (0)1423 859323 www.ventrolla.co.uk

Description

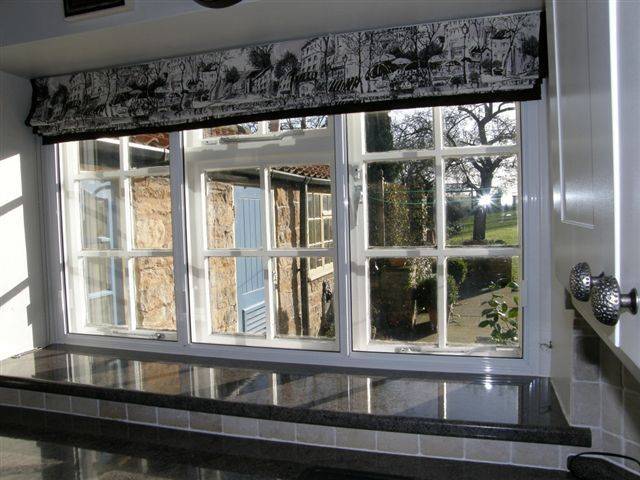

Horizontally sliding secondary glazing available in two, three and four panelled combinations. Can be supplied with arched or gothic head profiles and with stacking units. These units are generally used in conjunction with either sash or casement windows where full access is required and where there is sufficient space internally to open the casement secondary glazing.

Approvals:

Tested and approved to the following British Standards:

BS 1474 (Aluminium Alloy).

BS 7386 (Polypropylene draught strip).

BS 6375-1 (Performance - Water tightness - Test pressure class 300 Pa).

BS 5368-1 (Performance - Air permeability - Test pressure class 600 Pa).

BS 5821-3 (Acoustic performance - Weighted sound reduction index, minimum Rw 49 dB).

BS 6206 (Glazing).

BS 2782 (Gaskets).

General information

Size

As drawing

As schedule

Uniclass 2015

Aluminium window units (Pr_30_59_98_02)Primary

Specification data - Aluminium window units

Product Reference	Secondary Glazing Horizontal Slider Unit
Type	CO3 Left-hand Three-piece horizontal slider. CO3 Right-hand Three-piece horizontal slider. SS2 Left-hand Two-piece horizontal slider. SS2 Right-hand Two-piece horizontal slider. SS3 Three-piece horizontal slider. SS4 Four-piece horizontal slider. SS5 Five-piece horizontal slider.
Size	As drawing As schedule
Special features	Not required Arched head Gothic head Stacking units
Frame finish	Anodized, natural Standard. Polyester powder coating, white Polyester powder coating, van dyke brown Polyester powder coating, RAL Special order, insert colour requirement.
Glazing	Acoustic glass, 6.4 mm Acoustic glass, 6.8 mm Clear float glass, 4 mm Clear float glass, 6 mm Laminated glass, 6.4 mm Laminated glass, 6.8 mm Toughened glass, 4 mm Toughened glass, 6 mm
Gaskets	Black Standard. White
Ironmongery	Barrel lock Budget lock Chubb lock Shoot bolt Restricted opening lock
Trims	-
Material	Hardwood PVC-U
Size	6 x 15 mm D.B.N 6 x 33 mm D.B.N 6 x 43 mm D.B.N 6 x 21 mm S.B.N 6 x 27 mm S.B.N 6 x 37 mm S.B.N 6 x 44 mm S.B.N 6 x 55 mm S.B.N 6 x 75 mm S.B.N
Grounds/ Sub frame	21 x 45 mm hardwood sub-frame, standard fix 21 x 62 mm hardwood sub-frame, reveal fix 30 x 30 mm hardwood sub-frame, bay adaptor Insert requirement.
Fixing	Face fix Reveal fix

Standard product features

Frame:
Aluminium 6063 T6 Alloy to BS 1474.
Weather pile:
Polypropylene draught strip to BS 7386.
Performance:
Water tightness (to BS 6375-1): Test pressure class 300 Pa.
Air permeability (to BS 5368-1): Test pressure class 600 Pa.
Acoustic performance (to BS 2750-3, BS 5821-3): Weighted sound reduction index, minimum Rw 49 dB.

Product Options

Product reference:
Available with combinations of two, three or four panels. Two and three panel systems are handed.
Size (w x h, maximum):
Two panel: 2400 x 2000 mm.
Three panel: 3600 x 2000 mm.
Four panel: 4900 x 2000 mm.
Five panel: 4900 x 2000 mm.
Frame finish:
Anodized to AA5 - BS 3987 or polyester powder coating to BS 6496 to give a 60 micron high gloss finish. Stock colours are white and van dyke brown, other RAL colours available on request.
Glazing:
Glazing to BS 6206. Available with acoustic glass, clear float glass, laminated glass or toughened glass, all in a range of thicknesses.
Gaskets:
Extruded to BS 2782. Standard colour black, white gaskets available on request.
Ironmongery:
Available with a range of ironmongery.
Trims:
Hardwood or PVC-U trims colour coded in a range of sizes.
Grounds/ Sub-frames:
Available with hardwood sub-frames to suit standard or reveal fix, or with bay adaptor.
Fixing:
Consult Ventrolla for recommendations and details.
