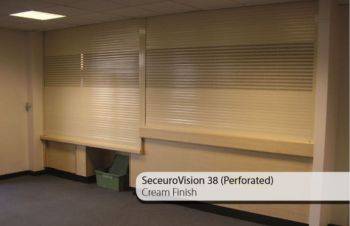

SeceuroVision CD38 Perforated

Third party certifications:
  • QA Certificate

    Certificate type

SWS UK

Medium security built-on roller shutter with perforated aluminium slats.

Jump to:
+44 (0)1524 772400 www.sws.co.uk
Application

For external fitting. Primarily for use within medium security domestic, commercial, retail and office applications. Can also be used within bars, restaurants, and kiosks.

Description

Medium security built-on roller shutter with perforated aluminium slats.

The shutter will lock automatically at the top when fully lowered. The bottom section of the shutter box is riveted after installation. The fixing screw-heads are rendered unusable and are concealed behind cover caps. The aluminium slats coil tightly into a range of compact boxes (137–250 mm), minimizing their visual impact.

Features and benefits:

  • Provides up to 17% visibility through the shutter.
  • Designed to integrate seamlessly into a building.
  • Unobtrusive, aesthetically pleasing, compact, lightweight and easy to use.
  • Provides secure daily use against burglary and vandalism.
  • Range of colours available. Bespoke colours can also be incorporated for unique project requirements.
  • Available with radio motors for automation with wireless control - consult manufacturer for details.
  • Can be combined with SeceuroShield 38 punched or standard variants where required.
  • Manufactured in the UK.
  • CE marked.
  • Two-year guarantee on the shutter, five-year guarantee on the motor (for electric variants).

Applications:

For external fitting. Primarily for use within medium security domestic, commercial, retail and office applications. Can also be used within bars, restaurants, and kiosks.

General information
Specification data - Roller shutters
Product Reference

SeceuroVision CD38 Perforated

Opening sizes

540–2880 mm (width), 398-4700 mm (height). Insert requirements.

Format

External

Internal

Reveal

Guide rails

H30, 60 x 24 mm

H40/S, 70 x 27 mm

For higher levels of security.

Finish -
Slats

Brown

Slats generally.

Cream

Slats generally.

Dark brown

Bottom slat only.

White

Bottom slat/ slats generally.

Bespoke

Insert RAL/ BS colour.

Shutter Box

Dark brown

White

Bespoke

Insert RAL/ BS colour.

Guide rails

Brilliant white

Brown

Cream

Dark brown

Standard only.

White

Bespoke

Insert RAL/ BS colour.

Glazing

Not required

Polycarbonate glazing

Operation

Electric

Recommended on shutters above 25 kg, optional on smaller shutters (minimum shutter width 750 mm).

Geared belt winder

For shutters between 15–25 kg. 1:3 ratio with removable handle for belt operated shutters.

Rod crank operation

For shutters up to 25 kg. Incorporates a geared rod crank handle 1500 mm long which hangs vertically.

Spring loaded

A counterbalance spring in the axle ensures controlled raising and lowering.

Swivel belt winder

For shutters up to 15 kg. The swivel winder coils the belt when it is pulled to open the shutter.

Control

Manufacturer's standard

Accessories/ Other requirements

Not required

30 x 20 mm angle

On the sill.

Bottom lath (reinforced angle/ sloped)

Standard product features

Components:

  • Slats: Single skin extruded aluminium. 40 mm high x 8.7 mm thick (6.5 kg/m² without glazing, 8 kg/m² with glazing).
  • Shutter box: Roll formed aluminium in two sections (top and bottom boxes). Bottom box is removable for installation and maintenance, and is chamfered at 45°. Assembled on die cast aluminium end plates. Box size depends upon clear opening height.
  • Motor (electric variant only): 240 V AC tubular motor, supplied as standard with a 2 m cable. Complete with integral limit switches and thermal cut-out to prevent overheating.

Product Options

Finish:

- Slats:

A finish must be selected for both the main body, and the bottom slat.

Guide rails:

Extruded aluminium with an integral box section for reinforcement and to facilitate fixing, with 5 mm pile brush seals for quiet and smooth operation.

Operation:

- Electric:

Provision of a 13 A fused spur is required for installation. A manual override should be priced and ordered separately for shutters which are to be installed on exit doorways to permit operation in the event of a power failure.

- Rod crank operation:

Secures to a clip when not in use. The gear is installed in the box, the gear ratio varies with shutter weight.

Spring loaded:

An espagnolette key lock or shoot bolts lock into the guide rails and are usually incorporated in the bottom slat. Final adjustment of the spring loading after installation is always required.

- Swivel belt winder:

The belt is 14 mm wide and grey in colour. External shutters are supplied with a guide tube to protect the belt through the building wall.

Control:

Electric: Momentary switch which must be held until the shutter reaches the desired position.

Third party certifications
  • BS EN 13241: 2003 : Assessment report 144081B
