SeceuroShield CD60

SeceuroShield CD60

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

SWS UK

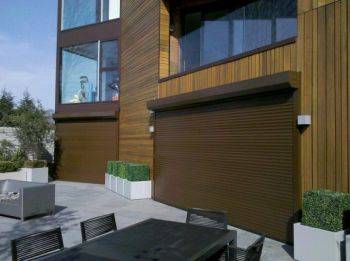

High security built-on roller shutter with solid aluminium slats.

Jump to:
+44 (0)1524 772400 www.sws.co.uk
Application

Can be fitted both internally and externally. Primarily for use within high security commercial, office and retail applications. Can also be used within bars, restaurants, and kiosks.

Description

High security built-on roller shutter with solid aluminium slats, non-vented.

The aluminium slats coil tightly into a range of compact boxes (205–350 mm), minimizing their visual impact.

Features and benefits:

  • Covers up to 20 m², for use to protect larger spaces.
  • Large slat profile.
  • Provides a high level of security.
  • Designed to integrate seamlessly into a building.
  • Unobtrusive, aesthetically pleasing, and easy to use.
  • Provides secure daily use against burglary and vandalism.
  • Range of colours available. Bespoke colours and graphics can also be incorporated for unique project requirements.
  • Manufactured in the UK.
  • CE marked.
  • Two-year guarantee on the shutter, five-year guarantee on the motor (for electric variants).

Applications:

Can be fitted both internally and externally. Primarily for use within high security commercial, office and retail applications. Can also be used within bars, restaurants, and kiosks.

General information
Uniclass 2015
Pr_30_59_84_73 Roller shuttersPrimary
CAWS

L20/610 Roller shutters/ curtains

Specification data - Roller shutters
Product Reference

SeceuroShield CD60

Opening sizes

560–5850 mm (width), 299-4554 mm (height). Insert requirements.

Format

External

Internal

Reveal

Guide rails

UPH 140, 60 x 27 mm

Up to 1595 mm clear opening height.

UPH 240, 75 x 27 mm

2750–2900 mm clear opening height.

UPH 250, 90 x 34 mm

2900+ mm clear opening height..

Finish -
Slats

Black

Brown

Slats generally.

Dark brown

Bottom slat only.

White

Bottom slat/ slats generally.

Bespoke

Insert RAL/ BS colour or graphic requirements.

Shutter Box

Dark brown

White

Bespoke

Insert RAL/ BS colour.

Guide rails

Dark brown

White

Bespoke

Insert RAL/ BS colour.

Operation

Electric

Mandatory on shutters above 25 kg, optional on smaller shutters (minimum shutter width 750 mm).

Spring loaded

A counterbalance spring in the axle ensures controlled raising and lowering.

Control

Manufacturer's standard

Accessories/ Other requirements

Not required

Bottom lath (reinforced angle/ sloped)

Standard product features

Components:

  • Slats: Double skin extruded aluminium. 55 mm high x 14 mm thick (9 kg/m²).
  • Shutter box: Roll formed aluminium in two sections (top and bottom boxes). Bottom box is removable for installation and maintenance, and is chamfered at 45°. Assembled on die cast aluminium end plates. Box size depends upon clear opening height.
  • Motor (electric variant only): 240 V AC tubular motor, supplied as standard with a 2 m cable. Complete with integral limit switches and thermal cut-out to prevent overheating.

Product Options

Finish:

- Slats:

A finish must be selected for both the main body, and the bottom slat.

Guide rails:

Extruded aluminium with an integral box section for reinforcement and to facilitate fixing, with 4 or 7 mm pile brush seals for quiet and smooth operation.

Operation:

- Electric:

Provision of a 13 A fused spur is required for installation. A manual override should be priced and ordered separately for shutters which are to be installed on exit doorways to permit operation in the event of a power failure.

- Spring loaded:

An espagnolette key lock or shoot bolts lock into the guide rails and are usually incorporated in the bottom slat. Final adjustment of the spring loading after installation is always required.

Control:

Electric: Momentary switch which must be held until the shutter reaches the desired position.

Third party certifications
  • BS EN 13241: 2003 : Assessment report 143785C
