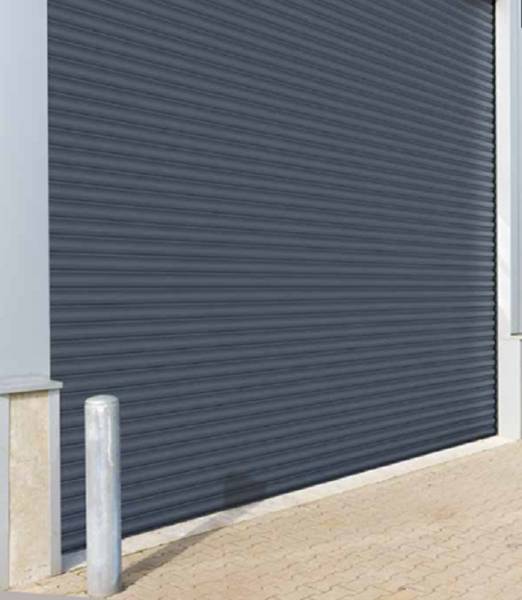

Continental-style steel roller shutter, with scrolled slat profile.
Suitable for high-security office, commercial and industrial applications. This product can only be installed internally, and the shutter box must be installed above the structural opening.
Continental-style steel roller shutter, with scrolled slat profile. Features a neat, continental-style headbox and aluminium guide rails for a higher grade installation.
Features and benefits:
Application:
Suitable for high-security office, commercial and industrial applications. This product can only be installed internally, and the shutter box must be installed above the structural opening.
Finish | Galvanized Standard. Powder-coated RAL and BS colours available at extra cost. Insert requirements. |
Uniclass 2015 | |
CAWS | L20/610 Roller shutters/ curtains |
Product Reference | SeceuroShield 7501 Continental StyleSeceuroVision 7501 Continental Style |
Finish | GalvanizedStandard. Powder-coatedRAL and BS colours available at extra cost. Insert requirements. |
Shutter box colour | BrownWhite |
Motor | Consult manufacturer for details and insert requirements. |
Wicket door | Not requiredRequired |
Accessories | NoneBullet lockLock for bottom slat |
Standard product features | Size (h x w, minimum–maximum): 600–3400 x 900–6000 mm. (2800 x 4000 mm, maximum if spring and lock). - Slats: Nominally 75 mm high x 19 mm thick. - Bottom slat (h x d): 'T' section – 49 x 74 mm. - Shutter box:
- Guide rails (w x d): 90 x 34 mm. Construction: - Slats:
- Bottom slats: 'T'-sectioned steel bottom slat. If electrically operated and fitted with bullet locks, steel bottom slat anchors are fitted on each end. - Shutter box: Two or three-piece, roll-formed aluminium casing with steel end plates. - Guide rails: Extruded aluminium, with box section for fixing and reinforcement. Includes high density of 4 mm pile brush seals. If electrically operated and fitted with bullet locks, guide inserts are fitted in the base of the guide rails as standard. Reveal-fitted guide rails will also include a guide shoe. Operation: - Electric: Electric operation is required on larger shutters due to the weight, and is optional on smaller shutters. Operation is by a tubular motor inside the axle. Control is by a momentary switch, which must be held until the shutter reaches the desired position. Electrically operated SeceuroShield 7501 and SeceuroVision 7501, which are less than 3 m wide, will require a lock in the bottom slat. Electrically operated SeceuroShield 7501 and SeceuroVision 7501, which are between 3 and 6 m wide, will require a bullet lock on each guide rail. - Spring-loaded: A counterbalance spring in the axle ensures controlled raising and lowering. A lock in the bottom slat is used to secure the shutter when closed. Weight:
Fixings: Varies depending on size; consult the literature for details. The shutter box is fixed at each end and 1000 mm centres. |
