SeceuroGlide Sectional
Application

Suitable for garage door applications.

Description

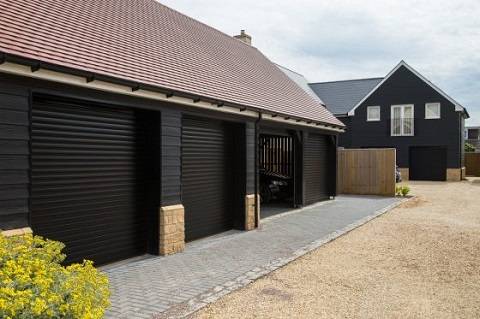

Insulated sectional garage doors, manufactured from foam-filled steel panels and operated by key fob transmitters as standard. They are designed to require minimal headroom above the opening, and are fully CE-compliant and safety-tested.

Application:

Suitable for garage door applications.

General information
Size

As drawing

Insert reference.

As schedule

Insert reference.

Uniclass 2015
Pr_30_59_24_93 Up-and-over doorsetsPrimary
Specification data - Up-and-over doorsets
Product Reference

SeceuroGlide Sectional Compact

Available 1500–5250 x 1875–3000 mm (w x h).

SeceuroGlide Sectional Elite

Available 2000–3500 x 1875–2250 mm (w x h).

SeceuroGlide Sectional Plus

Available 1500–5250 x 1875–3000 mm (w x h).

Size

As drawing

Insert reference.

As schedule

Insert reference.

Panel

Insert requirement from 'Options' below.

Panel Type

Cassette

Centre rib

Micro rib

Ribbed

Top rib

Unribbed

Height

500 mm

610 mm

Finish

Embossed

For Cassette, Centre rib or Ribbed only.

Smooth

Not available for Cassette.

Colour

Insert requirement from 'Options' below.

Intruder alarm

Not required

105 dB intruder alarm

For use with Dexxo Pro 1000.

Standard product features

Required headroom:

  • Compact: manual: 70 mm, electric: 120 mm.
  • Elite: manual: 100 mm, electric: 130 mm.
  • Plus: 200 mm (manual and electric).

Hardware:

Galvanized running gear, and powder-coated front angles and lintel (Elite and Compact).

  • Compact: rear-sprung torsion spring system.
  • Elite: side-sprung tension spring system.
  • Plus: front-sprung torsion spring system.

Panels:

  • Construction: twin-walled steel panel, insulated with CFC-free polyurethane foam to reduce heat loss and sound transmission.
  • Thickness: 40 mm.
  • Assembly: panels are held in place with galvanized hinges and brackets. With powder-coated end caps, and galvanized top and bottom rail slat which incorporates a 25 mm rubber seal to help prevent water ingress and draughts.

Control:

  • Remote unit: Somfy Dexxo Compact or Pro 1000 remote receiver unit, with integral courtesy light and two-key fob transmitters with rolling code technology.
  • Safety: all Dexxo receiver units supplied with resistive motor technology as standard.

Installation:

Internally fixed.

Product Options

Size:

Available up to 5200 x 3500 mm (w x h). At 3500 mm height, the maximum width is restricted to 3000 mm.

Panel colour:

  • Standard colours: Moss Green, Fir Green, Steel Blue, Light Blue, Flame Red, Red, Traffic White, White, Brown, Light Brown, Light Grey, Anthracite, Window Grey, White Aluminium, Grey Aluminium, Black, Light Ivory, Stone Grey, Terra Brown, Clay Brown, Pigeon Blue.
  • Metallic surcharge colours: Titanium Silver, Sand grey, Olive Grey Green, Steel Blue, Leather Brown, Midnight Black, Noble Blue Grey, Onyx Black.
  • Textured woodgrain surcharge colours: Golden Oak.
