Application

Suitable for commercial and industrial applications. This product can be installed internally or externally.

Description

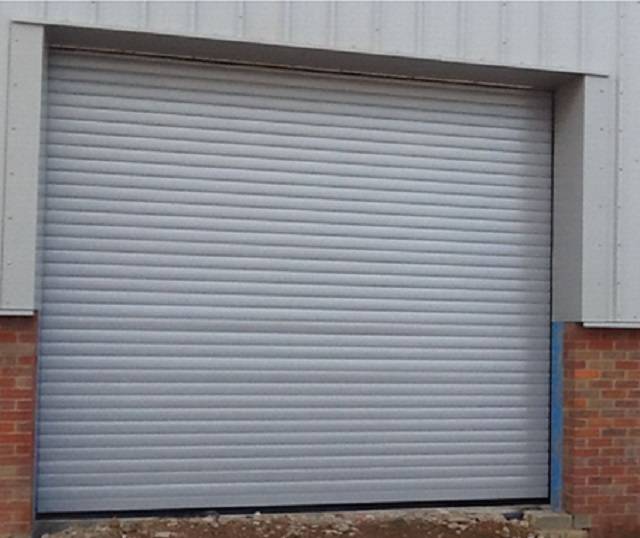

Industrial-style steel roller shutter, with foam-filled slat profile. This insulated steel profile is especially resistant to damage, and reduces deflection. With the option of interior and exterior identical colour coating, the insulated shutter can easily be blended into the look of any building, and is also available with a galvanized finish.

Minimal thermal bridges and the use of fine-pored polyurethane (PU) rigid foam infill ensure good thermal insulation, whilst curtain and sealing technology used around the entire shutter reduces noise from both inside and outside.

Features and benefits:

  • Heat transmission performance for an operational door unit 3.9 W/(m²·K).
  • Acoustic reduction rating of 27 dB.
  • Choice of four guide arrangement options.
  • Standard guide angle is 100 x 50 mm.
  • Vision panel with a minimum of 200 mm space in-between.
  • Wind class rating: Class 3.
  • Safety edge included.

Application:

Suitable for commercial and industrial applications. This product can be installed internally or externally.

General information
Finish

Galvanized

Standard.

Mill

Powder-coated

Insert requirements.

Uniclass 2015
Roller shutters (Pr_30_59_84_73)Primary
Specification data - Roller shutters
Product Reference

SeceuroDoor 95

SeceuroDoor Vision 95

100 x 55 mm clear perspex.

Finish

Galvanized

Standard.

Mill

Powder-coated

Insert requirements.

Motor

Consult manufacturer for details and insert requirements.

Accessories

None

Bullet lock

Not on wind guides.

Standard product features

Size (h x w, minimum–maximum):

1000–7000 mm. (Maximum width for powder-coating is 6500 mm; above 6400 mm high, guide is supplied in two parts).

- Laths:

Nominally 95 mm high x 20 mm thick.

- Bottom slat (h x d):

70 x 20 mm.

- Hood and fascia:

To suit end plate (350–550 mm)

- Guide channels (w x d):

80 x 52 mm. 80 x 78.5 mm windlock guides.

Construction:

- Laths:

  • SeceuroDoor 95 uses a foam-filled steel lath.
  • SeceuroDoor Vision 95 uses a foam-filled punched and glazed steel lath.

- Bottom slats:

Extruded bottom slat.

- Hood and fascia:

Two or three-piece steel casing with steel endplates.

- Guide channels:

3 mm galvanized steel channels.

Operation:

- Electric:

Electric operation is by a single or three-phase motor, either direct-drive or chain-driven. Control is by either a control panel or a momentary switch, which must be held until the shutter reaches the desired position.

Weight:

  • SeceuroDoor 95: 10 kg/m².
  • SeceuroDoor Vision 95: 12 kg/m².

Fixings:

Varies depending on the application; consult the literature for details. The hood is fixed at each end and 1000 mm centres.
