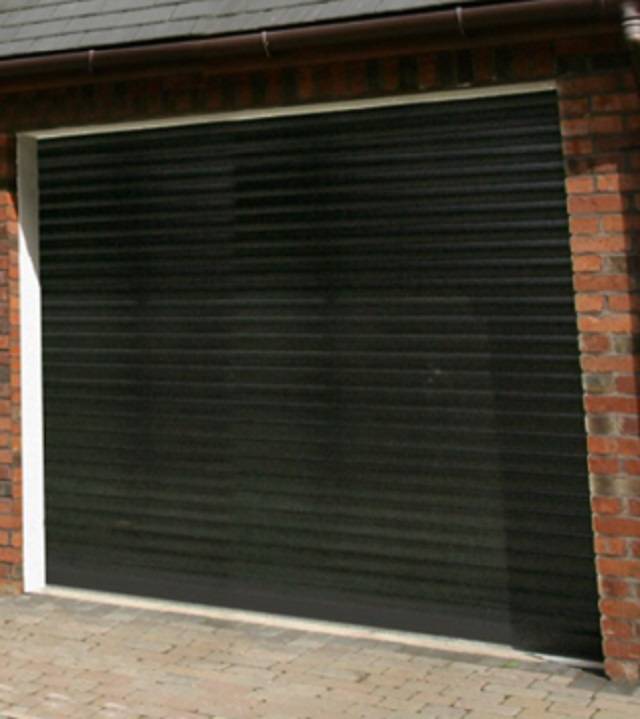

Continental-style steel roller shutter, combined with foam-filled slat profile.
Suitable for medium-security office – commercial and industrial applications. This product can be installed internally or externally.
Continental-style steel roller shutter, combined with foam-filled slat profile. Minimal thermal bridges and the use of fine-pored polyurethane (PU) rigid foam infill ensure good thermal insulation, whilst curtain and sealing technology used around the entire shutter reduces noise from both inside and outside.
Features and benefits:
Application:
Suitable for medium-security office – commercial and industrial applications. This product can be installed internally or externally.
| Finish | GalvanizedStandard. MillGuide channels and bottom slat. Powder coatedInsert requirements. |
| Uniclass 2015 |
| Product Reference | SeceuroDoor 77t |
| Finish | GalvanizedStandard. MillGuide channels and bottom slat. Powder coatedInsert requirements. |
| Motor | Not requiredTube motor |
| Accessories | NoneBullet lock |
| Standard product features | Size (h x w, minimum–maximum): 600–3400 x 900–6000 mm. (2800 x 4000; maximum if spring and lock). - Laths: Nominally 77 mm high x 15 mm thick. - Bottom slat (h x d): 77 x 17 mm. - Guide channels (w x d): 95 x 34 mm. Construction: - Laths: Foam-filled, insulated lath. - Bottom slats: Extruded bottom slat. - Hood and fascia: Two or three-piece steel casing with steel end plates. - Guide channels: 3 mm aluminium channels. Operation: - Electric: Electric operation is required on larger shutters due to the weight, and is optional on smaller shutters. Operation is by a tubular motor inside the axle. Control is by a momentary switch, which must be held until the shutter reaches the desired position. Weight: 12 kg/m². Fixings: Varies depending on the application; consult the literature for details. The hood is fixed at each end and 1000 mm centres. |
