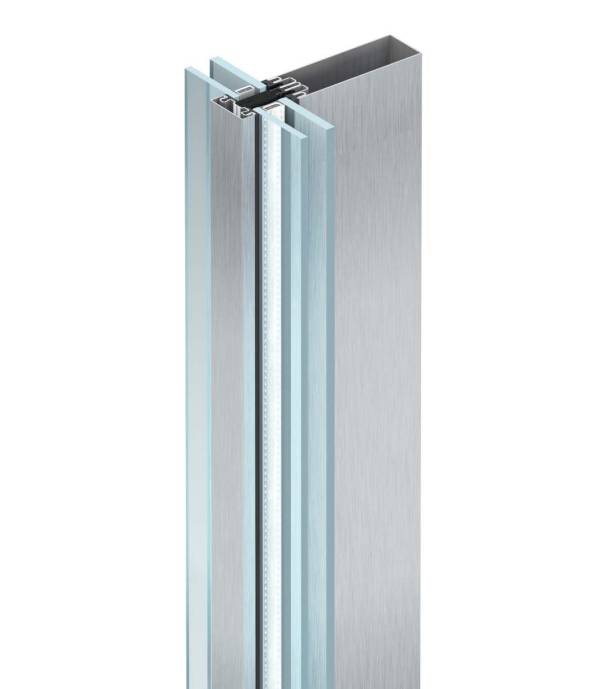

Stainless steel frame
Stylish, high-performing Secco 4F1 curtain walling system, available in powder-coated steel, stainless steel, Corten steel and brass.
Curtain walling including large-span applications.
Stylish, high-performing Secco 4F1 curtain walling system, available in powder-coated steel, stainless steel, Corten steel and brass.
The Secco 4F1 system maximises natural light and the sense of space for building users, strengthening their connection with the outdoors. These features improve mood and well-being, making them critical design considerations when developing sought-after commercial environments. Providing endless design possibilities, the use of these steel profiles can create larger expanses of glass than with other material.
Offering style and high performance, these steel-glass curtain walls can be designed to meet high energy efficiency, and fire, smoke and security resistance.
Features and benefits:
Color | Clear Silver Gold Grey Black |
Finish | Smooth Galvanized Powder-coated Stainless steel Blackened |
Material | Cor-Ten Steel Brass Stainless steel Glass |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Classification data | |
Framing | |
Frame members | Stainless steel curtain wall frame sections, 50 x 50 mm. Stainless steel curtain wall frame sections, 80 x 50 mm. Stainless steel curtain wall frame sections, 100 x 50 mm. Stainless steel curtain wall frame sections, 120 x 50 mm. Stainless steel curtain wall frame sections, 150 x 50 mm. Stainless steel curtain wall frame sections, 180 x 50 mm. |
Frame accessories | Stainless steel cover caps. Galvanized steel cover caps. Corten cover caps. Brass cover caps. Manufacturer guidanceSee Colour below for capping colour options where applicable. |
Cladding units | |
Glass units | Insulated glass units (IGUs), thickness. Guidance for specification option: Insert requirements, up to 56 mm. |
Panels and facings | |
Material | Not required. Required. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Thermal insulation | Not required. Required. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Internal linings | Not required. Required. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Fasteners | Guidance for specification option: Consult manufacturer for details and insert requirements. |
System accessories | Guidance for specification option: Consult manufacturer for details and insert requirements, or omit. |
Configuration | Guidance for specification option: Consult manufacturer for options. Note that individual window section sizes vary depending on profile size. Manufacturer guidanceInclude drawing/ schedule as required. Can be integrated with Secco Sistemi OS2 and EBE systems. |
Air permeability | To EN 12152, AE. |
Watertightness | To EN 12154 - static: RE1500. To ENV 13050 - dynamic, 250Pa/ 750 Pa. |
Wind resistance | To EN 13116, increased load: ±3.0 kN/m²; allowed load: ±2.0 kN/m². |
Impact resistance | To EN 14019, I5/ E5. |
Thermal transmittance (U-Value) | Up to 0.8 W/m²K. |
Colour | Satin Brass. Patinated Brass (Architectural Bronze). Corten. Stainless Steel. Burnished Stainless Steel (darkened Stainless Steel). Painted galvanized steel - Black RAL 9005 Matt. Painted galvanized steel - Black RAL 9005 Semi-gloss. Painted galvanized steel - Graphite Grey RAL 7024 Matt. Painted galvanized steel - Graphite Grey RAL 7024 Semi-gloss. Painted galvanized steel - Anthracite Grey RAL 7016 Matt. Painted galvanized steel - Anthracite Grey RAL 7016 Semi-gloss. Painted galvanized steel - Cream White RAL 9001. Painted galvanized steel - Traffic White RAL 9016. Painted galvanized steel - Pure White RAL 9010. Painted galvanized steel - RAL colour. Guidance for specification option: Consult manufacturer and insert colour requirements. Specialist colours available on request. Manufacturer guidanceCapping only. |
Material | Cor-Ten Steel Brass Stainless steel Glass Carbon steel |
