Seamless Rubber Waterproofing Membrane Newton HydroBond 108-LM for External Waterproofing of Basements - Seamless Rubber Waterproofing Membrane
Verified by manufacturer 5 months ago
KIWA BDA
Certificate type

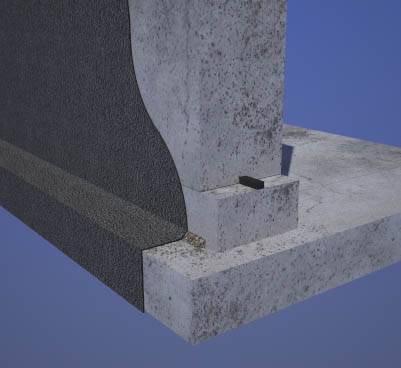

Highly radon resistant, cold spray-applied, seamless rubber waterproofing membrane for the external waterproofing of basements (including covered decks) and foundation walls.
Application
HydroBond 108-LM is typically applied as...
- Waterproofing of basement walls as part of Newton HydroBond System.
- Standalone waterproofing membrane for basement, foundation and earth-retained walls.
Description

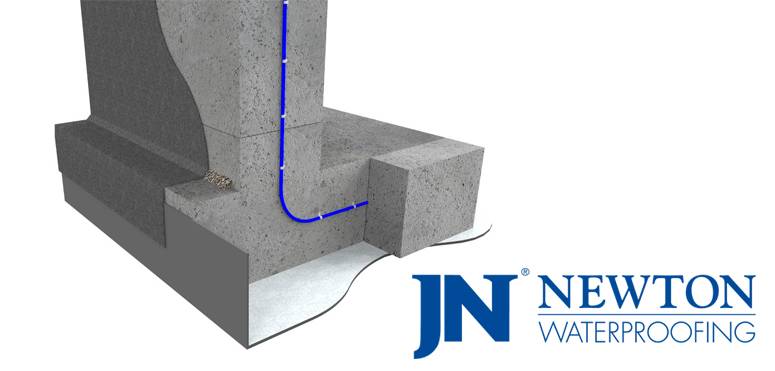

Normally specified as part of the HydroBond System in conjunction with HydroBond 403 Plus. The membrane can however also be used on its own, terminating to raft or strip foundations.
Extremely puncture resistant, with high elasticity and a 95% recovery memory, the membrane becomes fully engaged into the concrete surface to prevent water tracking and is suitable for all below-ground and earth-retained structures, ranging from domestic basements to the largest civil engineering projects.
HydroBond 108-LM can be used together with HydroBond 403 Plus to provide a complete waterproof envelope to the structure, forming a Type A (barrier) waterproofing solution suitable for Grades 1, 2 and 3 as defined by BS 8102: 2022.
Surface preparation is required, as is protection after application - consult manufacturer for details.
Features and benefits:
- Cold applied fully-bonded seamless membrane.
- Very elastic with no shrinkage.
- No primer required.
- Very quick to apply – up to 1000 m2 per day.
- Cost efficient – The low membrane price coupled with high application rates = a very low installed rate per square metre.
- Solvent free, non-toxic and odourless.
- Non-flammable – No VOCs.
- Chemically resistant.
- Highly radon resistant
Curing:
- Ready for next coat (over joints): After 30 minutes.
- To be kept rain-free: For 2 minutes.
- Ready for temporary foot traffic/ protection boards: After 30 minutes.
- Fully cured: After 30 minutes.
General information
Color | Black Brown |
Finish | Smooth Guidance for specification option: Thin matt black finish. |
Material | Liquid Guidance for specification option: Rubber waterproofing membrane. Rubber Guidance for specification option: Rubber waterproofing membrane. |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 60 year |
Uniclass | |
CAWS | J30/130 Cold-applied damp-proofing J30/10 Cold-applied damp-proofing |
Product range |
Specification data - Polymeric membranes
Material | Liquid. |
Third-party certification | BDA Agrement BAB-18-067-P-A-UK. |
Width (minimum) | 1 mm. |
Thickness (minimum) | 2 mm.Guidance for specification option: Requires an application rate of 3.6 litres/m². |
Colour | Brown/ Black. |
Reaction to fire classification | Euroclass B2. |
Radon gas diffusion resistance (2 mm membrane) | 2.4 x 10-11 M2/s. |
Impact resistance after UV aging - 1000 h - 10 mm | Pass. |
Water resistance - 21 days at 21°C | Watertight. |
Watertightness | 7bar. |
Water vapour diffusion resistance - Mu value | 36200 Mu. |
Water vapour diffusion resistance - Sd value | 72.4 m. |
Flexibility at low temperature at 0°C | Pass. |
Low temperature flexibility at -10°C | Pass. |
Dimensional stability at high temperature - no dripping | >70C. |
Resistance to fatigue movement - 1000 actions at -10°C | Pass. |
Crack bridging ability (no reinforcement) - Class CB2 | >2 mm. |
Resistance to static indentation (reinforced) | 250 N. |
Loading capability (no reinforcement) - Class1 | 0.06 MN/mm². |
Tensile strength and elongation at break (reinforced)(aged) | 0.58 N/mm². |
Tensile strength and elongation at break (reinforced) | 0.68 N/mm². |
Adhesion to concrete | 0.62 N/mm². |
Softening temperature | >130C. |
Density/Specific Gravity (no reinforcement) | 1.1. |
Membrane thickness - Horizontal RC elements | 3.0 mm. |
Membrane thickness - Radon barrier and Block and ICF walls | 2.0 mm. |
Membrane thickness - RC joints | 2.0 mm. |
Membrane thickness - RC walls | 1.0 mm. |
pH | 11 - 13. |
Viscosity - SSF at 25C | 15–20 seconds. |
Odour | None. |
Application temperature | +3 to +35C. |
Application method | Specialist machine. |
Application rate - Radon barrier | 3.2 l/m². |
Application rate - Block and ICF walls | 3.2 l/m². |
Application rate - Joints in concrete walls - band of 250 mm | 3.2 l/m². |
Application rate - RC walls - Waterproofing only | 1.6 l/m². |
Pot life | 3 months. |
Shelf life | 12 months. |
Density / Specific gravity | 1.1. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 4 |
 IFC | IFC2X3 | 2 |
Third party certifications
KIWA BDA
Newton HydroBond 108-LM - KIWA BDA
Literature
Newton HydroBond 108-LM BDA Certificate
Newton HydroBond 108-LM Membrane TDS
