Description

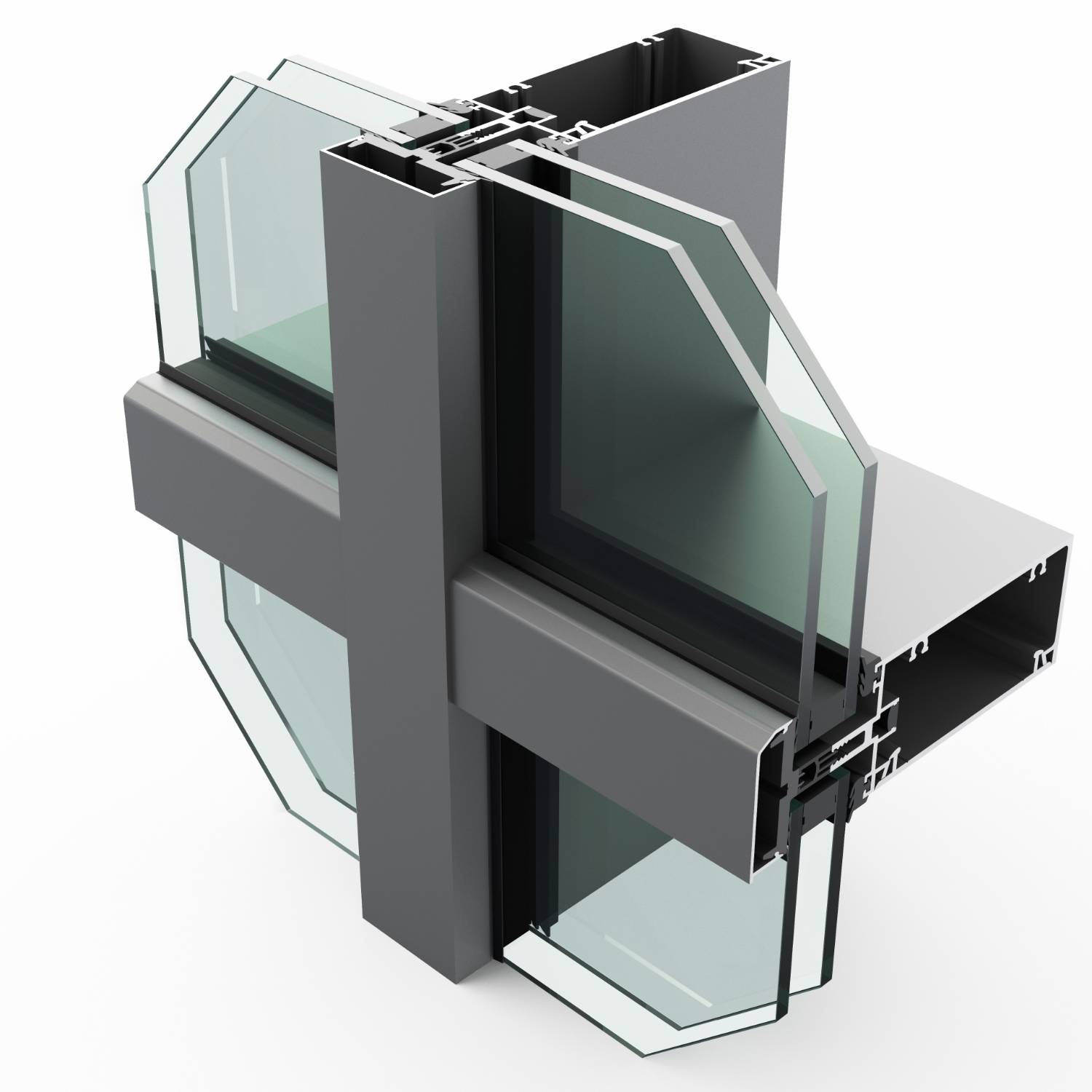

SCW+ Curtain Wall is a low rise system. Similar to the SCW but has been designed to achieve even greater weather and thermal performance, through larger thermal barriers and high performance gaskets.

A semi unitised, zone drained and pressure equalized and offers a slim 50 mm sightline, with a choice of three mullion and four transom depths.

The mullion and transoms are a channel and plate construction allowing it to be fabricated into ladders for quicker assembly on site. Compatible with the SD commercial doors, SPW300 and SPW600 windows, SMRF vents and SFG Ground floor treatment making an economical alternative to stick system curtain walls.

Construction:

SCW+ framing is constructed using mechanical methods at butt joints, assembled using stainless steel self-tapping screws into integral screw ports extruded into the body of the sections, directly through square cut adjoining component parts. A preparatory sealant is used on all metal to metal joints and gasket to gasket joints during assembly in line with good practice.

Vertical sections are designed to run through which enables individual panels to be made separately and assembled onsite for large or multi-panel frames.

General information
Material

Extruded aluminium: Aluminium alloy 6060 or 6063.T6 to BS EN 755-9

Polyamide thermal barriers are manufactured in accordance with PA66 GF25

Gaskets are manufactured in accordance with BS 3734

Uniclass 2015
Unitized curtain walling systems (Ss_25_10_20_90)Primary
Specification data - Unitized curtain walling systems
Product Reference

SCW+ Curtain Wall System

Internal framing member -
Material

Aluminium alloy to BS 1474: 1987

Finish

Anodized

Insert colour requirements, 25 microns (minimum), satin or polished finish available.

Mill finish

Polyester powder coated

Insert colour requirements, 40 microns standard and 60 microns available for marine environments.

External cover cap -
Material

Aluminium alloy to BS 1474: 1987

Finish

Anodized

Insert colour requirements, 25 microns (minimum), satin or polished finish available.

Mill finish

Polyester powder coated

Insert colour requirements, 40 microns standard and 60 microns available for marine environments.

Glazing

Insulating glass units, ___ mm thick

Single glazed panes, ___ mm thick

Glazing system

Dry glazed, tape

Dry glazed, gasket

Standard product features

Material:

  • Extruded aluminium: Aluminium alloy 6060 or 6063.T6 to BS EN 755-9.
  • Polyamide thermal barriers are manufactured in accordance with PA66 GF25.
  • Gaskets are manufactured in accordance with BS 3734.

U-Value:

Varies depending on type and size of system, consult manufacturer for exact details.

Performance:

Tested to CWCT specification sequence B and in accordance with BS EN 13830:

  • Air permeability: 600 Pa.
  • Watertightness: 600 Pa.
  • Wind resistance: 2400 Pa.

Product Options

Finish/ Colour:

Available in three finishes:

  • Polyester powder coating to BS EN 12206-1:2004, available in single or dual colour.
  • Anodized and anolok finishes to BS 3897:1991.
  • Mill finish.

Glazing:

Thickness options of 6–28 mm can be accommodated. Consult with Senior Architectural Systems for recommendations and details.

Glazing System:

The system is dry glazed to provide compressed seals for optimum performance. Consult with Senior Architectural Systems for recommendations.
