Application

Suitable for exterior or interior use in commercial or residential projects.

Description

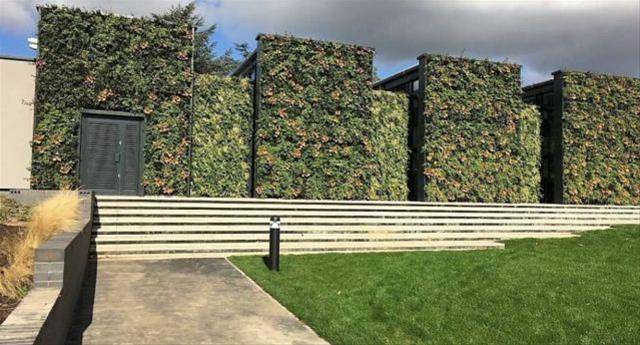

A lightweight, semi-hydroponic, modular panel living wall system. It is constructed from a patented, advanced Fytotextile® fabric. Each square metre holds up to 49 plants in individual pockets. Each panel incorporates a dripline to irrigate the plants through the system. Panels can be fitted to both flat and curved surfaces. The system is designed for rapid installation by a small specialist team, minimizing on-site disruption. No lengthy pre-growing is required as all walls are planted on site.

Can be used on commercial (non-residential) buildings over 18 m high and on residential or commercial buildings up to 18 m in height.

Features and benefits:

  • Breathable nature provides excellent aeration to the rootzone promoting strong growth.
  • Even water distribution to the root-zone, ensuring efficient use of water.
  • Optimal multi-layer structure; waterproof layer, irrigation layer and breathable layer.
  • Lightweight and fully flexible system; can be installed on curved surfaces.
  • Quick installation and rapid plant growth post install.
  • Available in nine standard panel sizes or bespoke to suit individual projects. Can be manufactured to any shape and size.
  • Ten-year product warranty.
  • Fire resistant to BS 476-6 and BS 476-7.

Applications:

Suitable for exterior or interior use in commercial or residential projects.

General information
Size

Module H1, 1 x 0.73 m

Module H2, 1 x 0.46 m

Module H3, 0.72 x 0.46 m

Module S1, 1 x 1 m

Module S2, 0.72 x 0.73 m

Module S3, 0.45 x 0.46 m

Module V1, 0.72 x 1 m

Module V2, 0.45 x 1 m

Module V3, 0.45 x 0.75 m

Features

Lightweight, quick installation, accessible irrigation, customizable to adapt to different forms, multilayered

Material

Inorganic, plastic non wooven fibres, andorganic fibres

Shape

Square

Rectangular

WarrantyDescription

10 years

Uniclass 2015
Modular unit vertical planting systems (Ss_45_40_95_54)Primary
Specification data - Modular unit vertical planting systems
Product Reference

Scotscape Fytotextile Living Wall System

Size

Module H1, 1 x 0.73 m

Module H2, 1 x 0.46 m

Module H3, 0.72 x 0.46 m

Module S1, 1 x 1 m

Module S2, 0.72 x 0.73 m

Module S3, 0.45 x 0.46 m

Module V1, 0.72 x 1 m

Module V2, 0.45 x 1 m

Module V3, 0.45 x 0.75 m

Vegetation

Insert requirement, contact manufacturer for information.

Irrigation

Automated

Recirculating

Standard product features

System weight:

35 kg/m² (structurally tested to support 530 kg/m²).

Product Options

Irrigation:

Automated: This system suits all walls large and small. The run-off from the irrigation cycles is connected to an outlet at the base of the wall. This is the most common set-up where drainage is not an issue.

Recirculating: This system suits locations where drainage is an issue. The water collected from the irrigation cycles is recirculated back through the system negating the need for a drainage outlet. Generally used on interior schemes, it can be installed with a freshwater top-up or the tank can be filled manually.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 2 2.1
IFC
- 1 2.1
