Schlüter®-DITRA-HEAT-MA

Schlüter-Systems Ltd

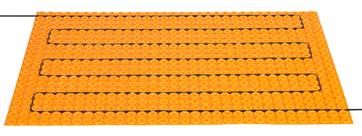

Schlüter-DITRA-HEAT is an orange polypropylene membrane with a cut-back stud structure and an anchoring fleece laminated on the underside, the system is designed for the attachment of Schlüter-DITRA-HEAT-E-HK heating cables to provide undertile heating.

Jump to:
+44 (0)1530 813396 www.schluterspecifier.co.uk
Description

Features:

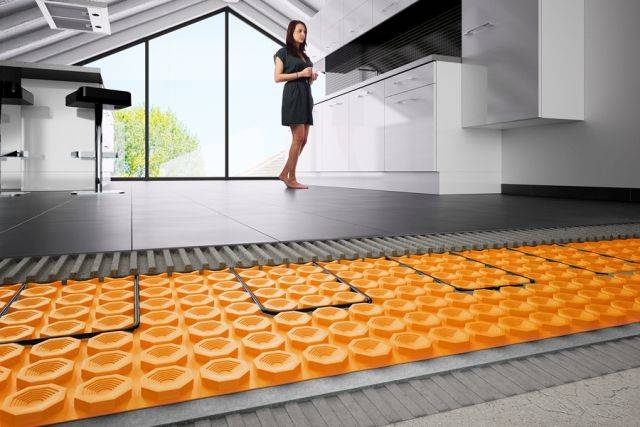

  • Schlüter-DITRA-HEAT is a universal substrate for tile coverings, which serves as an uncoupling layer and vapour pressure equalisation layer and is designed for the attachment of heating cables.
  • Schlüter-DITRA-HEAT is a polypropylene membrane with a cut-back stud structure. A fleece fabric is laminated on the underside of the mat. The thickness of the mat, including the stud structure, is approximately 5.5 mm.
  • Schlüter-DITRA-HEAT is non degrading, waterproof and can be used for crack bridging.
  • Schlüter-DITRA-HEAT is largely resistant to the effects of watery solutions, salts, acids and alkalis, many organic solvents, alcohols and oils.

Summary of functions:

  • Uncoupling: Schlüter-DITRA-HEAT uncouples the covering from the substrate and neutralises the stresses between the substrate and the tile covering that result from different deformation processes. The material effectively bridges tension cracks from the substrate and ensures that they are not transferred to the tile covering.
  • Load distribution: The stud structure of Schlüter-DITRA-HEAT with its thin bed adhesive layer transfers traffic loads on the tile covering directly to the substrate. As a result, tile coverings installed over Schlüter -DITRA-HEAT are highly durable (Minimum tile format 5 x 5 cm).
  • Bonded assembly: Due to the bond of the fleece fabric with the thin-bed adhesive over the substrate and the mechanical anchoring of the thin-bed adhesive in the cut-back stud structure, Schlüter-DITRA-HEAT creates a lasting bond of the tile covering with the substrate.

Areas of application:

  • Cementitious screeds.
  • Concrete.
  • Heated screeds.
  • Plywood panels that are specially treated to prevent the absorption of moisture. The thickness of the panel should be selected to ensure sufficient impact resistance in conjunction with a suitable support structure.
  • Hardwood floors provided the floorboards have tongue and groove connections, are sufficiently load bearing and are securely screwed down.

CE waterproofing declaration of performance available upon request.

Installation is preferred by Schlüter-Systems trained installers.

General information
Color

Yellow

Features

Non degrading, waterproof and crack bridging

Finish

Cut-back stud structure

Material

Polypropylene

Shape

Rectangular

Size

800 x 1000 x 5.5 mm

WarrantyDescription

5 years (Please contact Schlüter-Systems for further warranty information)

Uniclass 2015 Electric underfloor heating systems (Ss_60_40_92_27)
Specification data
Product Reference

Schlüter®-DITRA-HEAT-E

Type

Schlüter-DITRA-HEAT-E-RS

Digital floor thermostat set with remote sensor.

Schlüter-DITRA-HEAT-E-FF

Remote sensor for floor thermostat.

Schlüter-DITRA-HEAT-E-S1

Complete System Kits - 5.6 m² of which 3.8 m² to be heated.

Schlüter-DITRA-HEAT-E-S2

Complete System Kits - 8.0 m² of which 5.6 m² to be heated.

Heating cable

Schlüter-DITRA-HEAT-E-HK 12.07 mm length

For area of 1.1 m².

Schlüter-DITRA-HEAT-E-HK 17.66 mm length

For area of 1.6 m².

Schlüter-DITRA-HEAT-E-HK 23.77 mm length

For area of 2.2 m².

Schlüter-DITRA-HEAT-E-HK 29.87 mm length

For area of 2.7 m².

Schlüter-DITRA-HEAT-E-HK 35.97 mm length

For area of 3.3 m².

Schlüter-DITRA-HEAT-E-HK 41.56 mm length

For area of 3.8 m².

Schlüter-DITRA-HEAT-E-HK 47.67 mm length

For area of 4.4 m².

Schlüter-DITRA-HEAT-E-HK 53.77 mm length

For area of 5.0 m².

Schlüter-DITRA-HEAT-E-HK 59.87 mm length

For area of 5.5 m².

Schlüter-DITRA-HEAT-E-HK 71.57 mm length

For area of 6.6 m².

Schlüter-DITRA-HEAT-E-HK 83.77 mm length

For area of 7.7 m².

Schlüter-DITRA-HEAT-E-HK 95.47 mm length

For area of 8.8 m².

Schlüter-DITRA-HEAT-E-HK 107.67 mm length

For area of 10.0 m².

Standard product features

Schlüter-DITRA-HEAT-MA

Matting panel:

800 x 1000 mm = 0.8 m².

Schlüter-DITRA-HEAT

Rolled matting:

  • 1250 x 1000 mm = 12.5 m².
  • Nominal voltage: 230 Volt.
  • Output: 136 W/m².
  • Cold connection line: 1 x 4 m.
  • Minimum installation temperature: 5°.
  • Smallest bending radius: 6 x dA.
  • Resistor tolerance: -5% / +10%.
  • VDE-tested IEC 60800 Class M1.
  • Cold/heat transition Seamless, without shrink technology.
  • Insulation Fluoroplastic.
  • Fuse model IPX7.

Schlüter-DITRA-HEAT-E-RS

Digital floor thermostat set with remote sensor, consisting of:

  • Remote sensor (4.0 m).
  • Conduit for sensor wire (2.5 m).
  • Aluminium sensor sleeve.
  • Plastic junction box.
  • Installation instructions Schlüter-DITRA-HEAT-E.
  • Installation instructions for thermostat.

Schlüter-DITRA-HEAT-E-FF

Remote sensor for floor thermostat. Spare remote sensor for Schlüter-DITRAHEAT-E floor heating. It is installed, for example, as a backup if the remote sensor included in the floor temperature control set is directly embedded in the thin-bed mortar without using the conduit.

Product Options

Waterproofing Accessories (Mandatory):

Schlüter-KERDI-KEBA sealing band (12.5 cm minimum) is used to seal mat joints, installed centrally over the joint and solidly adhered with the waterproof sealant adhesive Schlüter-KERDI-COLL.

Schlüter-DITRA-HEAT-E-S1

Kits consist of:

  • Digital floor thermostat set Schlüter-DITRA-HEAT-E-RS.
  • Heating cable Schlüter-DITRA-HEAT-HK for heating an area of 3.8 m².
  • 7 x uncoupling mat Schlüter-DITRA-HEAT-MA for an area of 5.6 m².

Schlüter-DITRA-HEAT-E-S2

Kits consist of:

  • Digital floor thermostat set Schlüter-DITRA-HEAT-E-RS.
  • Heating cable Schlüter-DITRA-HEAT-HK for heating an area of 5.5 m².
  • 10 x uncoupling mat Schlüter-DITRA-HEAT-MA for an area of 8 m².
