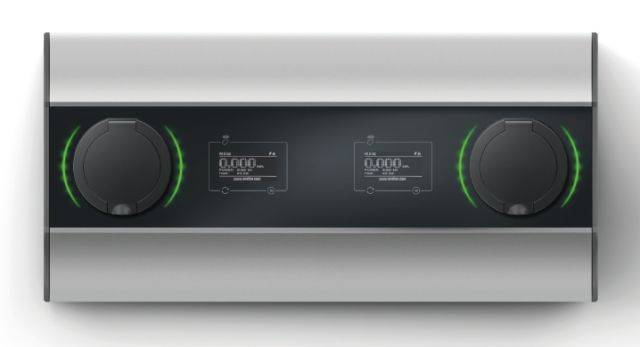

SCATALO DUO Power - Wall Mounted
Wall-mounted, double outlet electric vehicle charger with online functionality.
Wall-mounted, double outlet electric vehicle charger with online functionality.
Features and benefits:
- Charging unit finished in brushed aluminium with black Perspex panels.
- Robust and aesthetically pleasing.
- Suitable for use in all environments.
- Supports single-phase and three-phase power connection, with output from TBC kW per connector.
- Load-balancing option: The system automatically down-rates and limits the total consumption of the clustered charging stations according to the maximum set on the master unit.
- Available as single outlet and floor-standing units (specified separately).
Smart functionality:
Open Charge Point Protocol (OCPP)-compatible, for connection to the Sevadis Cloud online management system, or to OCPP platforms provided by others.
Communications to the internet are available via Wi-Fi, GSM or Ethernet, depending on the availability at each location. Can also be configured with optional integrated load-balancing for ensuring that the incoming electricity supply is not over-loaded from excessive use of the chargers when in a cluster.
| Size | 250 x 530 x 130 mmHeight x length x width. |
| Finish | Anodized aluminium and plexiglass |
| Color | Silver/Black or Black/Black |
| Features | Smart online functionality, OCPP-compatible, inbuilt Dynamic Load Balancing available, increase/decrease kW output if/when required, upgrade offline to smart online system if/when required. Utlises master/slave daisy chain arrangement for communication, reducing installation costs |
| Material | Anodized aluminium and plexiglass |
| WarrantyDescription | Onsite 24 month warranty |
| Uniclass 2015 |
| Product Reference | Scatalo Duo Power - Wall Mounted |
| Standards | Consult manufacturer |
| Mode | 3Refer to BS 7671, Part 2. |
| Input voltage | 6 x 230 V/ 400 V a.c. |
| Input current | 16 A32 A |
| Rated frequency | 50 Hz60 Hz |
| Outlet type | Type 2, standard sockets 2 x 32 A/ 400 V a.c. according to EN 62196-1 |
| Power output | 2–22 kW |
| Mounting | Wall-mounted |
| Impact protection (minimum) | 10 |
| Ingress protection (minimum) | 54 |
| Accessories | N/A |
| Size | 250 x 530 x 130 mmHeight x length x width. |
| Colour | Silver/ BlackBlack/ Black |
| Finish | Anodized aluminium and plexiglass |
| Power supply cable | Suggested minimal cross-section: 2.5 mm² (16 A nominal current); 6.0 mm² (32 A nominal current) |
| Network type | TNTTITOn special request; consult manufacturer for details. |
| Overvoltage | Category III according to EN 60664-1 |
| Short time withstand current | Effective value <6 kA according to EN 61439-1 |
| Residual current device | Integral part of the RCD device A <30 mA a.c |
| Protection class | Class 1 |
| Weight | 5 kg |
| Interfaces | - |
| Ethernet connection | RJ-45, 10/100Base-T(X) |
| GSM | 2G (850/ 900/ 1800/ 1900 MHz); Micro SIM card |
| WiFi | 802.11 big/n, 2.4 GHz; maximum data transfer speed: 150 MBps; transmitter capacity: 21 dB dB |
| RFID | MIFARE cards in compliance with ISO 14443 |
| Working temperature | -20 to +55°C |
| Acceptable relative air humidity | 5–95% |
| Altitude(maximum) | 2000 m |
