Description

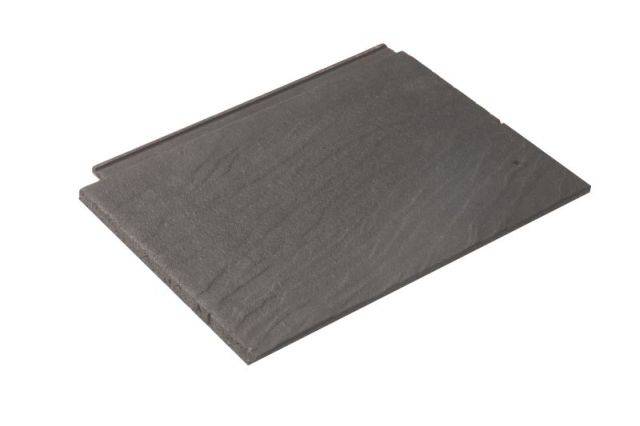

Interlocking concrete slate effect tile available in two classic dark colours with a defined, riven surface and chamfered edges. It matches the appearance of authentic quarried slate with the convenience and performance of a machine-made interlocking slate, minimum pitch of 17.5°.

Batten size:

  • 38 x 25 mm for up to 450 mm support spacing.
  • 50 x 25 mm for up to 600 mm support spacing.

Tile head-lap:

  • Minimum: 17.5–22.4°: 100 mm; ≥22.5°: 75 mm.
  • Maximum: 125 mm.

Features:

  • Riven surface, chamfered side edges.
  • Thin front edge replicates features of natural products.

General information
Features

Riven surface, chamfered side edges

Thin front edge replicates features of natural products

Material

Concrete

Size

418 x 330 mm

Uniclass 2015
Concrete interlocking tiles (Pr_25_93_72_17)Primary
Specification data - Concrete interlocking tiles
Product Reference

Saxon Slate 10 - 4991

Colour

Black (63)

Blue (64)

Standard product features

Size:

418 x 330 mm.

Material:

Concrete.

Pitch:

  • Minimum: 100 mm headlap: 17.5°; 75 mm headlap: 22.5°.
  • Maximum: 90°.

Gauge:

  • Minimum: 293 mm.
  • Maximum: <22.5°: 318 mm; ≥22.5°: 343 mm.

Linear cover:

300 mm.

Covering capacity:

9.7 tiles/m².

Weight (at maximum gauge):

45 kg/m².
