Application

  • Applications include showers or wet rooms, areas with private and commercial use indoors, with direct contact with process and cleaning water.
  • The base must be sufficiently load bearing and even.

The bench is delivered in four parts: Bench element, substructure element and two BA 6 (as the cover plate or compensating panels).

Description

wedi Sanoasa benches are pre-fabricated and suitable for individual tiling. Custom designs are also available upon request - consult manufacturer for information.

Sanoasa bench 1 - Straight:

Bench with a right-angled front edge to the seating element. If this seating is combined with the straight edge of the substructure element, the result is an easy to tile and level front edge. As a design variant, the seating area can also be easily fitted so that it protrudes. The Fundo Riolito Discreto wall drain can be integrated into the support element. Rotating the support element provides further design options.

Sanoasa bench 2 - Angled:

Distinguished by an angled front edge on the seat, resulting in a flush transition to the equally angled support element. This bench variant also enables further design options when rotating the support element.

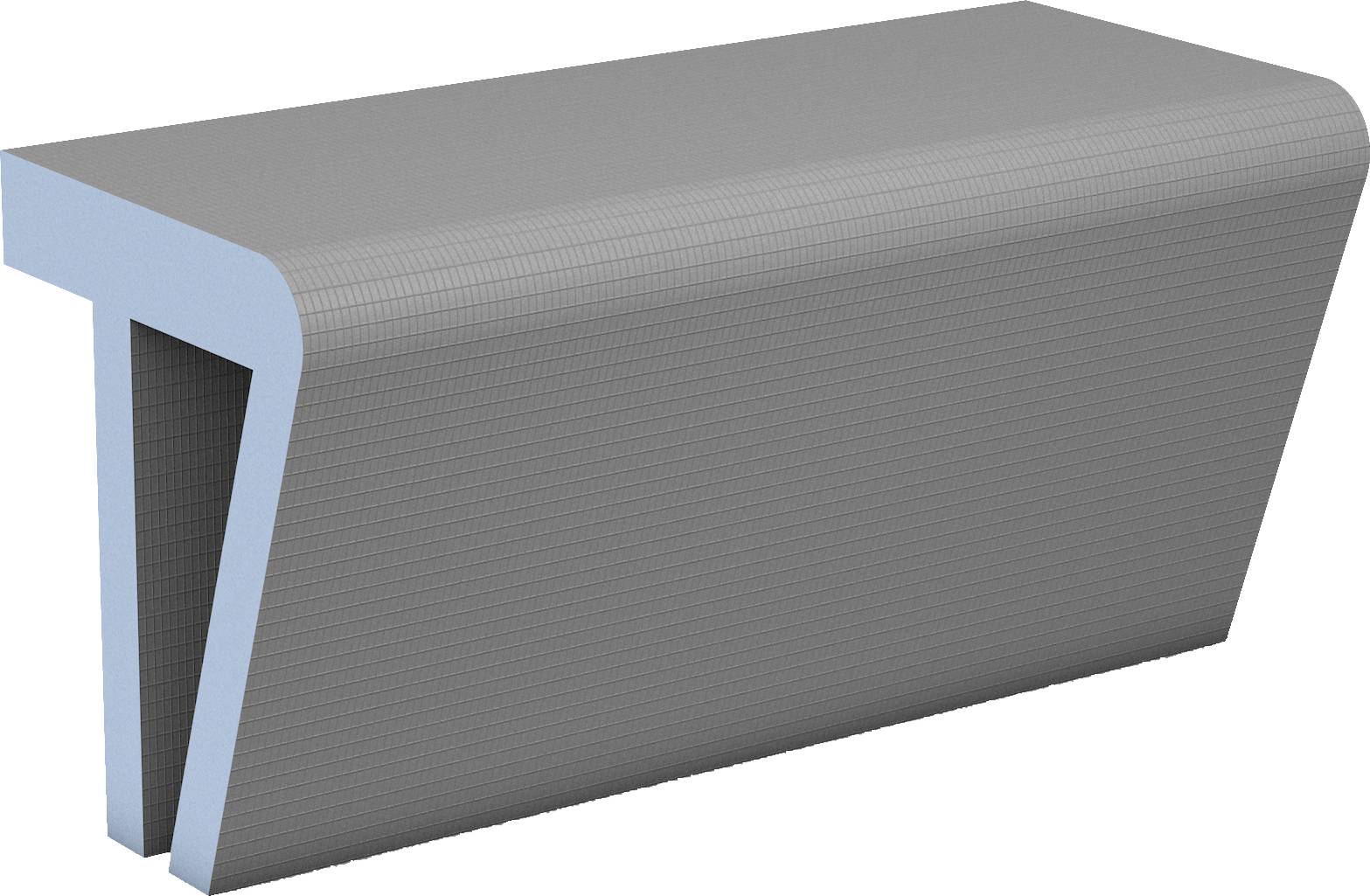

Sanoasa bench 3 - Rounded:

The front edge is rounded off so that there is a flush transition with both the angled and the vertical sides of the support element.

Features and benefits:

  • Watertight.
  • Stable.
  • Lightweight.
  • 100% waterproof extruded polystyrene insulation (XPS) core.
  • Available in the widths 900 and 1200 mm.
  • Three different edge finishes to choose from.
  • Width and depth can be shortened.
  • Can be combined with the attachment element Fundo Riolito Discreto.
  • CO2-foamed, extruded polystyrene rigid foam with closed cell structure and flame-retardant additive.
  • The polystyrene rigid foam is hydrochlorofluorocarbon (HCFC) and chlorofluorocarbon (CFC) free.

Applications:

  • Applications include showers or wet rooms, areas with private and commercial use indoors, with direct contact with process and cleaning water.
  • The base must be sufficiently load bearing and even.

The bench is delivered in four parts: Bench element, substructure element and two BA 6 (as the cover plate or compensating panels).

Ancillary products:

  • wedi 610 is required for adhesion.
  • Joint reinforcement tape is required at the wall connections.

General information
Color

Grey

Features

Watertight, Stable, Lightweight, available in the widths 90 and 120 cm, three different edge finishes to choose from, width and depth can be shortened, can be combined with the attachment element Fundo Riolito Discreto

Finish

resistant and glass fibre reinforced cement coating

Material

A waterproof extruded polystyrene rigid foam core with a special, resistant and glass, fibre reinforced cement coating

Shape

Rounded

Size

900 x 380 x 454 mm

1200 x 380 x 454 mm

WarrantyDescription

available on request

Uniclass 2015 Shower seats (Pr_40_20_06_83)
Specification data
Product Reference

Sanoasa Bench 1, Straight, Length: 900 mm

Weight: 9.3 kg.

Sanoasa Bench 1, Straight, Length: 1200 mm

Weight: 10.4 kg.

Sanoasa Bench 2, Angled, Length: 900 mm

Weight: 9.3 kg.

Sanoasa Bench 2, Angled, Length: 1200 mm

Weight: 10.4 kg.

Sanoasa Bench 3, Rounded, Length: 900 mm

Weight: 9.3 kg.

Sanoasa Bench 3, Rounded, Length: 1200 mm

Weight: 10.4 kg.

Accessories

None

Building board

Various options available, consult literature and insert requirements.

Fundo Plano

Fundo Plano Linea

Fundo Primo

Fundo Riofino

Fundo Riolito

Fundo Riolito Discreto

Fundo Riolito Neo

Joint reinforcement tape

wedi 320 tile adhesive

wedi 610 – adhesive sealant

wedi border Insulating strips

wedi building board XL

Various options available, consult literature and insert requirements.

wedi building board XXL

Various options available, consult literature and insert requirements.

wedi Nonstep Pro

Various options available, consult literature and insert requirements.

wedi tools sealing tape

Standard product features

Technical characteristics:

  • Height: 454 mm.
  • Depth: 380 mm.
  • Maximum load: 250 kg.
  • Fire behaviour (EN 13501): Class E.

- Raw foam building board systems:

  • Type: Extruded polystyrene (XPS) rigid form core.
  • Long-term compressive strength (50 years) ≤2% compression (EN 1606): 0.08 N/mm².
  • Compressive resistance or compressive strength at 10% compression (EN 826): 0.25 N/mm².
  • Associated module of elasticity (EN 826): 10–18 N/mm².
  • Thermal conductivity (EN 13164): 0.036 W/mK.
  • Tensile strength (EN 1607): 0.45 N/mm².
  • Shearing resistance (EN 12090): 0.2 N/mm².
  • Shear modulus (EN 12090): 7 N/mm².
  • Bulk density (EN 1602): 32 kg/m³.
  • Resistance to water vapour diffusion (EN 12086): 100 µ.
  • Water absorption under long-term immersion (EN 12087): ≤1.5% by volume.
  • Capillary action: 0.
  • Linear coefficient of thermal expansion: 0.07 mm/mK.
  • Temperature limits: -50 to +75°C.
  • Carbon dioxide propellant (Global Warming Potential, GWP) value: 1.
