Sandringham 21 Handrinse Washbasin

Sandringham 21 Handrinse Washbasin

Armitage Shanks

Sandringham 21 washbasins in vitreous china, 45 cm and corner washbasins also available. The 35 cm washbasin is suitable for restricted spaces, and is supplied in 1 or 2 taphole for wall fixing only.

Jump to:
+44 (0)870 122 8822 www.idealspec.co.uk
Description

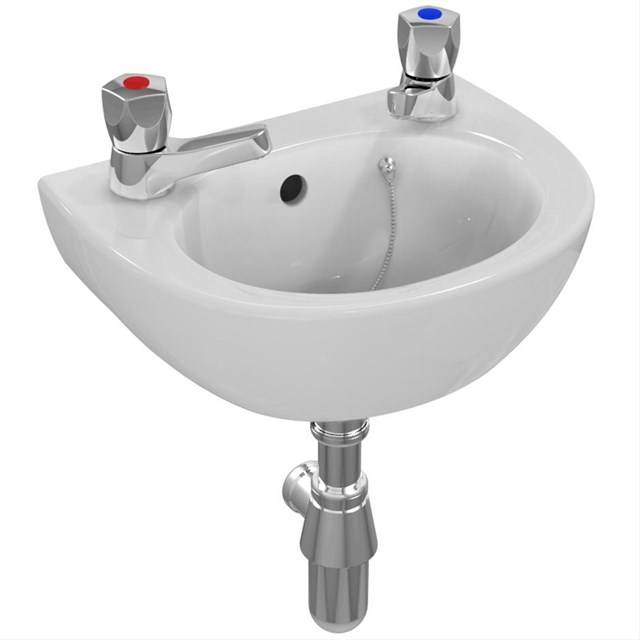

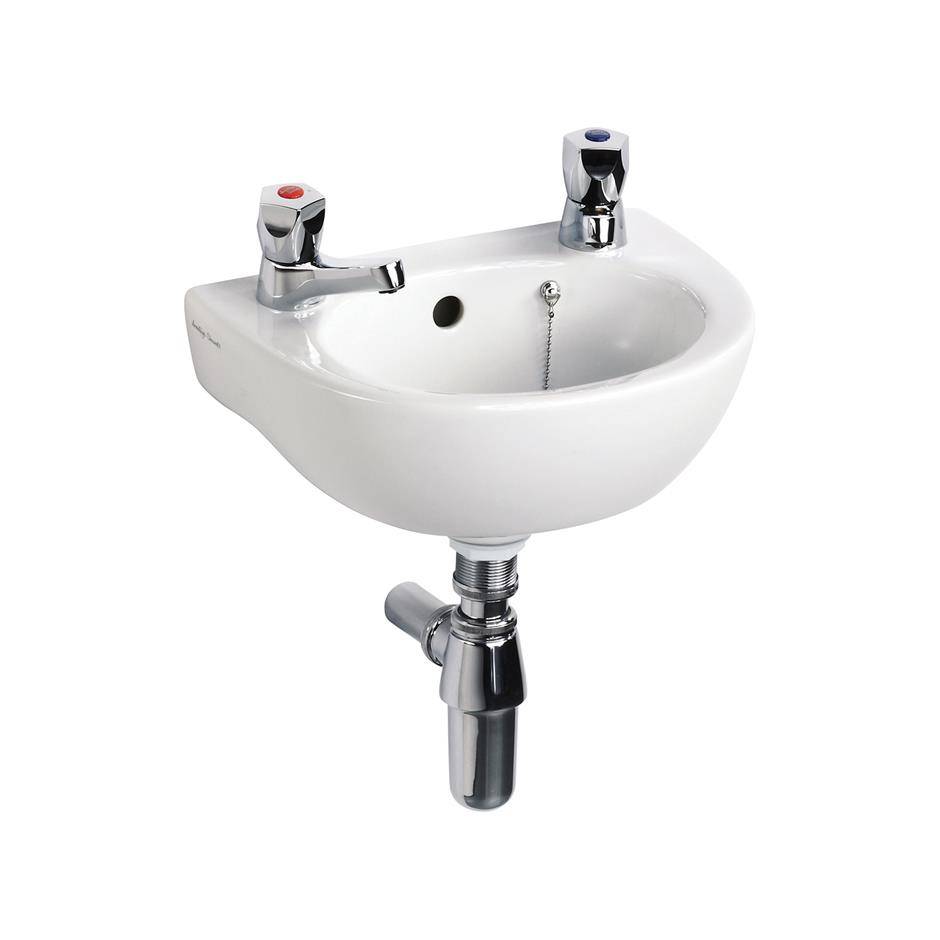

Sandringham 21 handrinse washbasin 35cm, 2 taphole, with overflow and chainstay hole

  • Domestic and commercial use
  • Space saving design
  • Left or Right hand taphole options
  • Hygenic no overflow version

General information

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Color

White

Features

Handrinse washbasin, 35 cm 2 tapholes no overflow or chain

Handrinse washbasin, 35 cm 2 tapholes

Handrinse washbasin, 35 cm lh taphole

Handrinse washbasin, 35 cm rh taphole

Material

Vitreous china

Shape

Sculptured

Size

350 x 260 x 160 mm

WarrantyDescription

Manufacturers warranty

Uniclass 2015

Pr_40_20_96_63 Pedestal washbasinsPrimary
Specification data - Pedestal washbasins

Product Reference

E8930 - Sandringham 21 35cm Handrinse Washbasin

Sandringham 21 Handrinse Washbasin, 35cm 2 Tapholes

E8928 - Sandringham 21 Handrinse 35cm Washbasin

Sandringham 21 Handrinse Washbasin, 35cm RH Taphole

E8929 - Sandringham 21 Handrinse 35cm Washbasin

Sandringham 21 Handrinse Washbasin, 35cm LH Taphole

S8150 - Sandringham 21 Handrinse 35cm Washbasin

Sandringham 21 Handrinse Washbasin, 35cm 2 Tapholes No Overflow or Chain

Finish

Chrome - (AA)

Neutral / No Finish - (67)

White - (01)

Standard product features

WashBasin:

  • Material: Vitreous China
  • Weight: 6.50 kg

Brassware:

  • Material: Chrome Plated Brass
  • Weight: 1.05 kg
  • Flowrate: 13.00 lpm @ 3bar

Waste:

  • Material: Chrome Plated Plastic
  • Weight: 0.08 kg

Trap:

  • Material: Chrome Plated Metal
  • Weight: 0.54 kg

Washbasin Support Bracket:

  • Material: Metal
  • Weight: 0.10 kg

Product Options

Washbasin wall mounted using E5010 wall hangers and screwed to wall using 2 screws (not supplied) or E0157 wall fixing bolts and screwed to wall using 2 screws (not supplied).

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2013 1 1.2
Download now from NBS National BIM Library
