Saige Gripsure Solid Decking Boards

Verified by manufacturer 30 days ago

Solid Grooved

SAiGE Longlife Decking Variant:
Third party certifications:
  • Certificate of Compliance

    Certificate type

  • Health & Safety Accreditation

    Health & Safety Accreditation

    Certificate type

  • Certificate of constancy of performance

    Certificate type

  • BS 7976-2

    Certificate type

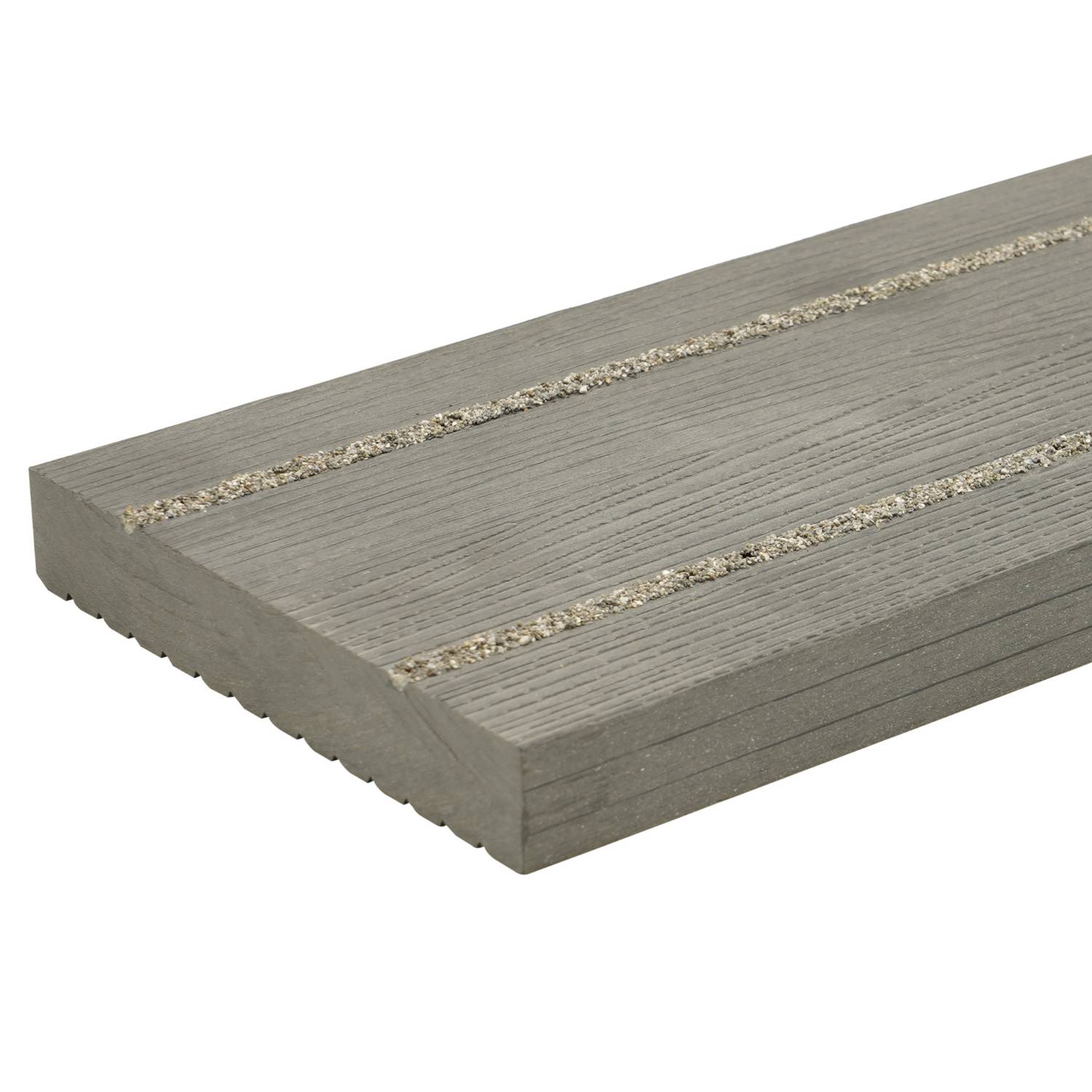

Saige's solid decking boards with Gripsure's non-slip grip for assured safety.

Jump to:
+44 (0)178 721 576 Website

Application

These products are a suitable long life, low maintenance alternative to timber options. Suitable for commercial applications including public walkways, boardwalks, wetland walkways (due to its very low water absorption rates), bridges, ramps, steps and all outside areas requiring a little more assurance.

Description

Saige have teamed up with Gripsure to create a composite non-slip option for those looking for an even higher level of anti-slip.


The contemporary composite decking range offers a long-lasting, hard-wearing product designed to outlive traditional timber alternatives. With a choice of grooved or deep grain finish in coffee, charcoal and grey, it is suitable for contemporary and traditional projects.


Features and benefits:

  • Non-slip properties.
  • High tensile strength.
  • Mould and fungus resistant due to low water absorption rates of 0.2%.
  • Boards will not warp or rot.
  • Hard wearing.
  • Low maintenance.
  • Splinter-free.
  • Easy to install.
  • Colour coded M4.5 x 65 mm SAiGEFiX carbon steel screws for fixing (suitable for aluminium and timber subframes).
  • Square edge boards.
  • Same product all the way through.
  • Approximately 90% recycled material.
  • Ten-year warranty.


Accreditations:

  • SGS test reports available, see manufacturer's literature for details.
  • Thermal expansion testing.
  • Anti-slip testing results.

General information

Color

Black

Beige

Grey

Brown

Finish

Anti-slip

Material

Composite

Shape

Rectangle

Length

3600 mm

Width

143 mm

Height

23 mm

Warranty description

Ten year

Uniclass

Pr_25_71_97_94 Wood-plastics composite deck boardsPrimary

CAWS

Q55/110 Deck

Q55/380 Deck boards

Specification data - Wood-plastics composite deck boards

Profile

Grooved with anti-slip; insert strip.

Finished size

-

Section

143 x 23 mm.

Length

3.6 m.

Features

Colour coded screws.

Guidance for specification option:

Solid decking board screws: M4.5 x 65 mm self-drilling carbon steel screws – available in Grey, Charcoal and Brown colour.

Recycled content

90%.

Deck board finish

Deep embossed.

Weight

17 kg.

Manufacturer guidance

Per board.

Board colour

Grey.

Coffee.

Charcoal.

Edge

Square.

Flexural strength

55.7 MPa (300 mm centres).
56.6 MPa (350 mm centres).
56.5 MPa (400 mm centres).

Manufacturer guidance

To EN ISO 178:2019 method A.

Tensile strength

28.4 MPa.

Manufacturer guidance

To EN ISO 527-1:2019.

Tensile Modulus

4660 MPa.

Manufacturer guidance

To EN ISO 527-1:2019 and EN ISO 527-1:2012.

Slip resistance value

Grooved side: 70 dry/ 54 wet.
Grained side: 88 dry/ 42 wet.

Manufacturer guidance

To BS 7976-2:2002+A1:2013.

Water absorption

0.20%.

Manufacturer guidance

To EN 317:1993.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Unable to assess


Recyclability

-

Manufacturer guidance

Non-slip strip will not be recyclable within the decking - Decking can be recycled at source

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

Certificate of Compliance

Certificate of Compliance

Constructionline

Health & Safety Accreditation

Health & Safety Accreditation

PQS Accreditation SSIP

Certificate of constancy of performance

Certificate of constancy of performance

CTE - Thermal Expansion Test Saige Gripsure

BS 7976-2

BS 7976-2

Saige Gripsure Anti-Slip Test Results Flat Barefoot

BS 7976-2

BS 7976-2

Saige Gripsure Anti-Slip Test Results Flat Shod

Literature

Saige Contemporary Decking Specification Sheet

Saige Contemporary Decking Specification Sheet

Saige Solid & Rustic Decking Installation Guide

Saige Solid & Rustic Decking Installation Guide

Saige Brochure

Saige Brochure

Case studies

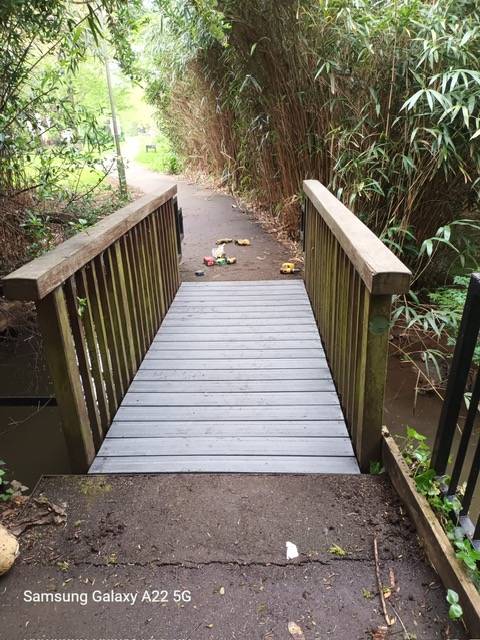

Saige Gripsure Gogmore Farmpark, Chertsey

Saige Gripsure Gogmore Farmpark, Chertsey
