Safety Lever Handles - DG.114.DR

Verified by manufacturer 6 months ago

3v Architectural Hardware Ltd

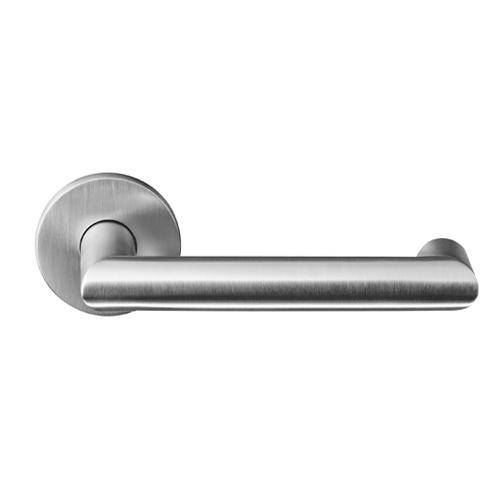

Satin stainless steel safety lever handles on 55 mm diameter concealed fixing spring assisted ball bearing roses.

Jump to:
+44 (0)1344 623600 Website

Application

Suitable for a wide range of applications including residential, commercial, retail, education and healthcare.

Description

Satin stainless steel safety lever handles on 55 mm diameter x 10 mm concealed fixing spring assisted ball bearing roses.


Features and benefits:


  • Special roller race ball bearing, spring assisted self centering
  • Warp resistant solid square spindle of hardened and galvanized steel
  • Precise finished brushed satin stainless steel, formed surface, secure fitting back to back TORX® fixing bolts
  • Can be produced in a variety of finishes depending on the application
  • To suit door thickness from 35-54 mm

General information

Color

Black

Guidance for specification option:

Flat matt black.

Bronze

Guidance for specification option:

Light and dark bronze.

Gold

Silver

Other

Guidance for specification option:

Colour coated.

Finish

Satin

Guidance for specification option:

Stainless steel and brass.

Polished

Guidance for specification option:

Stainless steel and brass.

PVD

Matt

Antiqued

Guidance for specification option:

Brass.

Material

Stainless steel

Bronze

Brass

Shape

Other

Length

140 mm

Width

40 mm

Height

60 mm

Warranty description

25 year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/38 Lever handles

P21/610 Lever handles

Specification data - Door lever handle sets

Style

Round pattern with return to door.

Size

20 mm diameter.

Material and finish

Satin stainless steel.

Polished stainless steel.

Light bronze.

Dark bronze.

Flat matt black.

Polished brass.

Satin brass.

Antique brass.

Colour coated.

PVD.

Colour

-

Manufacturer guidance

Colour coated finish: Consult manufacturer and insert requirements.

Mounting

Sprung rose with hidden screw fixing.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg·CO₂e/kg

Self declared

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
