Safegrate Grating

Verified by manufacturer 2 months ago

Lionweld Kennedy Flooring Ltd

Heavy duty grating/ open mesh flooring capable of withstanding vehicle loadings.

Jump to:
BIM object icon
+44 (0)1642 245151 Website

Application

Used in areas where vehicles are likely to pass through, including:

  • Vehicle washing areas.
  • Loading bays.
  • Boat landings.
  • Offshore oil rigs (where trolleys can be pulled across the grating).
  • Data centres.

Description

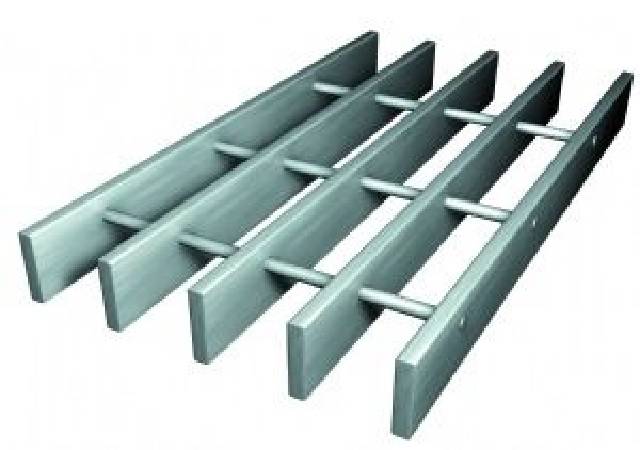

Heavy duty steel grating/ open mesh flooring with a 9 mm diameter round bar passing through the flooring at 100 mm intervals, and then spot welded on one side.


Features and benefits:

  • Capable of withstanding vehicle loadings - has a high lateral restraint when subjected to breaking and acceleration motions.
  • Available in a variety of mesh sizes.

General information

Finish

Galvanized

Unfinished

Material

Steel

Shape

Rectangle

Uniclass

Pr_25_96_30_31 Footway gratingsPrimary

CAWS

L30/460 Walkways

Q10/312 Footway gratings

Product range

Steel / Gratings

Specification data - Footway gratings

Material

Steel.

Accessories

Not required.

Welded pad.

For areas subject to vibration or lateral forces.

Panel

Consult manufacturer and insert requirements.

-

Bearing bar depth

30-100 mm. Consult manufacturer and insert requirements.

-

Surface

Consult manufacturer and insert requirements.

-

LoadBearingCapacity

Consult manufacturer and insert requirements.

-

Mesh size

20 x 100 x 5 mm.

25 x 100 x 6 mm.

33 x 100 x 8 mm.

40 x 100 x 10 mm.

Environmental information

Country of product manufacture

United Kingdom

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1
