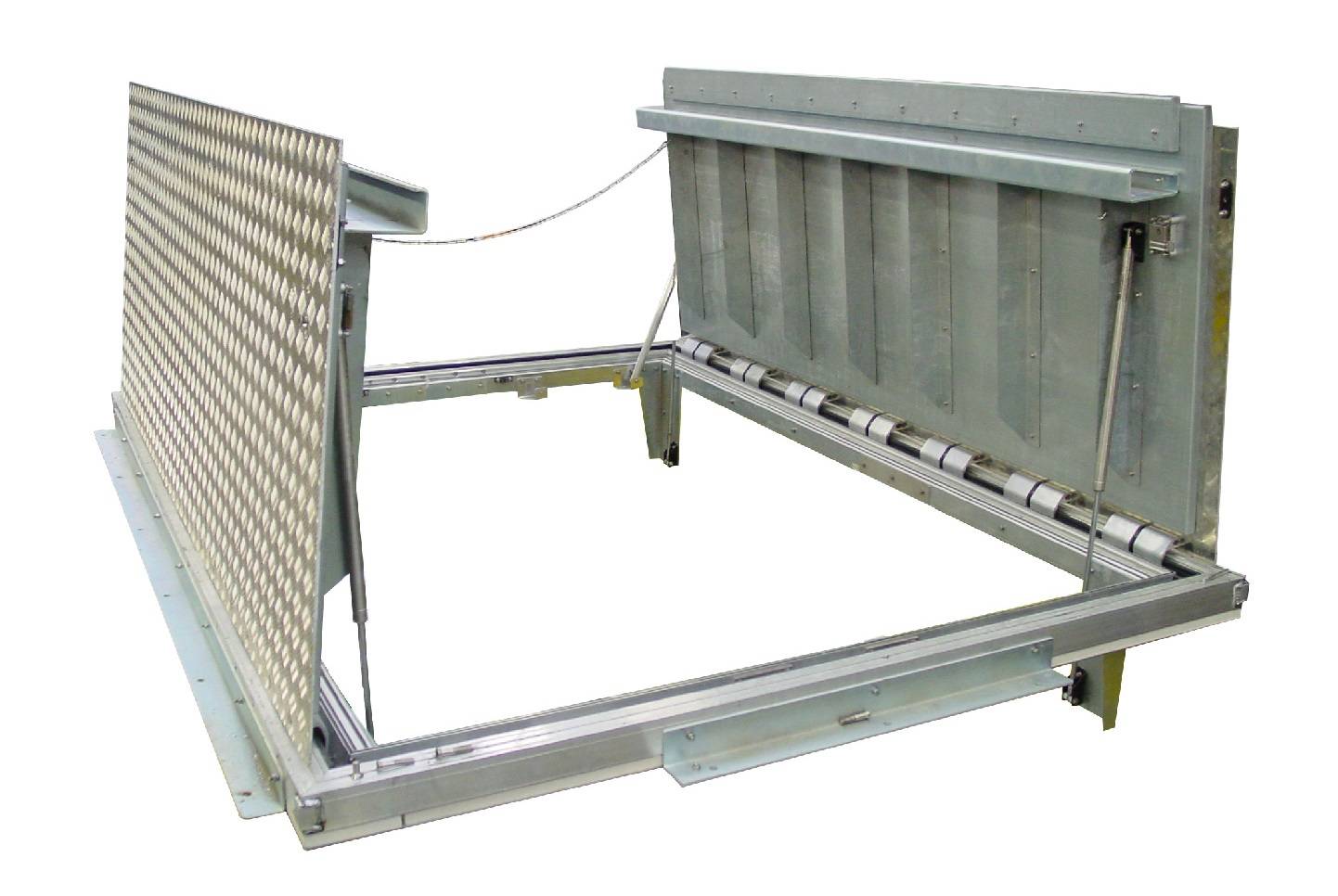

SAC Flush (Double Leaf) Floor Hatch
Surespan SAC flush access covers have been designed for a wide range of applications and industries.
Description
Flush access cover designed for a wide range of applications and industries, including water treatment, loading bays, plant access and emergency exits. Manufactured in magnesium alloy with marine alloy frames, or alternatively stainless steel. The access cover includes a gas spring-assisted aluminium tread plate lid as standard, which locks in the open position with a safety hold-open stay to prevent accidental closure.
Features:
- Custom-made to any size.
- Rated up to FACTA Class E vehicle loading.
- High-grade magnesium alloy tread plate lid.
- Incorporates double unbroken EPDM seals.
- Gas spring-assisted operation as standard.
- L03 standard tee-key lock.
- Hold-open stay – prevents accidental closure.
General information
Size | 600 x 600 mm 750 x 750 mm 900 x 750 mm 900 x 900 mm 1000 x 1000 mm |
Color | Natural, Polyester powder coated (PC/RAL colours available) |
Features | Integral drainage channel, hold open stay and unique foldaway hinges |
Material | Aluminium marine alloy frame |
Shape | Rectangular |
WarrantyDescription | 5 years |
Uniclass 2015 | |
CAWS | L20/630 Hatches P30/301 Access covers/ manhole tops and frames |
Specification data - Floor hatches
Product Reference | SAC |
Size | 600 x 600 mm750 x 750 mm900 x 750 mm900 x 900 mm1000 x 1000 mm1200 x 1200 mm1200 x 1800 mm1500 x 1500 mmSpecial orderInsert requirement. |
FrameMaterial | Marine alloyStandard. Stainless steel |
Colour/ Finish | Polyester powder-coatedInsert RAL colour requirement. Self-finishedStandard. |
Loading class | Not requiredFACTA Class AFACTA Class AAFACTA Class AAAFACTA Class BFACTA Class CFACTA Class DFACTA Class E |
FireRating | Not requiredOne hourTwo hoursThree hoursFour hours |
Sound reduction | 25 dBStandard. 45 dB |
Operation | 24 V electric motorsGas springsStandard. Hydraulic |
Locking | NoneCAML Additional camlock to ensure positive sealingEIM Electrical interlockMicro-switch. ELB Electronic locking box linked to a BMS systemL03 Standard cablock and tee-keyStandard. L07C Concealed deadlock with cover plateLB Locking padlock boxProvides additional security. PRH Emergency panic-release handleSB Shoot bolt lockFor internal use only. |
Accessories | NoneExternal flexible hose adaptorGlass viewing windowInternal flexible hose adaptorRetractable ZIP ladderTo suit floor-to-ceiling height of up to 3.5 m. |
Standard product features | Hinges: Foldaway hinges, incorporating double unbroken EPDM seals to help prevent the ingress of dirt and moisture. |
Product Options | Frame material: - Marine alloy: The access cover is not watertight but is self-draining. Any water passing the seals will be dispersed via an integral drainage channel, which is fitted with an optional internal or external ¾-inch flexible hose adaptor (for connection to drain by others). |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 4 | 1.3 |
 Revit | Revit 2016 | 6 | 2.0 |
