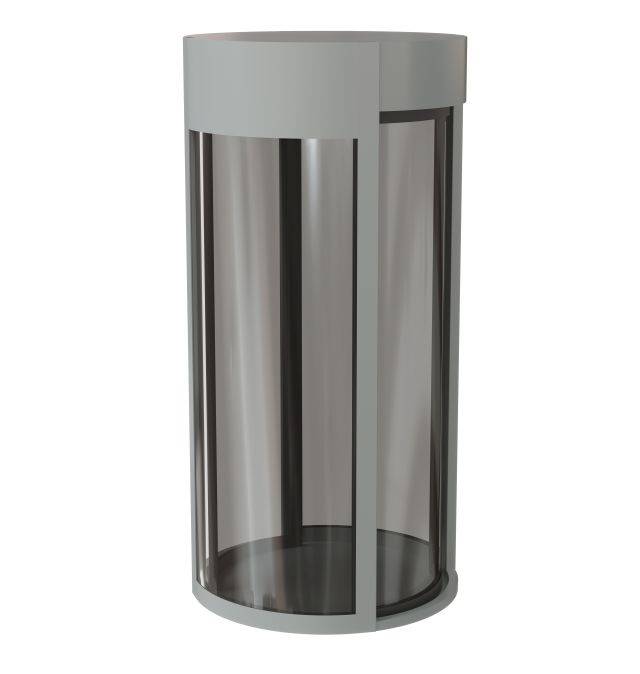

SA247 | SA248 | SA249 Cylinder Security Portal

Safetell Ltd

Circle based security portals with single person passage checking system and abandoned object detection system (floor).

Jump to:
+44 (0)1322 223233 www.safetell.co.uk
Application

Suitable areas of application include:

  • Airports.
  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Leisure centres.
  • Secure areas.

Description

High security access control feature means the second door opens only if access controls give a positive result.

Features and benefits:

  • 40/10 steel pressure bent sheet.
  • SA247 and SA248 pre-built, SA249 removable structure.
  • Weighing floor system (abandoned object detection, weight higher than 200 g).
  • Single person detection (anti-hostage system).
  • Paint finish: embossed, according to RAL colour scale or stainless steel covering.
  • Traffic Light Panels and Multilingual automated voiceover for transit communications.
  • Portal Console with digital display and menu-guided commands.
  • Throughput: dependant on model and accessories.

Application:

Suitable areas of application include:

  • Airports.
  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Leisure centres.
  • Secure areas.

General information
Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

L20/490 Automatic doors

Specification data - Sliding door and partition sets
Product Reference

SA247.60 Cylinder Security Portal

1050 x 2400 mm (diameter x h), EN1063 BR3/S, EN365 P6B glass certification.

SA248.60 Cylinder Security Portal

1050 x 2350 mm (diameter x h), EN1063 BR2/S, EN365 P6B glass certification.

SA248.70 Cylinder Security Portal

1150 x 2350 mm (diameter x h), EN1063 BR2/S, EN365 P6B glass certification.

SA249.S70 Cylinder Security Portal

1500 x 2400 mm (diameter x h), EN1063 BR2/S, EN365 P6B glass certification.

Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Accessories

None

Anti-masking system face detection

Biometric registration system - Biobank

Camera

Card reader

CEIA metal detector - 02PN8HIPE

CEIA metal detector - 02PN8HIPE/CF

Emergency exit management

Infrared sensor for presence monitoring

Standard product features

Width of passage:

  • SA247.60 and SA248.60 Cylinder Security Portal: 600 mm.
  • SA248.70 Cylinder Security Portal: 700 mm.
  • SA249.S70 Cylinder Security Portal: 900 mm.

Floor thickness:

  • SA247.60 Cylinder Security Portal: 60 mm.
  • SA248.60 and SA248.70 Cylinder Security Portal: 20 mm.
  • SA249.S70 Cylinder Security Portal: 25 mm.

Weight:

  • SA247.60 Cylinder Security Portal: 800 kg.
  • SA248.60 and SA248.70: 900 kg.
  • SA249.S70 Cylinder Security Portal: 1300 kg.
