Application

Suitable areas of application include:

  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Secure areas.

Description

Featuring single person detection and abandoned object detection.

Features and benefits:

  • Pre-built.
  • Single person detection.
  • Abandoned object detection (weight higher than 200 g).
  • Corner construction is available only for SA246 model.
  • Paint finish: embossed, according to RAL colour scale or stainless steel covering.
  • Traffic Light Panels and Multilingual automated voiceover for transit communications.
  • Portal Console with digital display and menu-guided commands.
  • SA246C Armoured versions: with an armoured steel door.
  • Thermal insulation.
  • Throughput dependant on model and accessories.

Application:

Suitable areas of application include:

  • Banks.
  • Embassies.
  • Corporate buildings.
  • Prisons.
  • Data centres.
  • Ministries.
  • Jewellers.
  • Secure areas.

General information
Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Uniclass 2015
Pr_30_59_24_80 Sliding door and partition setsPrimary
CAWS

L20/490 Automatic doors

Specification data - Sliding door and partition sets
Product Reference

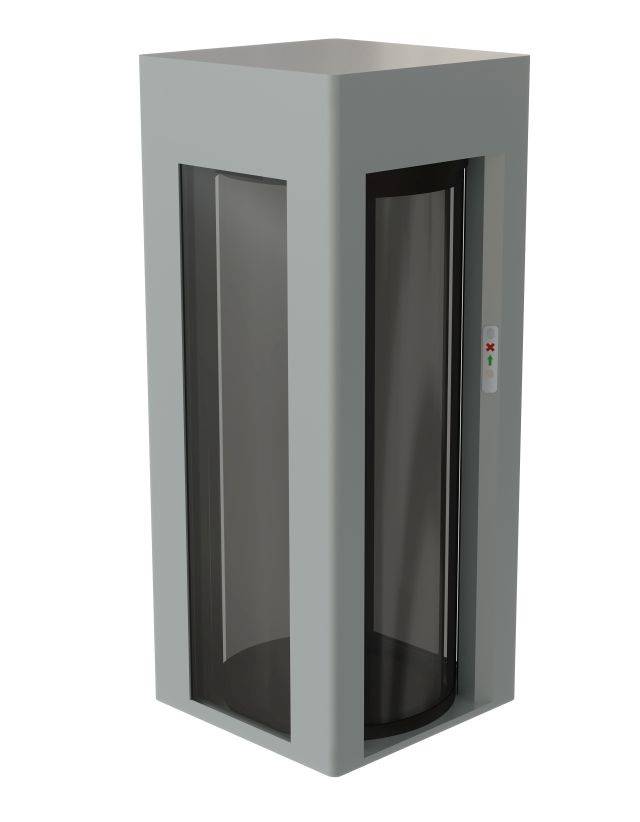

SA243.60 Square Based Security Portal

995 x 995 x 2400 mm (w x d x h), bullet resistance up to EN 1063 BR3/S.

SA246.60 Square Based Security Portal

1050 x 1050 x 2400 mm (w x d x h), bullet resistance up to EN 1063 BR3/S.

SA246.C Square Based Security Portal

1050 x 1050 x 2400 mm (w x d x h), manual attack resistance up to EN 356 P6B.

SA246.R60 Square Based Security Portal

1050 x 1050 x 2340 mm (w x d x h), manual attack resistance up to EN 356 P6B.

Finish

Embossed, RAL

Insert colour requirement.

Stainless steel

Accessories

None

Anti-masking system face detection

Biometric registration system - Biobank

Camera

Card reader

CEIA metal detector

Emergency exit management

Infrared sensor for presence monitoring

Standard product features

Width of passage:

600 mm.

Floor thickness:

  • SA243.60, SA246.60 and SA246.C Square Based Security Portal: 65 mm.
  • SA246.R60 Square Based Security Portal: 30 mm.

Weight:

  • SA243.60, SA246.60 and SA246.R60 Square Based Security Portal: 800 kg.
  • SA246.C Square Based Security Portal: 900 kg.
