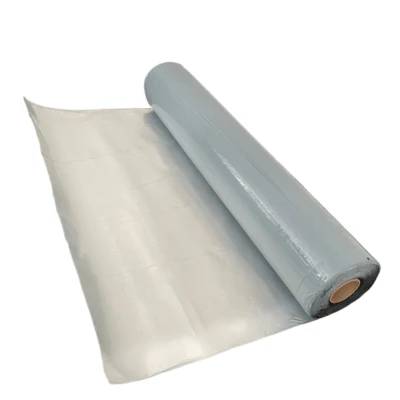

SA AVCL - Vapour Control Layer
Verified by manufacturer 2 days ago
A self-adhesive, bituminous waterproofing membrane that forms a barrier against vapour and gases.
Application
- For use in mechanically fixed and adhered roof systems.
- As a vapour barrier for single-ply roofing systems.
- As a carrier membrane as part of the Protan LR20 system on timber, concrete and PIR insulation.
Description
The Protan self-adhesive vapour control layer/carrier membrane is a self-adhesive, bituminous waterproofing membrane that forms a barrier against vapour and gases; it is also used as a carrier membrane as part of the Protan LR20 liquid membrane system.
The VCL/ Carrier membrane consists of a self-adhesive, low-thickness, bituminous compound, protected by a glass fibre and a reinforced aluminium film. The glass fibre and polyester reinforcement provide excellent resistance to puncture and the effects of work site foot traffic.
Features and benefits:
- Waterproof and self-adhesive.
- Cold applied without the use of flames.
- Vapour, radon and methane gas barrier.
- Reinforced with glass fibre.
- Protected with reinforced aluminium film.
- Excellent puncture resistance and tensile strength.
- Polyester surface accepts most polyurethane adhesives.
- Suitable for use over areas with high humidity.
General information
Color | Black |
Material | Bitumen Fibre-glass Aluminium Polyester |
Shape | Rectangle |
Length | 20000 mm 40000 mm |
Width | 1080 mm |
Height | 0.6 mm |
Uniclass | |
CAWS | J21/10 Warm deck roof coating J21/395 Air and vapour control layer J31/10 Warm deck roof coating J31/330 Air and vapour control layer J41/10 Reinforced bitumen membrane warm deck roof covering J41/395 Air and vapour control layer J42/10 Warm deck roof covering J42/395 Air and vapour control layer |
Specification data - Reinforced bitumen roofing sheets
Classification data | |
Material | |
Carrier material | Glass fibre. |
Bitumen modification | Elastomeric. |
Thickness (minimum) | 0.6 mm. |
Weight (minimum) | 1.3 kg/m². |
Surface finish | |
Top | Polyester film. |
Underside | Self-adhesive backing. |
Colour | Black. |
Reaction to fire | To EN 13501-1, Class E. |
Watertightness | To EN 1928 - B, Pass. Guidance for specification option: Passed at 60 kPa/24 h (Typ T). |
TensileStrength | To EN 12311-1, 850 N/50 mm (longitudinal); 850 N/50 mm (transverse). |
Tear resistance | To EN 12310-1, 150 N. |
Sustainability data
Material | Bitumen Fibre-glass Aluminium Polyester |
Literature
Literature type
Protan (UK) Ltd Self-Adhesive VCL.Carrier Technical Data Sheet
39006288_MSDS_Protan SA VCL.Carrier Membrane
