S76/ V76/ P76 Steel Security Shutter
Application

Windows, doors and openings in commercial and industrial uses.

Description

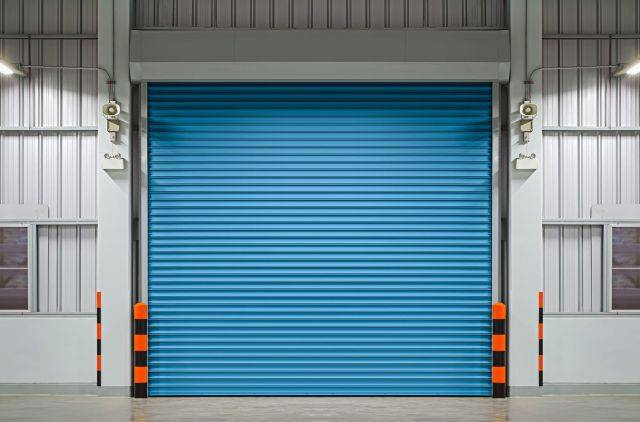

Single skin curved steel roller shutters with 76 mm high slats, available with solid, punched and perforated profiles. Punched and perforated slats can be incorporated as required for full or partial vision. The shutters can span up to 12 m in width and an area up to 72 m².

Applications:

Windows, doors and openings in commercial and industrial uses.

General information

Size

As drawing

Available up to 12000 x 6000 mm (w x h).

Uniclass 2015

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Specification data - Roller shutters

Product Reference

P76 Steel Security Shutter

Perforated slats with 22% see-through vision.

S76 Steel Security Shutter

Solid slats.

V76 Steel Security Shutter

Punched slats with 41% see-through vision.

Size

As drawing

Available up to 12000 x 6000 mm (w x h).

Arrangement

Vertical, external face fix

Vertical, internal face fix

Vertical, reveal fix

Operation

Electric, GfA three phase motor with push button control

Electric, NRG Econom tubular motor with internal rocker or external key switch

Manual, spring and lock

Enclosure material

Aluminium

Available with Electric, NRG only.

Steel

Standard.

Guide channels

-

Material

Aluminium

Available with Electric, NRG only.

Steel

Guide channels depth

50 mm

For steel only.

65 mm

For steel only.

70 mm

For aluminium only.

75 mm

For steel only.

90 mm

For aluminium only.

150 mm

For aluminium only.

Colour

-

Slats

Galvanized

Standard.

Plastisol coated, BS

Insert colour requirement.

Plastisol coated, RAL

Insert colour requirement.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Enclosure

Galvanized

Standard.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Guide channels

Galvanized

Standard.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Bottom slat

Galvanized

Standard.

Polyester powder coated, BS

Insert colour requirement.

Polyester powder coated, RAL

Insert colour requirement.

Accessories

None

Crank handle

Manual override facility

Polycarbonate infills

Standard product features

Weight:

8–19 kg/m².

Slats:

Single skin curved steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width.

Bottom slat:

Steel with brush and rubber weather seals.

Product Options

Width (maximum):

  • Electric, GfA: 12 000 mm.
  • Electric, NRG: Aluminium housing: 6000 mm; Steel housing: 12 000 mm.
  • Manual: 3000 mm.

Enclosure size (internal face fix):

Dependent on height.

- Electric, GfA:

  • <2200 mm: 305 mm.
  • 2200–3650 mm: 355 mm.
  • 3650–4600 mm: 400 mm.
  • 4600–6000 mm: 500 mm.

- Electric, NRG:

  • <2200 mm: 305 mm.
  • 2200–3650 mm: 355–360 mm.
  • 3650–4600 mm: 400 mm (steel only).

- Manual:

  • <2200 mm: 305 mm.
  • 2200–3000 mm: 355 mm.

Operation:

Electric shutters have numerous control option variants such as group, remote or mobile phone activation available.
