QA Certificate
Certificate type
Secured By Design
Certificate type
LPCB SR2 insurance approved perforated single skin steel security roller shutter.
Windows, doors and openings in commercial and industrial uses.

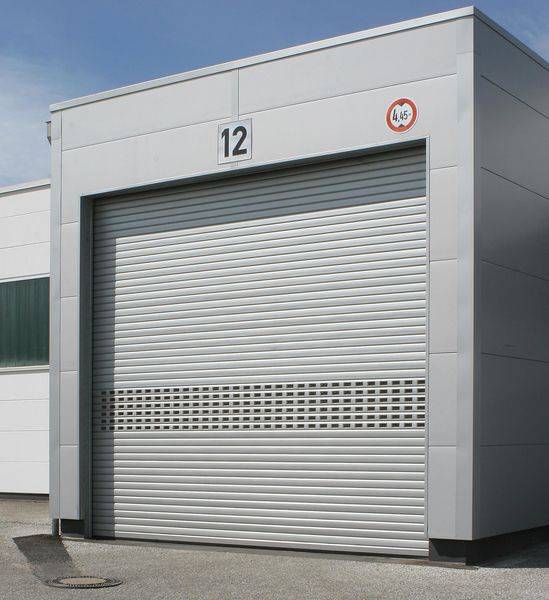

High security perforated single skin steel roller shutter with 76 mm high slats. S76 Elite has been tested by the Loss Prevention Certification Board (LPCB) to LPS 1175 SR2 and awarded insurance approved Secured by Design status. The shutter can span up to 7 m in width and an area up to 72 m².
Applications:
Windows, doors and openings in commercial and industrial uses.
Size | As drawing Available up to 7000 x 7000 mm (w x h). |
Uniclass 2015 | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Product Reference | S76 Elite Perforated Steel Security Shutter |
Size | As drawingAvailable up to 7000 x 7000 mm (w x h). |
Arrangement | Vertical, external face fixVertical, internal face fixVertical, reveal fix |
Operation | GfA three phase motor with push button controlNRG Econom tubular motor with internal rocker or external key switch |
Colour | - |
Slats | GalvanizedStandard. Plastisol coated, BSInsert colour requirement. Plastisol coated, RALInsert colour requirement. Polyester powder coated, BSInsert colour requirement. Polyester powder coated, RALInsert colour requirement. |
Enclosure | GalvanizedStandard. Polyester powder coated, BSInsert colour requirement. Polyester powder coated, RALInsert colour requirement. |
Guide channels | GalvanizedStandard. Polyester powder coated, BSInsert colour requirement. Polyester powder coated, RALInsert colour requirement. |
Bottom slat | GalvanizedStandard. Polyester powder coated, BSInsert colour requirement. Polyester powder coated, RALInsert colour requirement. |
Accessories | NoneCrank handleManual override facility |
Standard product features | Weight: 8–19 kg/m². Slats: Single skin curved steel, 76 mm in height. 0.7, 0.9 or 1.2 mm wall thickness, dependent on overall width. Enclosure: Roll formed steel with end plates. Guide channels: 65 mm deep steel. Bottom slat: Steel with brush and rubber weather seals. |
Product Options | Enclosure size (internal face fix): Dependent on height.
Operation: Numerous control option variants such as group, remote or mobile phone activation are available. |
