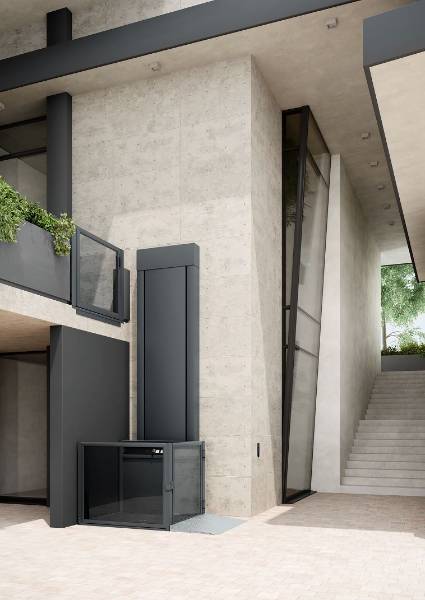

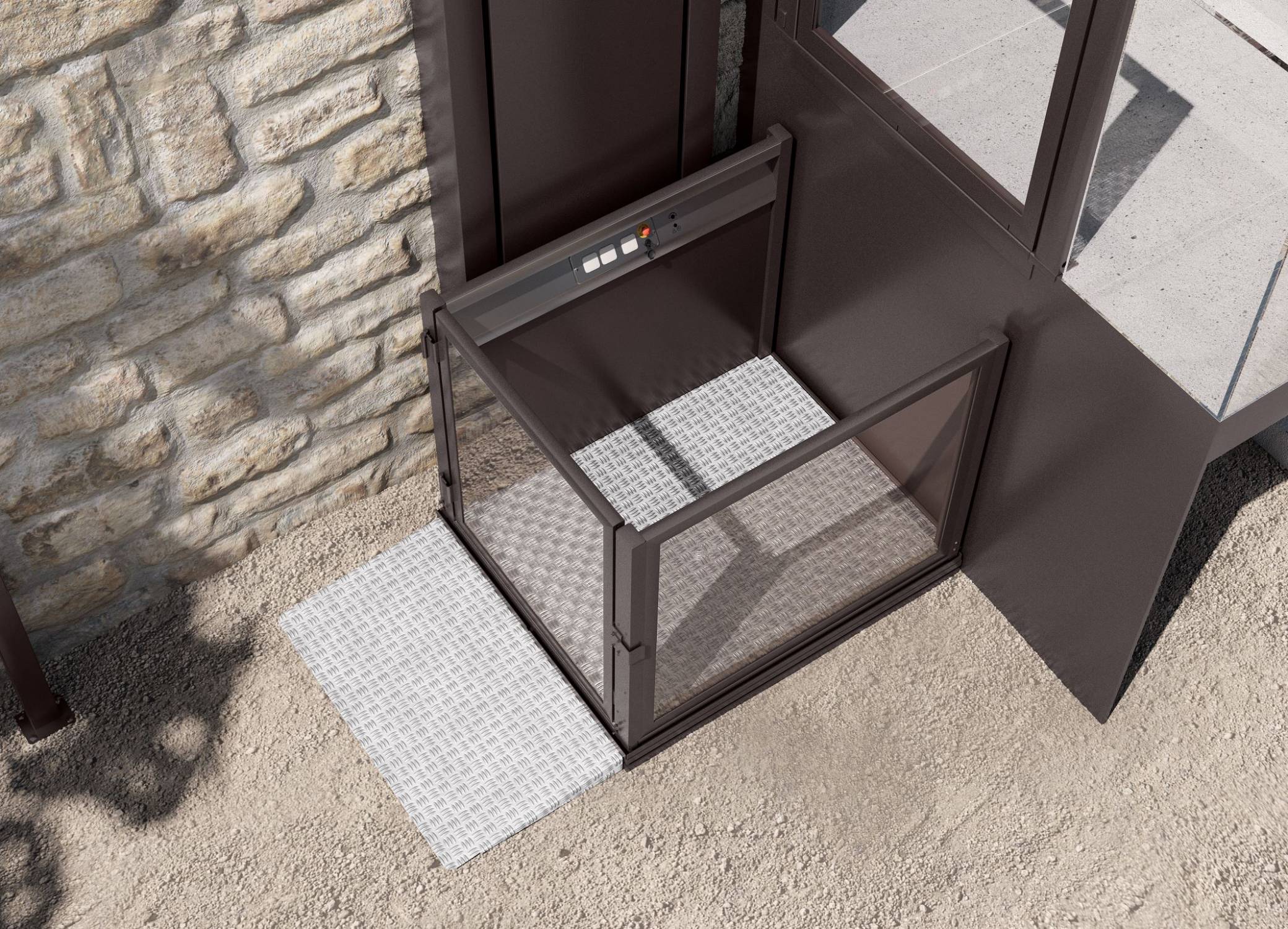

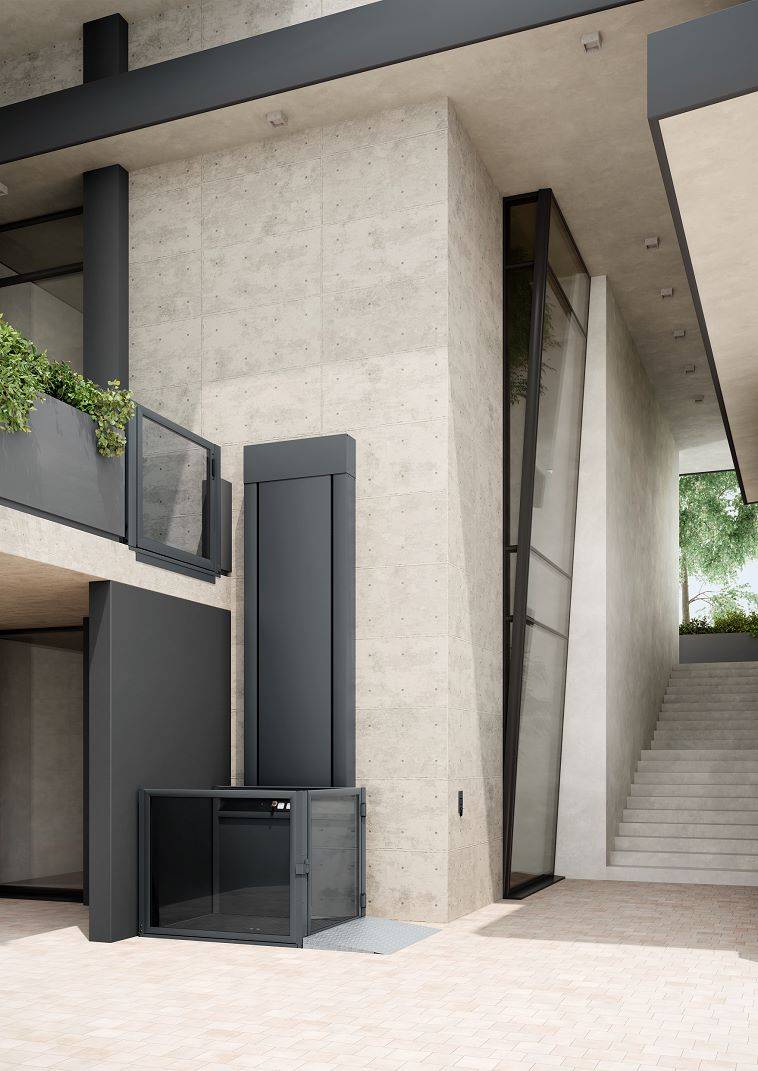

S11 Lifting Platform

Verified by manufacturer 2 months ago

Version 1100

Vimec SRL Variant:

Electric platform lifting system suitable for people with limited locomotory capacity.

Jump to:
Website

Application

Suitable for residential and commercial internal and external applications.

Description

Electric platform lifting system suitable for people with limited locomotory capacity.


Features and benefits:

  • Flexibility for installations with limited space available.
  • All versions in a closed shaft (masonry) can be integrated with a compliance kit to EN 81-41. The kit includes a special tower side wall with push-button tilted at 30°, overload sensor with indicator light, handrail on board, safety post in pit with beacon, auto-dialer and kit GSM.
  • Available with automatic door and gate opening/ closing.
  • Red emergency stop button is installed at 1000 mm from the ground in compliance with EN 81-41: 2011.
  • The keyboard is horizontal and equipped with both an emergency button and a switch key.
  • The controls are 50 x 50 mm with braille indications and blue backlighting.
  • On-board emergency push-button connected with an audible alarm.
  • Thermal circuit breaker on the inverter.
  • Landing limit switch.
  • Over-run micro-switch.
  • Auxiliary circuit and supply circuit in separate cables.
  • Electric driving locks approved according to the EEC Directive 81/2 (for floor door and gate), with safety micro-switch for approved door release control.
  • Foldable hinged ramp.
  • Double floored with safety edges.


Technical characteristics:

  • Working load: 400 kg.
  • Travel: Up to 2990 mm.
  • Power supply: 230 V Single phase/with inverter.
  • Motor: Electric 2.2 kW.
  • Maximum of two stops.
  • Pit: 0–235 mm.

General information

Color

Grey

Black

White

Other

Guidance for specification option:

Special RAL, contact manufacturer for details.

Finish

Powder-coated

Material

Aluminium

Steel

Polycarbonate

Glass

Shape

Rectangle

Length

1250 mm

1400 mm

Width

900 mm

1100 mm

Warranty description

Two year

Uniclass

Pr_65_80_47_95 Vertical lifting platformsPrimary

CAWS

X12/110 Vertical lifting platform systems

Specification data - Vertical lifting platforms

Standard

To EN 81-20:2020, EN 81-41:2011, EN 81-50:2014.

Rated load (minimum)

400 kg.

Drive type

Automatic.

Carriage type

Half-height.

Carrier

-

Frame material

Steel.

Frame finish

Semi glossy orange peel.

Frame colour

Vimec 7040.

RAL 1013 pearl white.

RAL 7016 anthracite grey.

RAL 9023 dark pearl grey.

Special RAL.

Guidance for specification option:

Contact manufacturer for details.

Infill material

Steel and polycarbonate.

Guidance for specification option:

Tower side protection wall in RAL 7040 painted steel and protection wall opposite to tower in grey polycarbonate as standard.

Infill finish

Semi glossy orange peel.

Insert colour

Vimec 7040.

RAL 1013 pearl white.

RAL 7016 anthracite grey.

RAL 9023 dark pearl grey.

Special RAL.

Guidance for specification option:

Contact manufacturer for details.

Doors

-

Arrangement

Single.

Through.

Adjacent.

Type

On board gate.

Guidance for specification option:

MANDATORY FOR OPEN SHAFT

  • Available in the following dimensions: 900 x 1100, 1100 x 1100 mm according to the platform.
  • Clad in transparent or smoked grey glass.
  • Standard manual opening.

Floor steel gate.

Guidance for specification option:

  • Standard dimension 900 x 1100 mm.
  • Clad in transparent or smoked grey glass.
  • Integrated lock standard.
  • Standard closing spring.
  • Optional automation.
  • Special widths available as an option.

Panoramic aluminium door.

Guidance for specification option:

Available in widths 700, 800, 900 and 1000 mm

with a standard height of 2000 mm (2130 including

frame).

  • Clad in transparent or smoked grey glass.
  • Integrated lock standard.
  • Door closer standard.
  • Optional automation.

Clear opening width (minimum)

800 mm.

Guidance for specification option:

Standard.

900 mm.

1000 mm.

1100 mm.

Frame material

Aluminium.

Frame finish

Semi glossy orange peel.

Frame colour

Vimec 7040.

RAL 1013 pearl white.

RAL 7016 anthracite grey.

RAL 9023 dark pearl grey.

Special RAL.

Guidance for specification option:

Contact manufacturer for details.

Infill material

Laminated glass.

Infill colour

Transparent.

Smoked grey.

Carrier floor

-

Dimensions

-

Width (minimum)

900 mm.

1100 mm.

Material

Anti-slip, almond shaped steel.

Electrical supply

Single-phase 230 V a.c. 50 Hz operation.

Control device type

Push button panel.

Control features

Dead man's controls.

Accessories

Not required.

Compliance kit EN 81-41.

Guidance for specification option:

For closed shaft applications. The kit includes a tower side wall with push-button tilted at 30°, overload sensor with indicator light, handrail on board, safety post in pit with beacon, auto-dialer and kit GSM.

AISI 316 stainless steel finish.

Guidance for specification option:

With guards and gates exclusively with grey polycarbonate cladding; tower side wall is always blind cladding).

Oiler kit.

Guidance for specification option:

For intensive uses.

Transparent polycarbonate cladding.

Automatic doors and gates on floor.

Wireless floor controls at floor “1”.

Wireless double board controls.

Handle.

Additional photocells kit on other sides.

Guidance for specification option:

Different from tower side.

Access ramp.

Powered lowering manoeuvre.

Stainless steel support column and remote control.

Guidance for specification option:

Floor push button option.

Bellow.

Guidance for specification option:

Optional extra, for open shaft installations. Consists of a frame made of a thermoplastic material that protects the free sides along the entire perimeter of the platform.

Dimensions

1250 x 900 mm.

1400 x 1100 mm.

1400 x 900 mm.

Speed

0.05 m/s.

Pit opening

0–40 mm.

Operating temperature

-15°C to +70°C.
