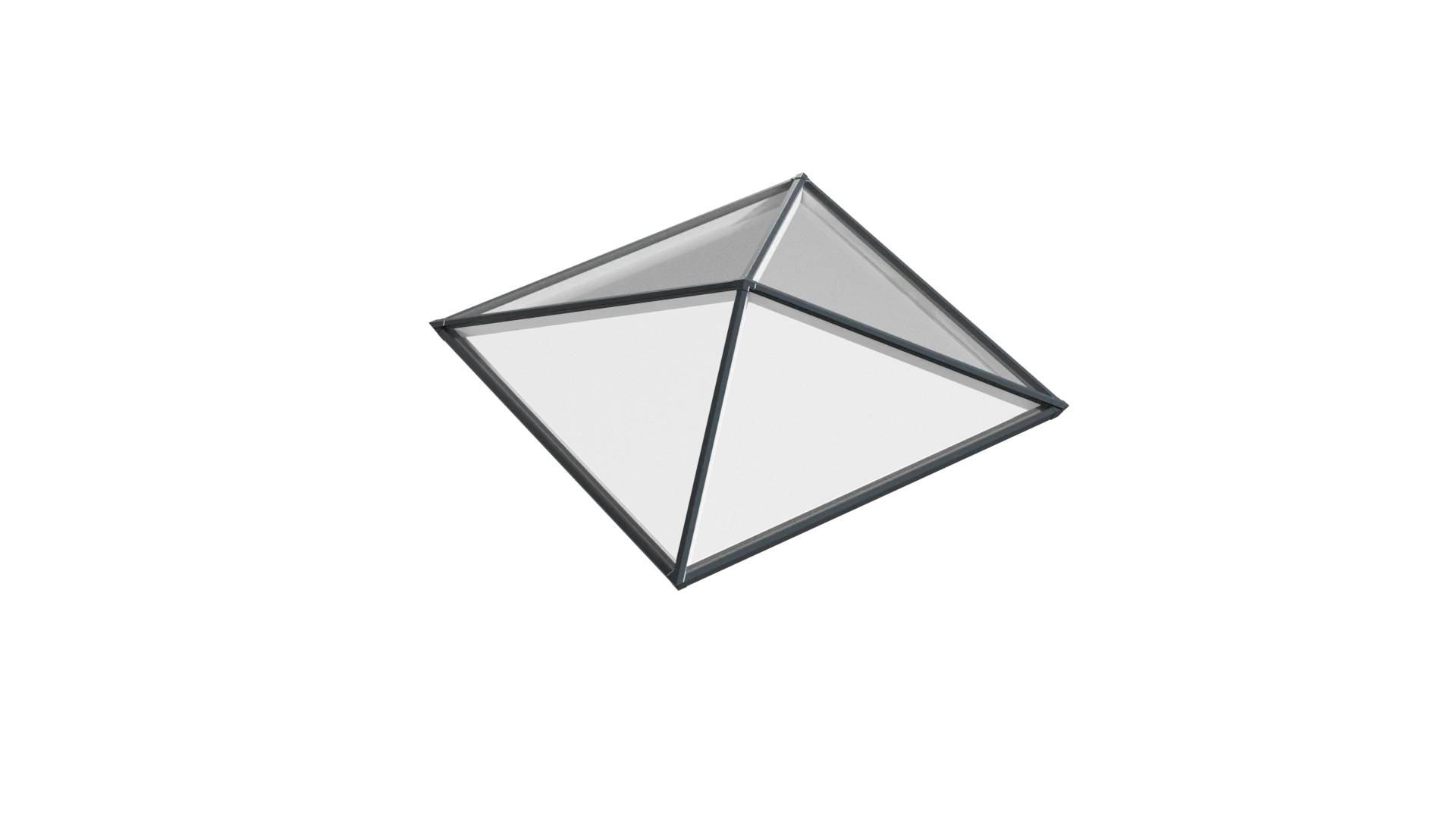

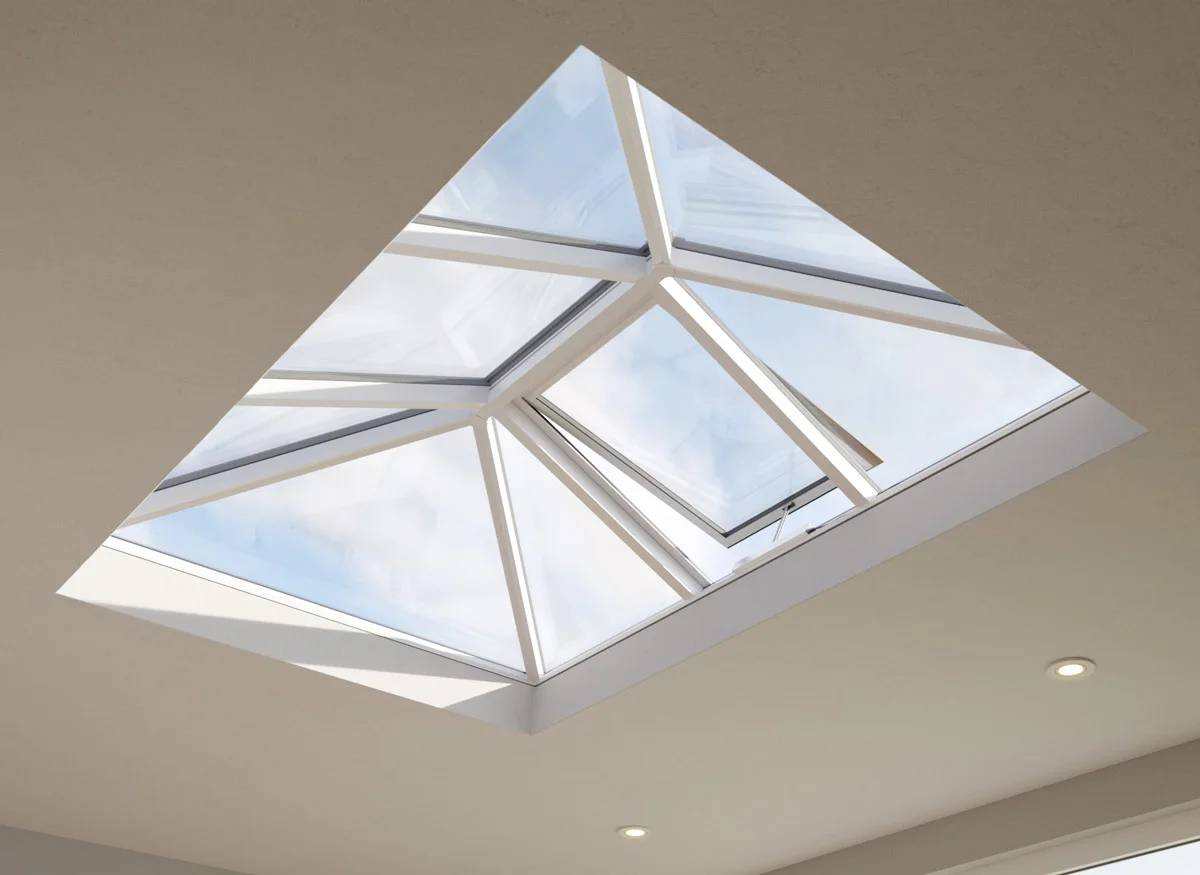

S1 Roof Lantern 2-way - Aluminium Roof Lantern
Verified by manufacturer 2 days ago
Style 1 - Square
Style 1 - Square
Qualicoat approval
Certificate type
BSI Kitemark
Certificate type
Secure, sustainable and stylish 2-way roof lantern.
Application
Suitable for residential applications.
Description
The aluminium roof lantern is designed to offer a balance of security, sustainability, and style. Engineered with ultra-low line aesthetics, it provides a sleek and modern appearance from every angle. By combining advanced security features, excellent thermal performance, and refined design, this next-generation roof lantern enhances both the functionality and visual appeal of any space.
Features and benefits:
- Secure, sustainable and stylish.
- Ultra-low line aesthetics.
- Thermlock® technology offers almost double the insulation when compared to polyamide.
- In-built security.
- Available in multiple colours and finishes.
- S1 is available in 13 styles up to 3.2 x 6 m without tie bars.
- Designed to meet the latest requirements of the built environment.
- Easy to install.
- Optional integral LED light channel around the perimeter of the roof.
- Innovative high security design features.
- Aluminium can be recycled at end of product life.
- Thermally efficient.
- Anti-tamper screws.
- High security ridge.
- Enhanced security – available with Secured by Design accreditation for police-approved security standards.
- Part L compliant.
General information
Color | Grey Black Brown Cream White |
Finish | Powder-coated Matt Gloss Metallic Satin |
Material | Aluminium Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Powder-coated finish, thermlock performance and profile integrity. Ten year Guidance for specification option: Gasket integrity. Other Guidance for specification option: Bespoke guarantee for marine specific locations and bespoke colours. Consult manufacturer for details. Manufacturer guidanceSheerline components are covered by a comprehensive guarantee - consult manufacturer for details. |
Uniclass | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Roof lanterns
Shape | Square. |
Form | Pyramid. |
Pitch | 25ᵒ. |
Glazed side frames | Required. |
Framing | |
Material | Aluminium. |
Thermal break | Required. Guidance for specification option: Thermlock® multi-chamber technology. |
Finish | Powder-coated. |
Colour | Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Cream, RAL 9001, matt. Agate grey, RAL 7038, matt. Squirrel grey, RAL 7000, matt. Pastel turquoise, RAL 6034, matt. Chocolate brown, RAL 8017, matt. Silver metallic effect. Mid bronze metallic effect. Black metallic effect. Bespoke. Guidance for specification option:
Manufacturer guidanceExternal powder-coated colour.
For Internal colour, see Internal colour property below. |
Glazing | |
System | 28 mm glazing. |
Outer pane | Manufacturer guidanceInsert glazing requirements. |
Cavity space fill | Argon. |
Inner pane | Manufacturer guidanceInsert glazing requirements. |
Colour | Clear. |
Drainage | As standard. |
Ventilation | |
Purge | |
Sealant | |
Location | Generally. |
Type | Co-extruded perimeter seal. |
Accessories | Not required. Integral LED light channels in the ridge and eaves. |
Internal colour | As external. Anthracite grey, RAL 7016, matt. Pure white, RAL 9010, gloss. Hipca gloss white, RAL 9910, gloss. Jet black, RAL 9005, matt. Manufacturer guidanceInternal powder-coated colour.
External powder-coated colour specified above. |
Dimensions | Manufacturer guidanceInsert requirements:
|
Sightline | 50 mm. Guidance for specification option: Rafter, hip and ridge. |
Snow load | 1.2 KN/m². |
Security | Not required. Secured by Design (SBD). |
Sustainability data
Country of material origin | United Kingdom Guidance for specification option: UK sourced aluminium. |
Country of product manufacture | United Kingdom |
Material | Aluminium Glass |
Recyclability | Sustainable recycling friendly |
Product certifications
Qualicoat approval
Qualicoat Seaside Class Powder Coating
BSI Kitemark
Sheerline ISO 9001:2015
Literature
Literature type
Sheerline Guarantee
Sheerline Specification Guide
S1 Roof Lantern Data Sheet
