S-Cubed Sounders and VADS - Loop Powered Alarm Sounders and VADS

Name: S-Cubed Sounders and VADS - Loop Powered Alarm Sounders and VADS
Brand: Gent
SKU: a3kUxCk1X8fSxbFQtTq5yR

Verified by manufacturer 5 months ago

Voice Sounder / HP White VAD / Red Body

Gent

Product certifications:

LPCB Certification
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type
BRE Certificate
Certificate type

S-Cubed range of audible / visual alarm devices incorporates sound, speech and an EN 54-23 visual alarm all in one device.

Jump to:

BOS

+44 (0) 203 4091779 Website

Application

Sounder and Audio Visual devices suitable for all building types in order to provide alarm indication in the event of an emergency.

Description

S-Cubed offers a comprehensive range of loop powered alarm sounders with integrated voice and EN 54-23 certified low current consumption, high performance visual alarms. Combined with flexible configuration from the fire control panels, this loop powered device can give a differentiated combination of audible and visual alarms for alert and general evacuation.

Features and benefits:

Very low power consumption means that the Vigilon system offers more high performance sounders and VADs on the loop than any other manufacturer.
Each loop can support up to 200 voice sounders, 100 visual alarm devices (VADs) and up to 70 combined sounder VADs.
Alarm tones full synchronised across all loops on a control panel.
EN 54-23 VADs with adjustable light coverage matching the sounder output.
Environmentally Protected (EP) range with an IP66 rating.
Four voice phrases and a bell tone available as standard.
Voice and tone modes can be freely configured within the same sounder.
3 different alarm tones selectable for Alert, Evacuate and other emergency tones.
Active background monitoring of sounder and VAD circuits.
Short circuit isolator in each device.
SOFT Addressing technique, no need for DIP switch, EPROMS or programming at time of installation.
Adjust the sounder volume via the commissioning tool, the panel or the HandiLink infrared remote control.
EN54-3, EN54-17 & EN54-23 certified depending on which variant is selected.

General information

Color	Red White
Finish	Smooth
Material	Plastic
Shape	Circle
Length	112 mm
Width	112 mm 125 mm Guidance for specification option: EP variants.
Height	75 mm Guidance for specification option: Shallow base. 90 mm Guidance for specification option: Standard base. 95 mm Guidance for specification option: EP variants.

Uniclass	Pr_75_80_30_30 Fire alarm soundersPrimary
CAWS	W90/338 Visual alarm devices W90/337 Sounders S92/420 Alarm devices

SKU Code	S3-V-VAD-HPW-R

Specification data - Fire alarm sounders

Classification data
Standard	To BS EN 54-3, EN 54-23 and EN 54-17.
Third-party certification	LPCB-approved.
Sounder type	Voice sounder.
Rated voltage	48 V.
Sound patterns	Three signals and four messages. Guidance for specification option: Signal 1* intermittent tone. Signal 2* alternating tone. Signal 3* high tone. Msg 2: Attention please this is an emergency please leave the building by the nearest available exit. (Female voice). Msg 3: An incident has been reported in this building please await further instructions. (Female voice). Msg 4: This is a test message no action is required. (Female voice). Msg 5: This is a fire alarm please leave the building immediately by the nearest available exit. (Male voice).
Enclosure protection	IP21.
Sound pressure level (minimum)	103 dB(A) ± 3 dB(A) at 1 m.
Integral beacon	To BS EN 54-23.
Mounting	Surface.
Power supply	From loop.
Diameter	112 mm.
Depth	75 mm. Guidance for specification option: Shallow base. 90 mm. Guidance for specification option: Standard base.
Colour	Red (body); white (VAD).

Sustainability data

Contains Red List materials	Yes
Country of material origin	Romania
Country of product manufacture	Romania
Material	Plastic

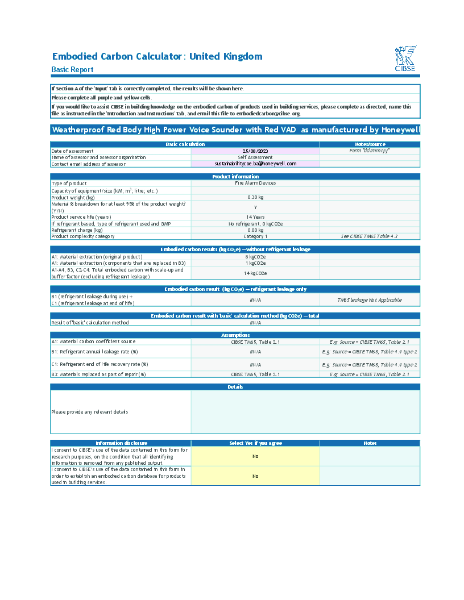

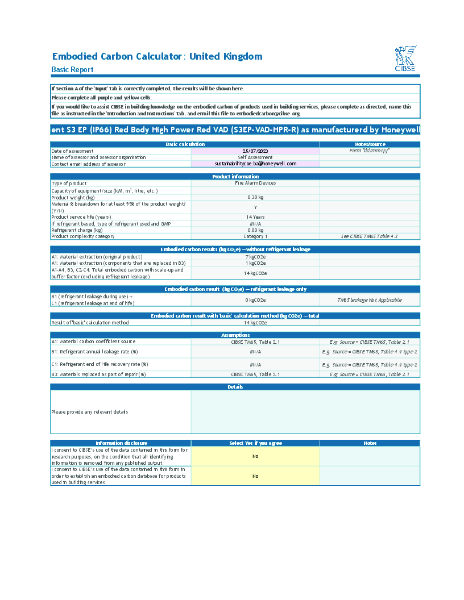

Carbon dioxide equivalent
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 8-14.15

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Product certifications

LPCB Certification

Honeywell Gent S3-S-VAD-HPR-R, S3-S-VAD-HPR-R, S3-S-VAD-HPW-R, S3-V-VAD-HPW-R, S3-V-VAD-HPR-R, S3-S-VAD-HPW-W, S3EP-V-VAD-HPR-R, S3-S-VAD-LPR-R, S3-S-VAD-LPW-R EN54 Certificate of Approval
