RXYSA-A (Mini VRV5) - Outdoor VRV Unit
Verified by manufacturer 3 months ago

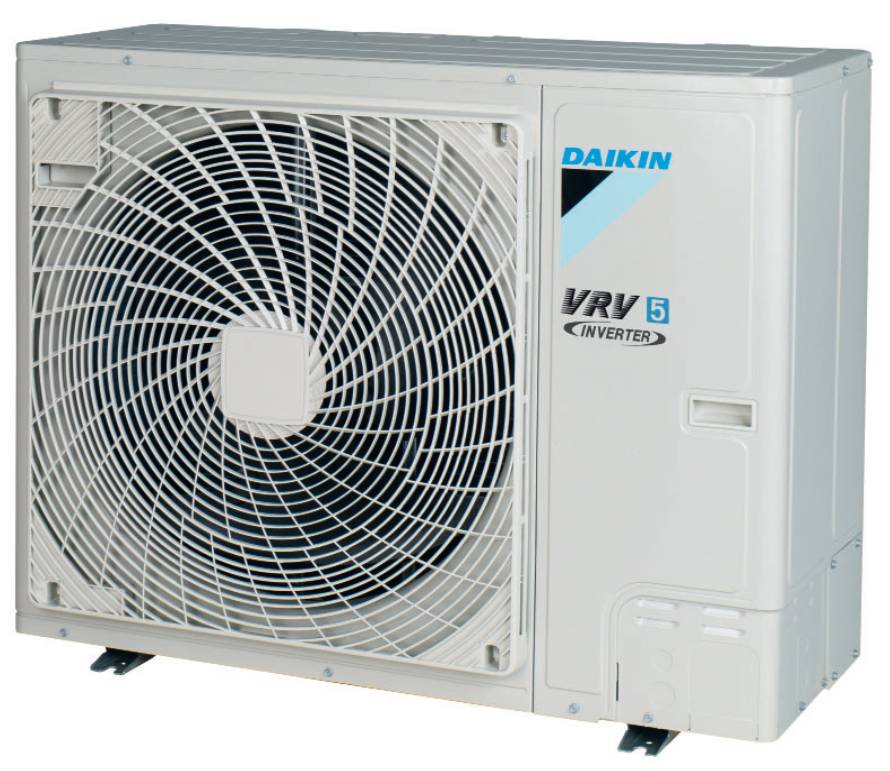

RXYSA4AV1
RXYSA4AV1
Standard capacity, small footprint VRV.
Application
Suitable for light commercial and high-end residential applications.
Description
Mini VRV systems deliver VRV performance in a small,
convenient package. Mini VRV5 offers a compact horizontal
blow air conditioning solution for projects with lower
capacity requirements, or where discretion is required
due to the planning or aesthetic requirements of the
application.
Features and benefits:
- Variable refrigerant temperature - so increased efficiency and higher occupant comfort.
- Lighter outdoor unit, so easier to install.
- Reduced sound levels making it simpler to comply with building regulations.
General information
Color | Grey |
Shape | Rectangle |
Length | 1100 mm |
Width | 460 mm |
Height | 869 mm |
Uniclass | |
CAWS | T90/500 Air-to-air heat pumps |
Specification data - Air-to-air heat pumps
Heat pump type | Multi-split. |
Mode | Cooling.Heating. |
Output | |
Heating | 14.2 kW. |
Cooling | 12.1 kW. |
Electrical supply type | Single phase. |
Refrigerant | R32. |
Sustainability data
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 850 kg CO₂ eq/unit |
Recyclability | 70% |
Literature
RXYSA-A VRV 5 S-Series Data Sheet
