Russell Polden Roof Tile
75 mm head-lap.
75 mm head-lap.

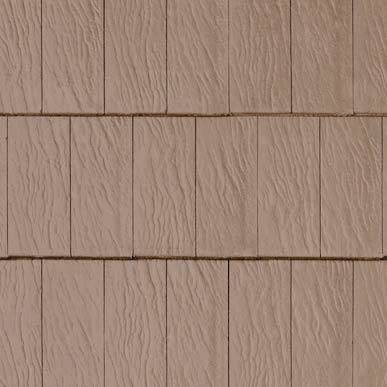

A thinner leading edge riven finish flat interlocking roof tile which has the appearance of a slate when laid broken bonded.
Application
Suitable use for roofing.
Description
Flat, interlocking concrete roof tile with riven finish and a thinner leading edge to give the appearance of slate when laid broken bonded. Part of the Russell Natural range.
Features and benefits:
- Manufactured in accordance with BS EN 490 and BS EN 491.
- Approvals: Non-combustible when tested to BS 476: Part 3, 2004 (spread of flame and fire prevention).
- Approvals: SAA classification.
General information
Color | Brown Grey |
Finish | Riven |
Material | Concrete |
Shape | Rectangle |
Length | 418 mm |
Width | 330 mm |
Height | 16 mm |
Uniclass | |
CAWS | H65/115 Concrete roof tiling null Concrete roof tiling with counterbattens null Roof tiling H65/5 Roof tiling |
Specification data - Concrete interlocking tiles Enhanced data
Standard | To BS EN 490; BS EN 491. |
Head lock | Required. |
Colour | Anthracite.Country Stone.Slate Grey. |
Surface finish | Riven finish. |
Size | 418 x 330 mm. |
Head-lap | 75 mm. Minimum. |
Weight | 45 kg/m². |
Roof coveringCovering width: 300 mm. | 9.7 tiles per m². |
Gauge | 343 mm. Maximum. |
PitchFor rafter lengths greater than 8 m, consult manufacturer. | 22.5°.
60°.
|
Batten size | 50 x 25 mm. For rafters not exceeding 600 mm. |
Accessories | A range of complementary ridge, verge, hip tiles and valleys with corresponding fixing products used in conjunction with dry fix ridge, hip and verge systems along with roof ventilation products are available; consult manufacturer for details. |
Fixing | Suitable for use with 40 x 3.35 mm aluminium alloy nails (smooth or ring shank dependent on fixing specification), and Russell Natural range tile clips fixed with 65 x 3.35 mm aluminium alloy nails. |
Thickness | 16 mm. |
Total weightTile weight. | 4.6 kg. |
Environmental information
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
