Russell Lothian 145 Roof Tile

Name: Russell Lothian 145 Roof Tile
Brand: Russell Roof Tiles
SKU: oEyhrkR2ruFvNz8dWiKjUx

Verified by manufacturer 2 months ago

165 mm head-lap.

Third party certifications:

A thinner leading edge flat interlocking roof tile which gives the appearance of a small format tile or traditional plain tile.

Jump to:

Application

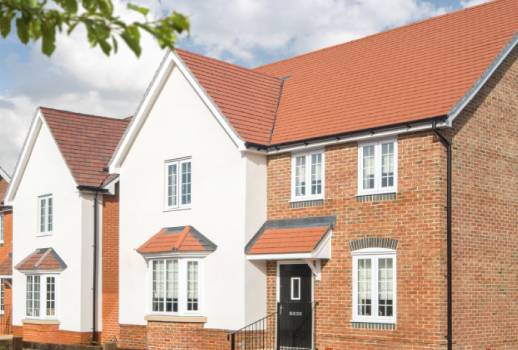

The Lothian 145 roof tile can be used across all across residential, commercial and public buildings with a pitched roof.

Flat, interlocking concrete roof tile.

Features and benefits:

Thinner leading edge provides the appearance of a small format or traditional plain tile, when laid at a headlap of 145 or 165 mm respectively.
Extended headlap.
Incorporates the security benefits of an interlocking design.
Manufactured in accordance with BS EN 490 and BS EN 491.
Part of the Russell Natural range.
Approvals: Non-combustible when tested to BS 476: Part 3, 2004 (spread of flame and fire prevention).
Approvals: SAA classification.

Uniclass	Pr_25_93_72_17 Concrete interlocking tilesPrimary
CAWS	H65/115 Concrete roof tiling H65/120 Concrete roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling

Standard	To BS EN 490; BS EN 491.
Head lock	Required.

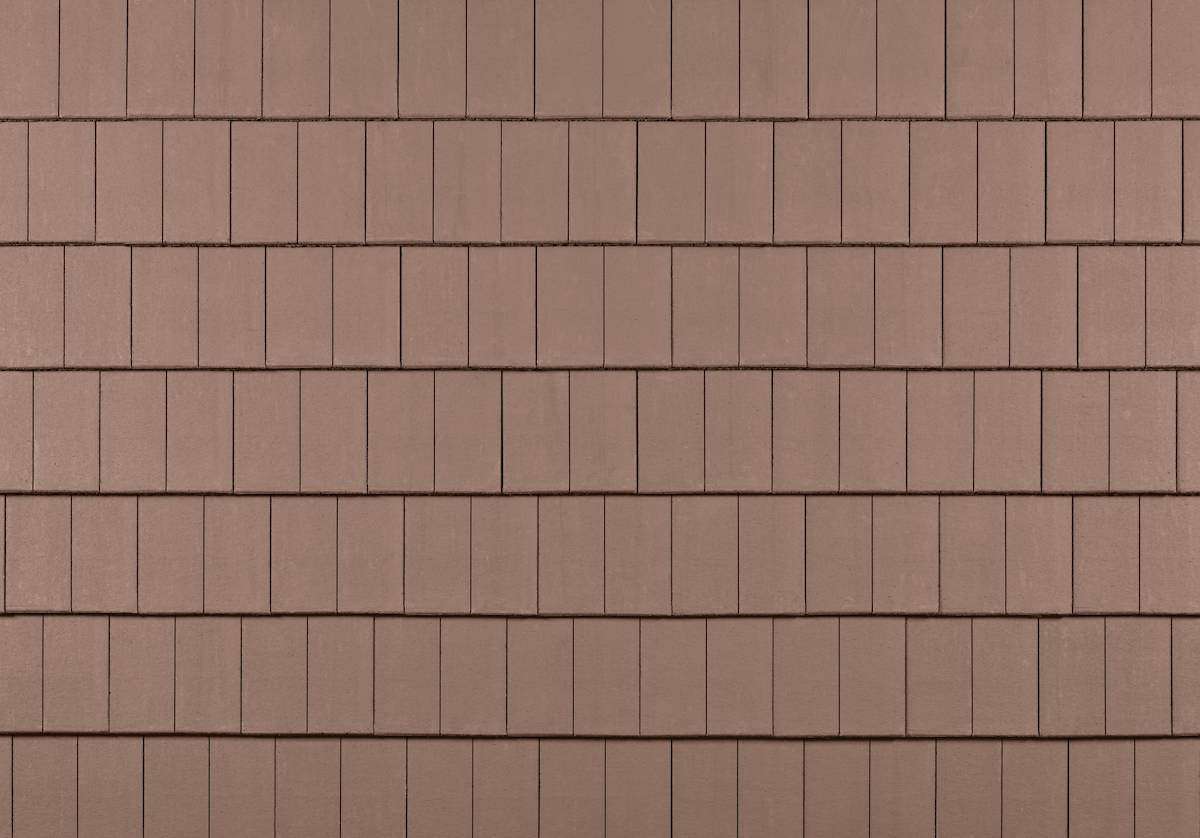

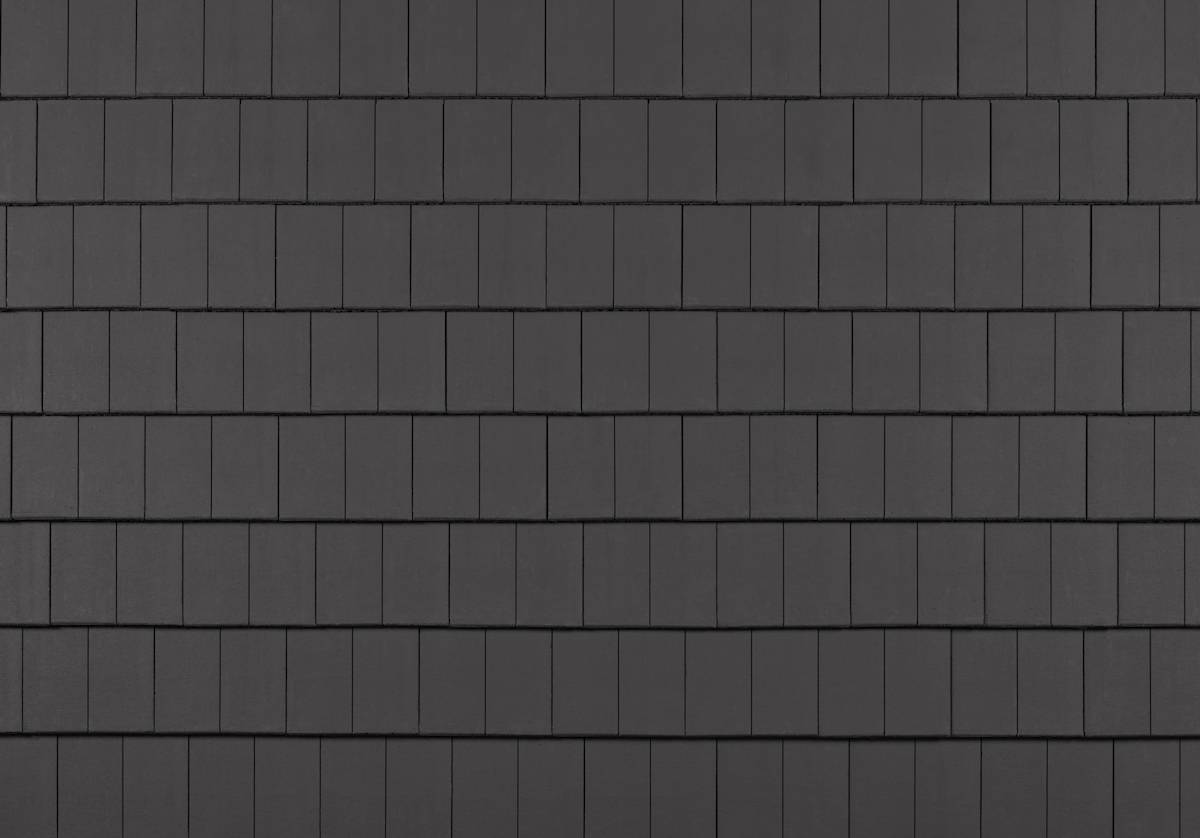

Colour	Anthracite. Autumn Stone. Burnt Orange. Cottage Red. Country Stone. Peat Brown. Slate Grey. Terracotta.
Size	418 x 330 mm.

Head-lap	165 mm.
Weight	61 kg/m².
Roof covering	13.2 tiles per m².
Gauge	253 mm. Guidance for specification option: 165 mm headlap. Manufacturer guidance Maximum.
Pitch	17.5°. Guidance for specification option: Minimum. 60°. Guidance for specification option: Maximum.
Batten size	50 x 25 mm. Guidance for specification option: For rafters not exceeding 600 mm.
Accessories	Guidance for specification option: A range of complementary ridge, verge, hip tiles and valleys with corresponding fixing products used in conjunction with dry fix ridge, hip and verge systems along with roof ventilation products are available; consult manufacturer for details.
Fixing	40 x 3.35 mm aluminium alloys nails. Guidance for specification option: Smooth or ring shank dependent on fixing specification.
Thickness	16 mm.
Total weight	4.6 kg. Manufacturer guidance Total weight.

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Recyclability	Can be fully reclaimed for use on another building or recycled as crushed aggregate in a wide range of applications.
