Russell Galloway Roof Tile
Verified by manufacturer 2 months ago
125 mm head-lap.
125 mm head-lap.
UKAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
A thinner leading edge interlocking roof tile
Application
The Galloway roof tile can be used across all across residential, commercial and public buildings with a pitched roof.
Description

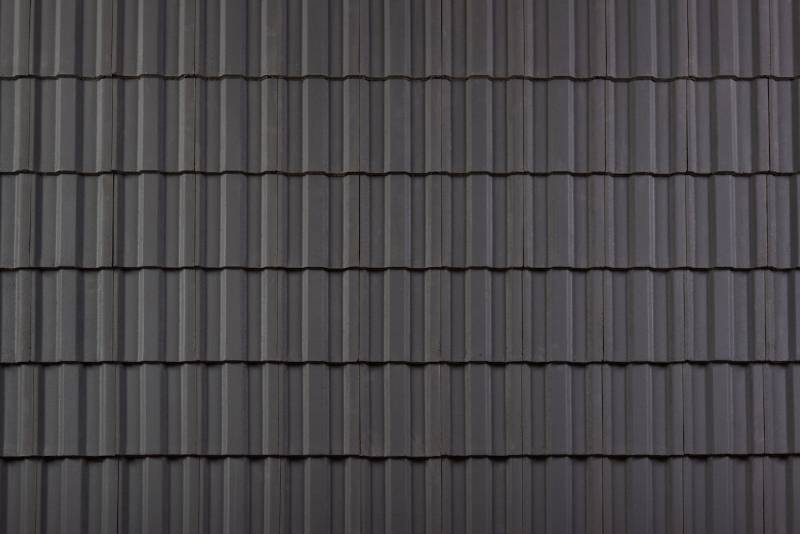

Flat, interlocking concrete roof tile.
Features and benefits:
- Thinner leading edge provides the appearance of slate when laid half broken bonded.
- Part of the Russell Natural range.
- Manufactured in accordance with BS EN 490 and BS EN 491.
- Approvals: Non-combustible when tested to BS 476: Part 3, 2004 (spread of flame and fire prevention).
- Approvals: SAA classification.
General information
Color | Grey Red Brown |
Finish | Smooth |
Material | Concrete |
Shape | Rectangle |
Length | 418 mm |
Width | 330 mm |
Height | 16 mm |
Uniclass | |
CAWS | H65/115 Concrete roof tiling H65/120 Concrete roof tiling with counterbattens H65/3 Roof tiling H65/5 Roof tiling |
Specification data - Concrete interlocking tiles
Standard | To BS EN 490; BS EN 491. |
Head lock | Required. |

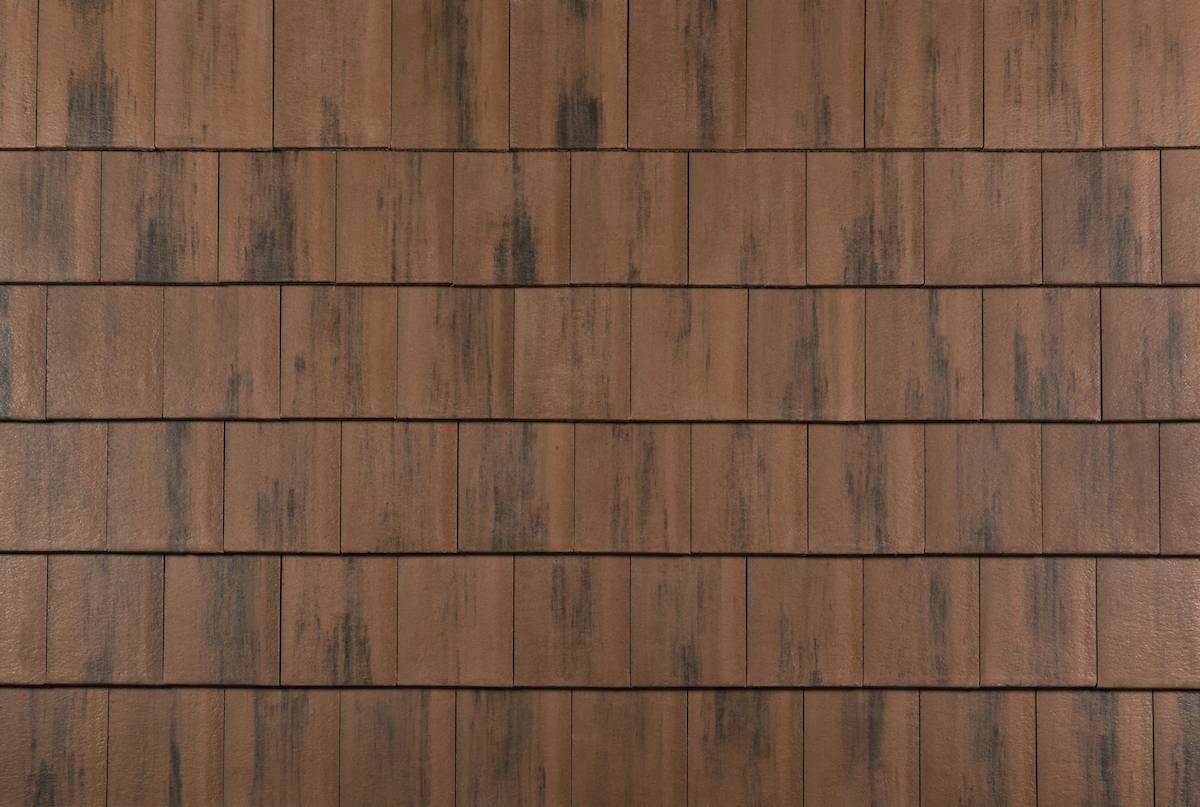

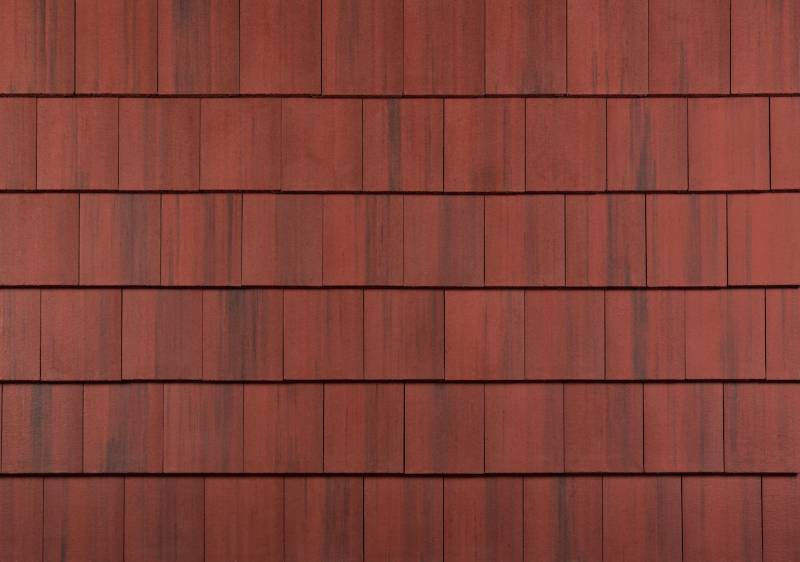

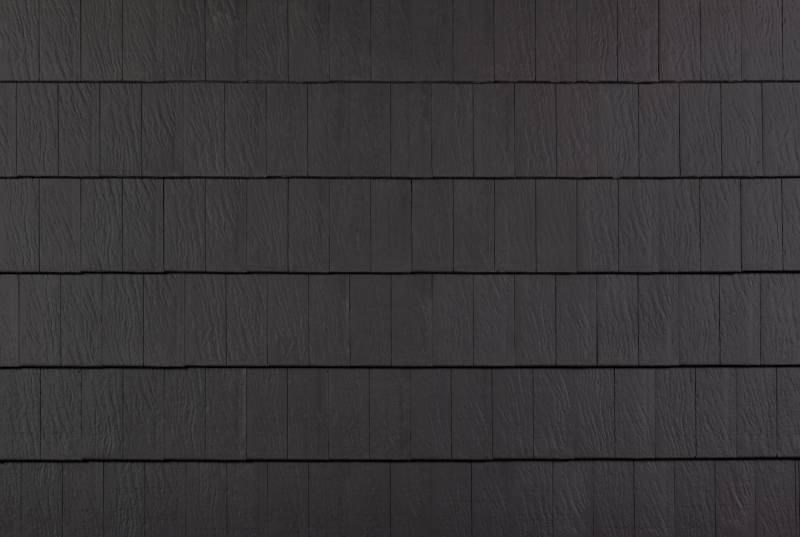

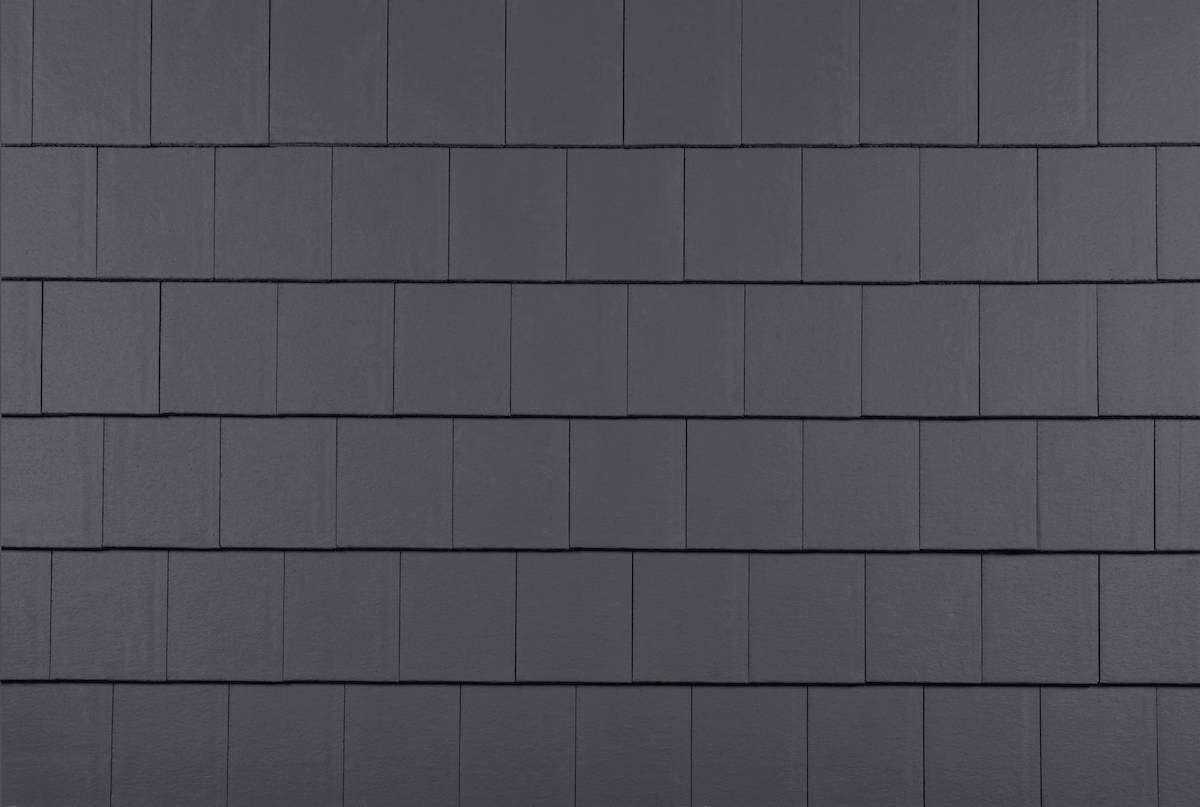

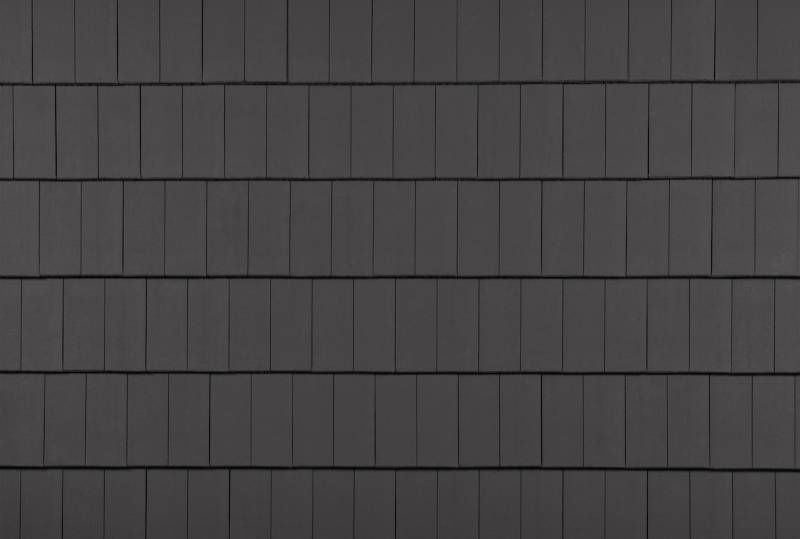

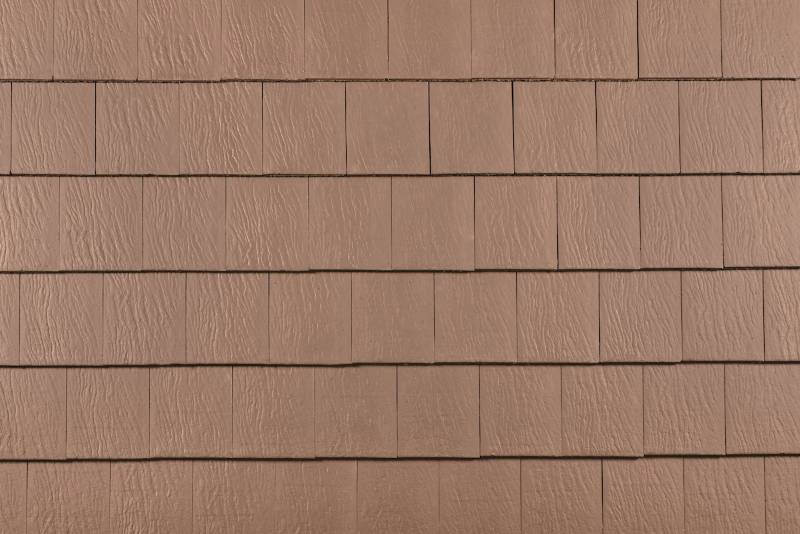

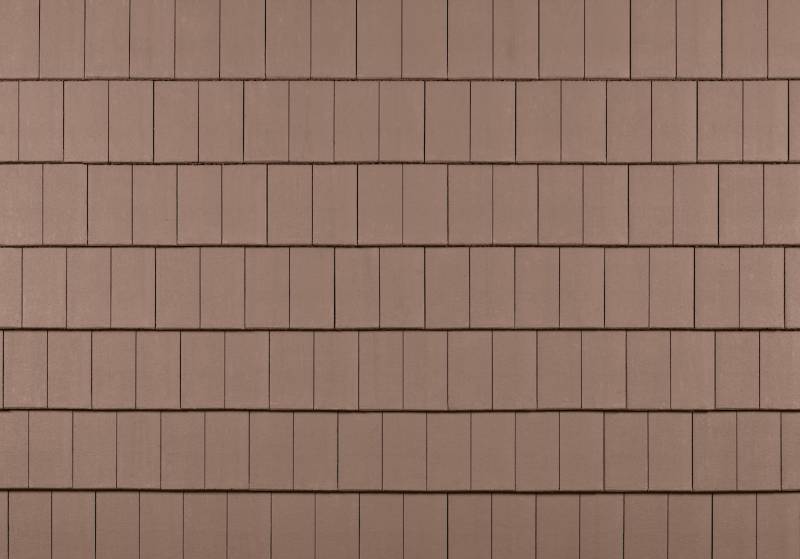

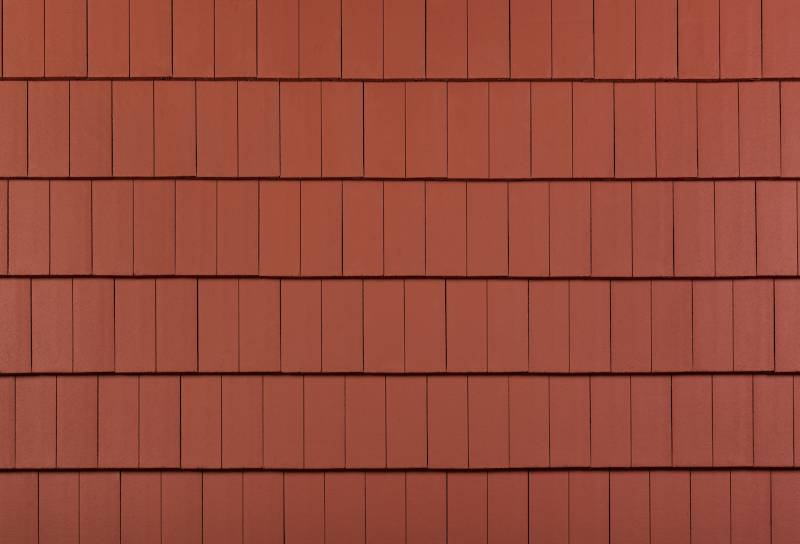

Colour | Anthracite.Autumn StoneCottage Red.Country Stone.Peat Brown.Slate Grey.Terracotta. |
Size | 418 x 330 mm. |
Head-lap | 125 mm. |
Weight | 52 kg/m². |
Roof covering | 11.4 tiles per m². Manufacturer guidanceCovering width: 300 mm. |
Gauge | 293 mm. Guidance for specification option: Maximum. |
Pitch | 17.5°. Guidance for specification option:
60°. Guidance for specification option:
|
Batten size | 50 x 25 mm. Guidance for specification option: For rafters not exceeding 600 mm. |
Accessories | 40 x 3.35 mm aluminium alloys nails. Guidance for specification option: Smooth or ring shank dependant on fixing specification. |
Fixing | Guidance for specification option: Suitable for use with 40 x 3.35 mm aluminium alloy nails (smooth or ring shank dependent on fixing specification), and Russell Natural range tile clips fixed with 65 x 3.35 mm aluminium alloy nails. |
Thickness | 16 mm. |
Total weight | 4.6 kg. Manufacturer guidanceTile weight. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Can be fully reclaimed for use on another building or recycled as crushed aggregate in a wide range of applications. Manufacturer guidanceCan be fully reclaimed for use on another building or recycled as crushed aggregate in a wide range of applications. |
Third party certifications
UKAS

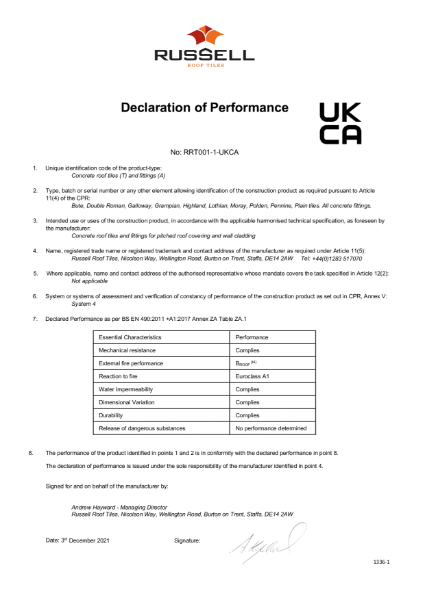

Declaration of Performance
ISO 45001 Health and Safety Management
ISO 45001:2018 Occupational Health and Safety Management System
ISO 9001 Quality Management
ISO 9001
Literature

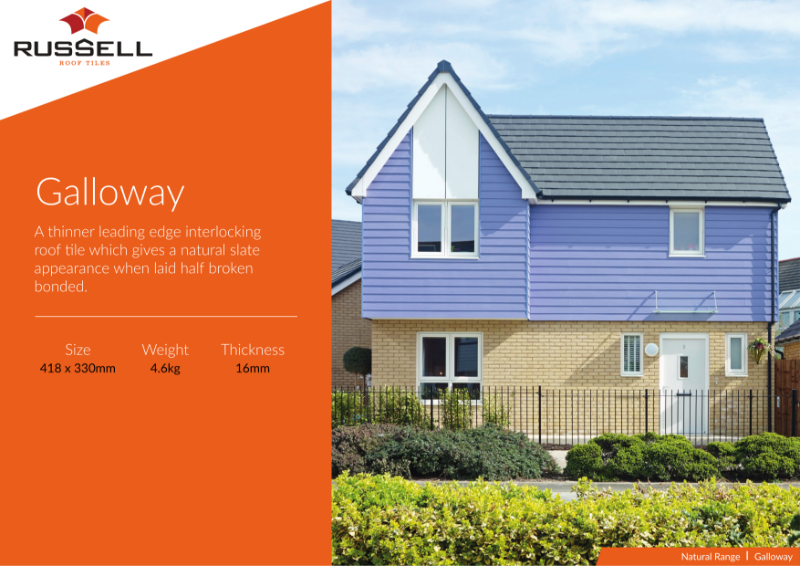

Galloway
Case studies

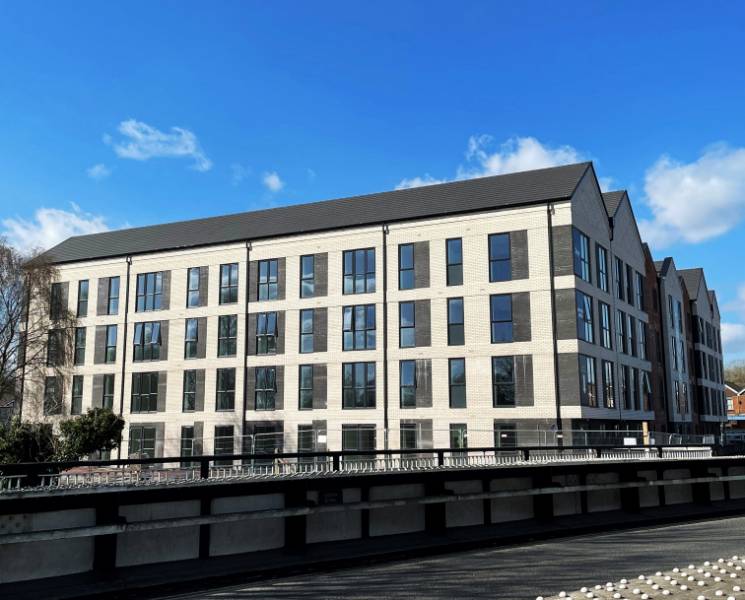

Extra Care, Northwich
