RPA Self-Levelling Adjustable Paving Pedestal
Application

  • Roof areas, terraces, balconies, green roofs.
  • Structural podium decks.
  • Communal/ public areas.
  • Walkways/ wheelchair access ramps.
  • Temporary paving areas.
  • Patio overlays/ renovations.
  • Gardens.

Description

RynoPave pedestals remove the need for extensive ground preparation and manual slope correction, creating perfectly level, long-lasting paving quickly - including on uneven ground.

Suitable for use with all uniform edged paving systems; the self-levelling head and comprehensive height range will accommodate even the most complex paving issues including sloping areas, drainage and maintenance access.

Features and benefits:

  • Quick to install and easy to adjust.
  • Wide supporting base protects membranes.
  • Provides slope-correction of up to 10.5%.
  • Spacer tabs ensure uniform paving.
  • Resistant to mould, algae, alkali, bitumen, UV.
  • Each pedestal has a ten-year guarantee.

Applications:

  • Roof areas, terraces, balconies, green roofs.
  • Structural podium decks.
  • Communal/ public areas.
  • Walkways/ wheelchair access ramps.
  • Temporary paving areas.
  • Patio overlays/ renovations.
  • Gardens.

General information
Material

Polypropylene (recyclable)

Uniclass 2015
Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS

J21/467 Support system for precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/395 Support pedestals

Specification data - Decking and paving pedestals
Product Reference

RPA-1

40–56 mm.

RPA-2

50–70 mm.

RPA-3

70–110 mm.

RPA-4

110–160 mm.

RPA-5

150–210 mm.

RPA-6

200–300 mm.

RPA-7

300–400 mm.

RPA-8

400–500 mm.

RPA-9

500–600 mm.

RPA-10

600–700 mm.

RPA-11

700–800 mm.

RPA-12

800–900 mm.

RPA-13

900–1000 mm.

Spacer tab -
Spacer tab width

2 mm

4 mm

Standard.

6 mm

Accessories

Not required

RDA-DTH

Deck tile head (for laying decking tiles).

RDA-HLR

Head locking ring (for installation into areas that are completely level, locking the self-levelling head in a totally level position).

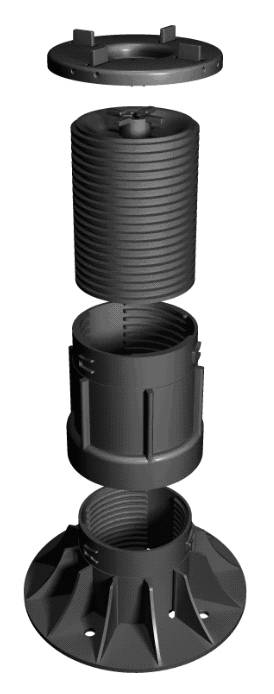

Standard product features

Adjustable threaded section:

Heavy grade threaded section allows for infinite adjustment, within the given range.

Material:

Polypropylene (recyclable).

Compression:

2100 kg.

Base diameter:

  • RPA-1–3: 210 mm.
  • RPA-4–13: 220 mm.

Product Options

Accessories:

- Perimeter spacer:

Provides consistent spacing between the wall abutment and paving.

- Head locking ring:

For installation into areas that are completely level, locking the self-levelling head in a totally level position.
