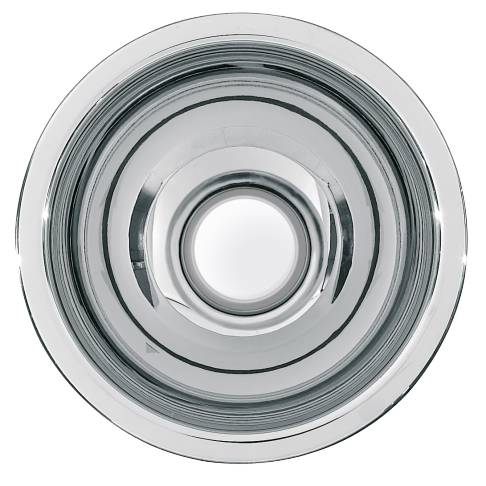

Round Basin - RNDX381
Verified by manufacturer over a year ago
Round inset vanity basin, can be mounted from top or underneath, stainless steel.
Application
For surface or under mounting installation.
Description
Round inset vanity basin, can be mounted from top or underneath.
Features and Benefits:
- Manufactured from stainless steel.
- Satin or polished finish (to bowl interior and exterior).
- Complete with 1¼" waste hole.
- Without overflow.
- Including chrome-plated distance piece, for surface or under mounting installation.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Circle |
Length | 426 mm |
Width | 426 mm |
Height | 159 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Countertop washbasins
Form | Vanity top (inset).Guidance for specification option: Surface mounted or for under mounting. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | Satin.Polished. |
Size | 426 x 426 x 159 mm.Guidance for specification option: Bowl diameter: 381 mm, 1 mm thick. |
Water supply, overflow and waste holes | |
Overflow | Without overflow. |
Waste | 1¼" waste hole. |
Product Reference | (RNDX381) 203.0000.145 Guidance for specification option: Satin finished, 380 mm diameter. (RNDH381) 210.0056.432 Guidance for specification option: High polished, 380 mm diameter. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | Manufacturer guidanceRecyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
