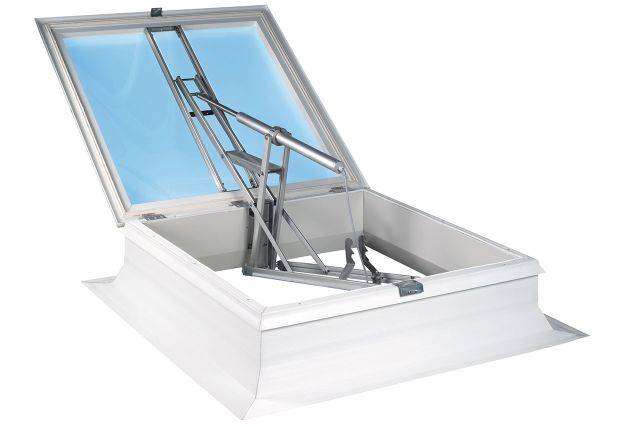

Rooflight Smoke Ventilator AOV
A range of automatic opening smoke vents certified to EN 12101-2.
160° degree opening smoke ventilation system which provides effective natural ventilation which can be connected to a FAS/ BMS or paired with control centres (with support for multiple control groups).
The heavy duty 24 V DC electrically operated opening mechanism ensures the skylight opens within 60 seconds while allowing for use as an air ventilation system during the day when paired with our ventilation switch.
Accreditations:
- CE Marked.
- Certified to EN12101-2.
Size | 1200 x 1200 mm As standard. 1500 x 1000 mm 1500 x 1500 mm |
Uniclass 2015 | |
CAWS | L10/490 Roof ventilators L20/630 Hatches |
Product Reference | SD.AOV Smoke Vents |
Size | 1200 x 1200 mmAs standard. 1500 x 1000 mm1500 x 1500 mm |
Controls | Daily ventilation switchIP40 emergency fireman switchSmoke detectorSuredome AOV 24 V 5A control box |
Kerb | GRP reinforced with steel 300 mmGRP reinforced with steel 500 mmGRP with ventilation fan 500 mmPVC reinforced with steel 300 mmAs standard. |
Glazing | Quad layer polycarbonate glazingSurespan heat stopReflects infrared heat. Triple layer polycarbonate glazingAs standard. Thermally enhanced0.81 W/m²K. |
Accessories | NoneFall through protection barsIntruder Protection barsPersonal protective equipment (PPE) Attachment Point |
Standard product features | Frame: PVC Reinforced with steel inserts. |
Product Options | Size: Optional sizes available, consult manufacturer for details.
|
