Roof Tile Panel
Application

Minimum pitch: 12° after deflection.

Description

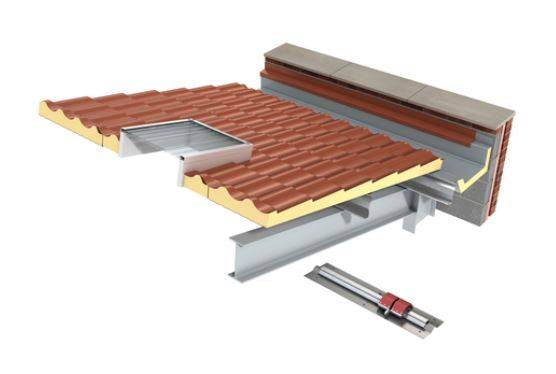

Roof Tile (RT) through-fix, pantile effect, polyisocyanurate insulated roof panel system designed to comply with contemporary Building Standards whilst maintaining a traditional look.

Features and benefits:

  • Provides all of the advantages of insulated panel technology with the aesthetic appeal of a traditional pantile roof finish.
  • Panels are immune to attack from mould, fungi, mildew and vermin.
  • No urea-formaldehyde is used in the construction.
  • Panels are not deleterious.
  • An air leakage rate of 3 m³/hr/m² at 50 Pa or less can be achieved when the full building envelope is constructed using Kingspan panels.
  • Cover width: 1000 mm.

Applications:

Minimum pitch: 12° after deflection.

Approvals:

CE marked to BS EN 14509: 2013.

- Fire:

  • The external and internal faces of the panel to be Class 0 in accordance with the Building Regulations when tested to BS 476: Part 6: 2009 and Part 7: 1997).
  • The panel is rated SAA when tested to BS 476 Part 3: 20
  • FIREsafe: FM 4471 – Class 1 Roof panel systems
  • FIREsafe has passed all the requirements of LPS1181: 2005: Part 1: Issue 1.2, ceiling lining tests by the Loss Prevention Certification Board (LPCB) certified to LPS 1181 Grade EXT-B.

Purlins, side rails and platforms supports:

Framed roof structure to be specified separately to include the following as required:

  • Multibeam purlins.
  • Multibeam eaves beams.
  • Cold-formed cleader angles.
  • Purlin cantilevers.
  • Cladding junctions.
  • Multichannel platform supports.
  • Multichannel trimmers.
  • Rafter stays (RNA/ RNB).

Warranties:

  • Maintenance and inspection free external coating: 40 years. Manufacturer’s external coating warranty to be available on project completion and be fully transferrable for future changes of building ownership.
  • Thermal performance: 25 years.
  • Structural performance: 25 years.

General information

Features

Immune from mould, fungi, mildew and vermin, lightweight

Material

Steel

Size

15700 x 1000 x 45 mm

15700 x 1000 x 60 mm

15700 x 1000 x 80 mm

15700 x 1000 x 100 mm

WarrantyDescription

25 year thermal and structural performance warranty, up to 40 year external coating warranty

Uniclass 2015

Ss_30_40_55_54 Metal insulating sandwich panel roof systemsPrimary

CAWS

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

Specification data - Metal insulating sandwich panel roof systems

Product Reference

KS1000 RT Insulated Roof Panel System - PIR

Design

Insert drawing reference or similar.

Roof pitch

Insert requirement; minimum 12°.

Panel

-

Core insulation

ECOsafe and FIREsafe polyisocyanurate (PIR)

Thermal conductivity

0.20 W/m²K

0.25 W/m²K

0.33 W/m²K

0.45 W/m²K

External facing

-

Material

Steel, 0.5 mm-thick

Colour/ Finish

Kingspan XL Forté™ Symphony, Anthracite

Kingspan XL Forté™ Crescendo, Copper Beech

Kingspan Destral, Terracotta

Kingspan Destral, Jet Black

Internal facing

-

Material

Steel, 0.4 mm-thick

Colour/ Finish

Kingspan CLEANsafe 15

Kingspan AQUAsafe

Kingspan AQUAsafe 55

Kingspan CLEANsafe 120

Panel length

See ‘Options’ and insert requirements.

Primary fasteners

-

Number/ location

See ‘Options’ and insert requirements.

Secondary fasteners

-

Number/ location

See ‘Options’ and insert requirements.

Handing

Left handed

Right handed

Ridge filler

Profiled ridge filler

Cavity barriers

Not required

Kingspan Kooltherm®

Cavity closers

Not required

Kingspan Kooltherm®

Fascia

-

Material

As design

Insert requirements.

Support

Consult manufacturer and insert requirements.

Fasteners

Consult manufacturer and insert requirements.

Jointing

Consult manufacturer and insert requirements.

Soffit

-

Material

As roofing panel

As design

Insert requirements.

Support

Consult manufacturer and insert requirements.

Fasteners

Consult manufacturer and insert requirements.

Jointing

Consult manufacturer and insert requirements.

Gutters

-

Type

Not required

Kingspan External Highline

Kingspan Insulated Membrane Lined

Support

Consult manufacturer and insert requirements.

Fasteners

Consult manufacturer and insert requirements.

Jointing

Consult manufacturer and insert requirements.

Accessories

Consult manufacturer and insert requirements.

Fabrications

Not required

Flashings

Specialist

Consult manufacturer and insert requirements.

Rooflights

Not required

Kingspan Day-Lite Kapture

To be specified separately.

Personal fall protection

Not required

Safeside

To be specified separately.

Standard product features

Cover width:

1000 mm (Between profile ridges: 200 mm).

Ridge depth (external):

40 mm.

Single figure weighted sound reduction index (Rw):

25 dB.

Product Options

Roofing panels:

- Thermal conductivity:

  • 0.20 W/m²K: Core thickness: 100 mm; overall thickness: 140 mm; weight: 13.1 kg/m².
  • 0.25 W/m²K: Core thickness: 80 mm; overall thickness: 120 mm; weight: 12.2 kg/m².
  • 0.33 W/m²K: Core thickness: 60 mm; overall thickness: 100 mm; weight: 11.3 kg/m².
  • 0.45 W/m²K: Core thickness: 45 mm; overall thickness: 85 mm; weight: 10.7 kg/m².

- External facing:

- Colour/ Finish:

  • Kingspan XL Forté™ Symphony, Anthracite: RAL 7016; multi-layer organic coating, embossed with a traditional leather-grain finish.
  • Kingspan XL Forté™, Crescendo, Copper Beech: RAL 040 40 40 BS 04C39; multi-layer organic coating, embossed with a traditional leather-grain finish.
  • Kingspan Destral, Terracotta: RAL 8004; matt polyester organic coating.
  • Kingspan Destral, Jet Black: RAL 9005; matt polyester organic coating.

- Internal facing:

- Colour/ Finish:

  • Kingspan CLEANsafe 15: For use as the internal lining of insulated panels. Standard colour is “bright white” with an easily cleaned surface.
  • Kingspan AQUAsafe: Developed for use as the internal lining of insulated panels to suit high humidity internal environments.
  • Kingspan AQUAsafe 55: For use as the internal lining of insulated panels to swimming pool internal environments.
  • Kingspan CLEANsafe 120: For use as the internal lining of insulated panels where a high level of cleanliness and hygiene is required, and the panels are to be cleaned down on a regular basis.

- Length:

  • Standard lengths: 2.1–11.5 m, or insert drawing reference.
  • Non-standard lengths of <2.1 m or 11.5–15.7 m are available on request; consult manufacturer for details.
  • Panel lengths are based on tile module of 325 mm plus 150 mm for cutbacks of 160 mm (standard) or 100 mm for 100mm cutbacks (for lengths of up to 6.275 m).

- Primary fasteners:

  • Minimum three fasteners for each purlin position at sides of panel (subject to wind loading; consult manufacturer's installation guide for details).
  • Air seal: 8 mm diameter non-setting, gun-grade butyl sealant to be applied at the ridge, eave purlin and rafters.
  • Hip/ valley ridge details: consult manufacturer's installation instructions for details.

- Secondary fasteners:

  • At all ridge locations, gun-grade sealant to be applied to top and bottom of the profile filler, which should be positioned 80–100 mm behind the ridge overlap edge to prevent bird attack.
  • Side laps: 6 mm diameter (approx.) bead of gun-grade sealant to be applied as per manufacturer installation instructions, for air and weather sealing.
  • Low profile colour-headed stitching screws to be installed in every tile module, positioned near the base of the steps at 325 mm centres.

Rooflights:

Rooflights are to be specified fully separately - see Kingspan Light + Air or consult manufacturer for details

Kingspan Energy:

- Solar photovoltaics:

Rooftop Solar PV can be installed onto insulated roof panels - consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 2 2.1
Revit
- 2 2.1
Download now from NBS National BIM Library
Literature
Third party certifications
  • Loss Prevention Certification Board (LPCB): Approved to LPS 1181
