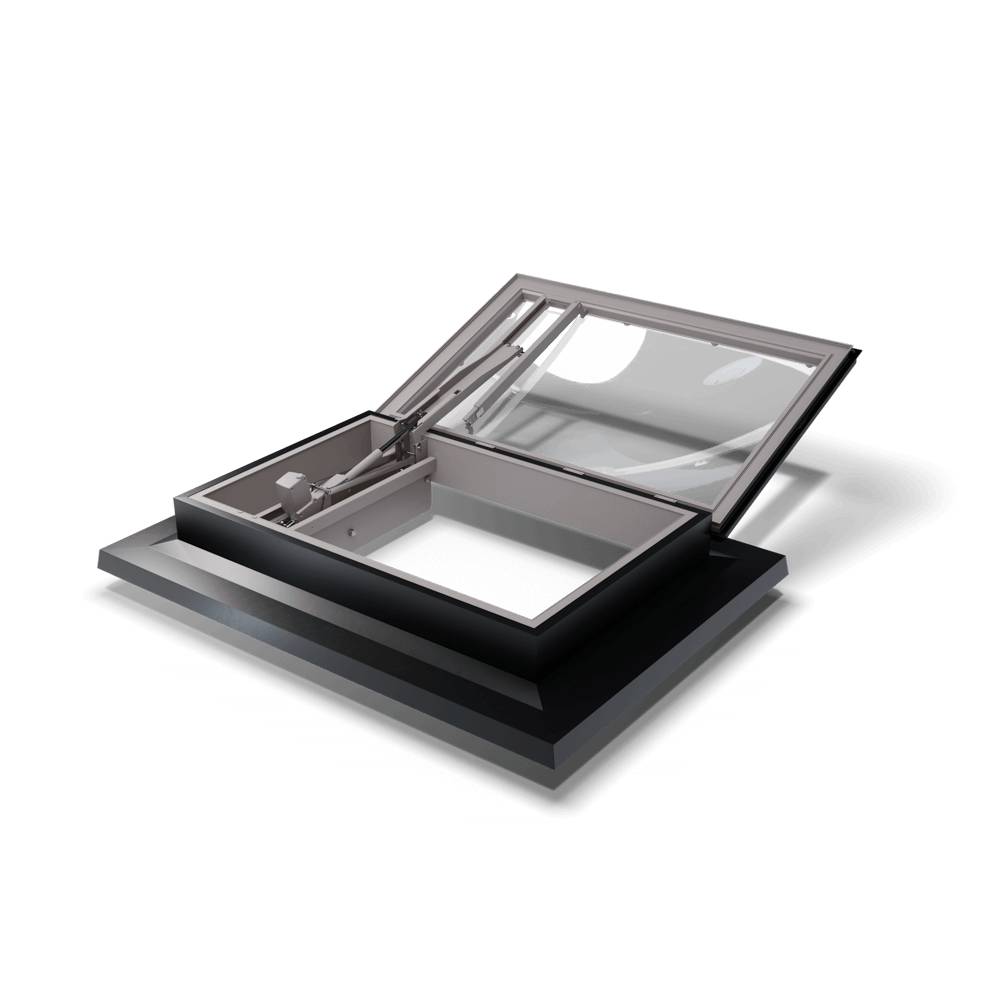

Square Unit - RSL-R.70.70
UK Conformity Assessed (UKCA)
Certificate type
Certificate of constancy of performance
Certificate type
A roof mounted smoke and heat vent for in corridors within residential apartments, hotels, shops and offices.
For smoke and heat ventilation in corridors within residential apartments, hotels, shops and offices.
Roof Single Leaf – Residential (RSL-R) units may be glazed in polycarbonate in single, double, triple or quad skin or with an aluminium insulated solid cover. The polycarbonate roof lights are available as clear, opal or heat reflect. The aluminium insulated covers are available as mill finish or powder coated to any RAL colour.
The electric actuator is 24 volt DC and opens the units to 160° within 60 seconds. A wide range of upstands are available to accommodate roof insulation or an adaptor may be installed to builder’s upstands. Roof Single Leaf – Residential (RSL-R) may also be used for roof access and to provide natural ventilation.
Optional features:
Features and benefits:
Color | Other |
Finish | Mill Powder-coated |
Material | Aluminium Polycarbonate |
Shape | Square Rectangle |
Length | 700 mm 750 mm 800 mm 900 mm 1000 mm |
Width | 700 mm 750 mm 800 mm 900 mm 1000 mm |
Warranty description | Five year Guidance for specification option: Upstand, aluminium or polycarbonate cover and weathering cowl. Two year Guidance for specification option: Electrical actuator/s and opening mechanism/s. |
Uniclass | |
CAWS | L10/47 Roof ventilators L10/490 Roof ventilators |
Standard | To BS EN 12101-2. |
Third-party certification | Certificate of constancy of performance. |
Mounting | Roof-mounted. |
Aerodynamic free area | 0.39 m². |
Reliability classification | Re 1000 (10 000 + 1000). |
Snow load classification | SL 500. |
Low ambient temperature classification | T (-15). |
Wind load classification | WL 750. |
Resistance to heat classification | B300. |
Arrangement | Single leaf roof vent. |
Dimensions | |
Length | 700 mm/ 900 mm.Manufacturer guidanceInternal curb size (daylight)/ Roof opening 300 splayed upstand. |
Width | 700 mm/ 900 mm.Manufacturer guidanceInternal curb size (daylight)/ Roof opening 300 splayed upstand. |
Height | Upstand height: 150 mm.Guidance for specification option: 150 mm Vertical PVC upstand. Upstand height: 300 mm.Guidance for specification option: 300 mm Splayed PVC upstand. |
Controls | LM70100 actuator (24 V d.c., 2.5 A). |
Initiation | Automatic, power open power close. |
Materials | |
Ventilator | |
Frame | Aluminium. |
Glazing | Single glazed polycarbonate.Double glazed polycarbonate.Guidance for specification option: Typical U-value: 2.68 W/(m2.K). Triple glazed polycarbonate.Guidance for specification option: Typical U-value: 1.78 W/(m2.K). Quad glazed polycarbonate.Guidance for specification option: Typical U-value: 1.37 W/(m2.K). Solid insulated.Guidance for specification option: Typical U-value: 0.80 W/(m2.K) (32 mm); 0.48 W/(m2.K) (64 mm). Manufacturer guidanceThe polycarbonate rooflights are available as clear, opal or heat reflect. Insert requirements. |
Finish | Polyester powder-coated.Guidance for specification option: The internal colour is white 9010 as standard; any RAL colour is available externally. Insert requirements. Principal components polyester powder-coated, solid cover mill finish.Manufacturer guidanceThe aluminium insulated covers are available as mill finish or powder coated to any RAL colour. |
Colour | White.Guidance for specification option: Internal. |
Integral upstands | |
Material | 150 mm Vertical PVC upstand.300 mm Splayed PVC upstand.Adaptor for builder's upstand. |
Finish | White internally. |
Colour | White. |
Seals | Co-extruded PVC. |
Guards | None.Fall arrest grid.Guidance for specification option: Fall arrest grid certified to EN 1873 Soft Body Impact 1200 joules is available for protection of opening when in the open position. |
Accessories | None.Aluminium weathering cowl.Guidance for specification option: Purpose made adaptor base available enabling the unit to be installed to builder’s upstand curb or profile roof. Wind deflectors. |
Air permeability | To EN 1873:2014+A1:2016, Class 2. |
