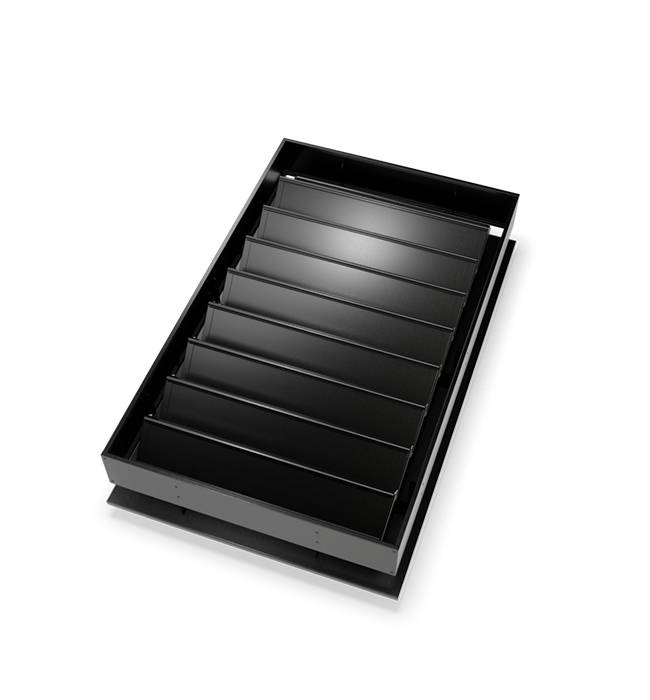

Roof Louvre Blade – Residential (RLB-R)
Certificate of constancy of performance
Certificate type
A range of roof mounted smoke vents with aluminium or glazed louvres.
Suitable for residential and institutional buildings.
The Roof Louvre Blade – Residential range of louvre smoke vent and air supply units are used in natural smoke and heat exhaust ventilation systems. Mounted on roofs, louvre smoke vents exhaust smoke and heat from a building, allowing low level escape routes to be kept clear of smoke. They may also provide natural comfort ventilation.
They are available in a wide range of sizes and types of upstands. They may be installed at any angle from 0 to 90°, but are generally installed horizontally and supplied with aerodynamic windshields as standard. They consume minimal energy during the opening and closing cycle and have high resistance to weather and are therefore suited for use on exposed and high wind areas. They provide good security, are impact resistant and do not create a fall hazard when open.
Features and benefits:
Color | White Other |
Finish | Powder-coated Mill |
Material | Aluminium Glass |
Shape | Rectangle |
Length | 966 mm 1186 mm 1406 mm 1626 mm 1846 mm |
Width | 500 mm 600 mm 700 mm 800 mm 900 mm |
Warranty description | Five year Guidance for specification option: RLB-R: Upstand, aluminium louvres. RLB-RG: Upstand, unit. Two year Guidance for specification option: RLB-R: Electrical actuator/s and opening mechanisms. RLB-RG: Electrical actuator/s and opening mechanisms, double-glazed louvres. |
Uniclass | |
CAWS | L10/47 Roof ventilators L10/490 Roof ventilators |
Standard | To BS EN 12101-2. |
Third-party certification | Certificate of constancy of performance. |
Mounting | Roof-mounted. |
Aerodynamic free area | Manufacturer guidance0.29–6.06 m2, depending on unit size. Consult manufacturer's literature and insert requirements. |
Reliability classification | Re 1000 (10 000 + 1000). |
Low ambient temperature classification | T (-25). |
Resistance to heat classification | B300. |
Arrangement | Louvred. |
Dimensions | |
Length | Manufacturer guidanceAvailable in sizes from 966 x 500 mm up to 3826 x 2400 mm. Consult manufacturer's literature and insert requirements. |
Width | Manufacturer guidanceAvailable in sizes from 966 x 500 mm up to 3826 x 2400 mm. Consult manufacturer's literature and insert requirements. |
Controls | 1 A 24 V d.c. actuator(s).Guidance for specification option: Larger sizes have tandem actuators. |
Initiation | Automatic, power open power close. |
Materials | |
Ventilator | |
Frame | Aluminium. |
Louvres | Insulated aluminium.Guidance for specification option: Typical U-value: 1.75 W/(m2.K). |
Finish | Polyester powder-coated.Mill finish. |
Colour | Manufacturer guidancePolyester powder-coating to any standard RAL colour. Consult manufacturer and insert requirements. |
Integral upstands | |
Material | Adaptor base.Insulated upstand. |
Seals | EPDM rubber. |
Guards | None.Bird.Insect. |
Accessories | S3 - Flange for roofs and facades.S4 - Flange for roofs and facades.S5 - Flange for upstand, 90° bended.Guidance for specification option: Standard profile. Custom flange.Guidance for specification option: Custom flange design and insulated flanges upon request. Consult manufacturer and insert requirements or refer to a drawing. |
Watertightness | To EN 1873, Pass. |
FireRating | To BS 476-3, AA. |
