Roof Lantern Pyramid - Glass Rooflight

Verified by manufacturer 2 days ago

1000 x 1000 mm Roof Lantern

Brett Martin Daylight Systems Variant:

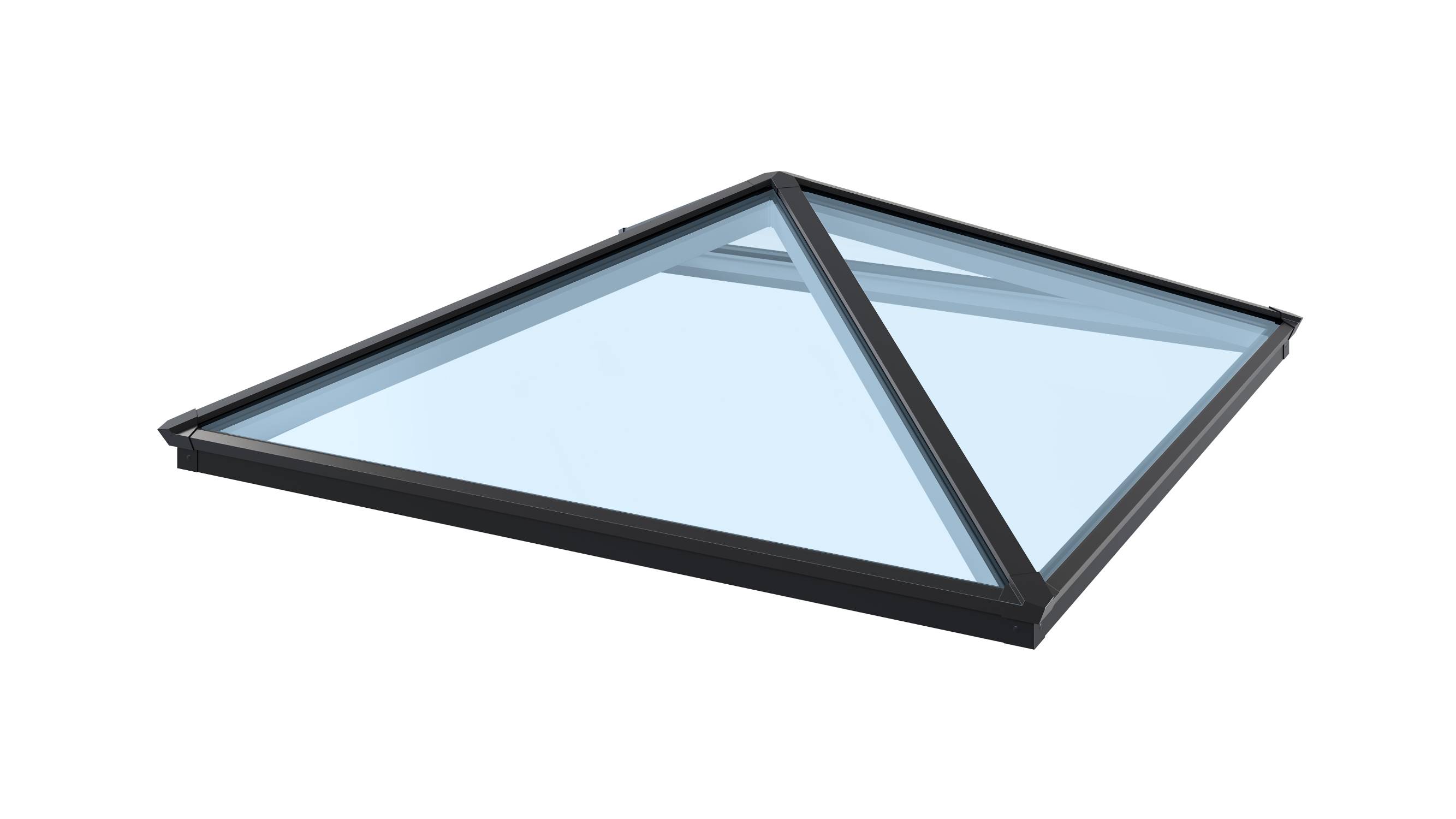

A pyramid shaped glass roof lantern.

Jump to:
+44 (0)24 7660 2022 Website

Application

Rooflight applications.

Description

Pyramid shaped glass rooflight with four glass panels and a slimline profile to allow more light to pass through.

Easy to install and features laminated internal panes to prevent falling shards in case of breakage from the outside.

Features and benefits:

  • Glass rooflight with slender aluminium frame offering clean sight lines and neat junctions.
  • Rapid single point delivery in 3–5 days from order.
  • Designed for rapid installation with no silicone sealant other than to seal between roof and rooflight.
  • Laminated inner glass pane protecting those below from falling glass in the event of accidental breakage.
  • Highly thermally efficient with thermally broken frame and Low-E double glazing.
  • Ten-year warranty available.
  • Available in four standard sizes and bespoke sizes.
  • Choice of clear self-clean or blue solar-control self-clean glass as standard.
  • Special glass options also available.
  • Precision aluminium castings and ridge cap.
  • Aluminium frame powder coated internally and externally with colour combinations of RAL 7016 grey, RAL 9010 white and RAL 9005 black.
  • Designed for simple mounting direct to a weathered builder’s upstand.

General information

Color

Grey

Black

White

Finish

Powder-coated

Material

Glass

Aluminium

Shape

Square

Length

1000 mm

1500 mm

2000 mm

2500 mm

Bespoke

Width

1000 mm

1500 mm

2000 mm

2500 mm

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/45 Rooflights

L10/460 Rooflights

Specification data - Framed rooflights

Classification data

Form

Pyramid.

Size

1000 x 1000 mm.

Product performance

-

Fire performance

-

Reaction to fire

To EN 13501-1, Class A.

Whole window U-value

1.87 W/m²·K.

Frame

-

Material

Aluminium.

Finish

-

Coating

Powder coating.

Colour

RAL 7016, grey.
RAL 9010, white.
RAL 9005, black.

Film thickness (minimum)

Coating applicator to determine.

Glazing or infill

-

Type

Insulating glass units.

Construction

Double skin.

Colour

Clear.

Guidance for specification option:

  • Transmission: 75%.
  • Reflectance in/ out: 17%/ 17%.
  • G-value: 66%.
  • Shading coefficient: 0.76.

Blue solar control.

Guidance for specification option:

  • Transmission: 52%.
  • Reflectance in/ out: 14%/ 16%.
  • G-value: 46%.
  • Shading coefficient: 0.53.

Coating

Self clean.

Guidance for specification option:

As standard.

Aqua solar self clean.

Guidance for specification option:

Optional.

Neutral solar self clean.

Guidance for specification option:

Optional.

Integral kerb

Aluminium.

Weight

56 kg.

Sustainability data

Material

Glass
Aluminium
