Application

  • Education.
  • Perimeter demarcation and security.
  • Offices.
  • Parks.
  • Playgrounds.
  • Residential.

Description

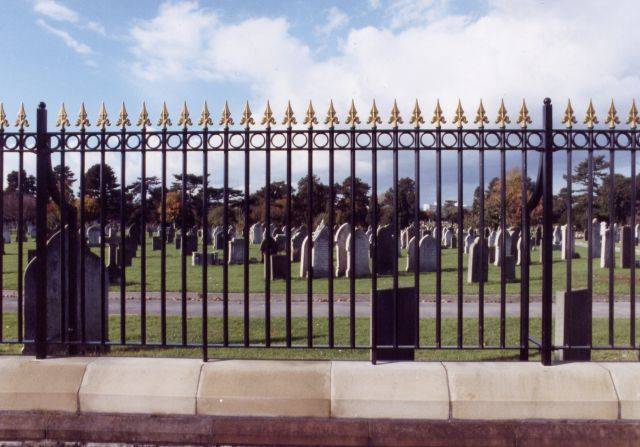

Rondo Railings are the most traditional style and feature a strong aesthetic. Panels of Rondo Railings consist of horizontal rails top and bottom with either CHS (circular hollow section) or solid vertical bar infill. Panels are mounted on square RHS (rolled hollow section) steel posts. In addition to the circular detail between the tops of the vertical bars, each bar can optionally be fitted with a decorative finial.

Features and benefits:

  • Choice of heights.
  • Choice of styles.
  • RAL colours.
  • Available in Secured by Design option - consult manufacturer for details.

Applications:

  • Education.
  • Perimeter demarcation and security.
  • Offices.
  • Parks.
  • Playgrounds.
  • Residential.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Uniclass 2015
Metal vertical pale fencing systems (Ss_25_14_63_52)Primary
Specification data - Metal vertical pale fencing systems
Product Reference

Rondo Railings RL-RD-507

Size

As drawing

Insert details.

As schedule

Insert details.

Colour/ Finish

Hot dip galvanized

Polyester powder coated, RAL

Insert colour requirements.

Standard product features

Bay width:

2750 mm.

Top and bottom rail:

50 x 25 mm.

Mid rail:

  • 1.0, 1.2 or 1.5 m high: 40 x 10 mm.
  • 1.8, 2.0, 2.4 or 3.0 m high: 50 x 10 mm.

Bars (tubular and solid):

Varies depending on height, consult manufacturers literature for details.

Product Options

Size:

Railing heights: 1.0, 1.2, 1.5, 1.8, 2.0, 2.4 or 3.0 m.

Colour/ Finish:

Available hot dipped galvanized and coated polyester powder coated in any colour.
