Roller Shutter Lintels
Application

The lintel design can cater for traditional, timber frame and off-site modular construction. Applications include schools and colleges, health and welfare facilities, community and sport centres, commercial and prestige residential developments. Upon request IG can supply CAD details of the specially developed roller shutter and can provide an extensive client support service.

Description

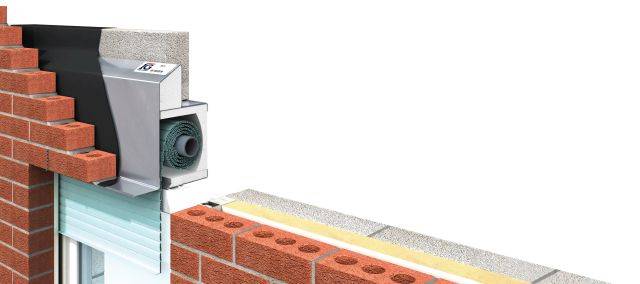

IG’s Roller Shutter Lintel (L1/RSL) is a unique and innovative lintel solution designed to incorporate a security shutter system with a structural lintel. Integrated into the fabric of the building, IG’s roller shutter lintel ensures unobtrusive and enhanced aesthetics with increased security.

Benefits:

  • Fully insulated box around roller shutter.
  • Removable panel allows access to roller shutter for maintenance.

When the shutter is in the raised position, the window or door opening looks no different from any other structural opening. In the lowered position, the system provides a secure barrier against intruder and vandalism attack. Custom made designs such as those for curved and arched windows are also available. Please note that IG supply the Roller Shutter Lintel only and not the cavity closer guides or shutter.

Applications:

The lintel design can cater for traditional, timber frame and off-site modular construction. Applications include schools and colleges, health and welfare facilities, community and sport centres, commercial and prestige residential developments. Upon request IG can supply CAD details of the specially developed roller shutter and can provide an extensive client support service.

General information

Size

Insert requirements.

Material

Galvanized steel

To BS EN 10346: 2009.

Stainless steel

Grade 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Uniclass 2015

Pr_20_85_48_11 Carbon steel lintelsPrimary

CAWS

F30/755 Prefabricated steel lintels

F30/85 Prefabricated steel lintels

Specification data - Carbon steel lintels

Product Reference

L1/RSL

Size

Insert requirements.

Material

Galvanized steel

To BS EN 10346: 2009.

Stainless steel

Grade 1.4307 to BS EN 10088-2. Other grades available on request: contact manufacturer.

Product Options

Size:

Provide details for:

  • Outer wall width.
  • Cavity width.
  • Inner wall width.
  • Nominal height.
  • Overall length required.

Technical characteristics:

For Uniformly Distributed Load (UDL) figures, height and thickness of lintel ranges, consult manufacturers literature for details.
