Roller Shutter - Insulated
Verified by manufacturer 4 months ago
Insulated Roller Shutter - Standard
Insulated Roller Shutter - Standard
Health & Safety Accreditation
Certificate type
ISO 9001 Quality Management
Certificate type
dhf certificate
Certificate type
Insulated roller shutters. British manufactured, environmental shutters, standard or high speed.
Application
For commercial use. Applications include:
- Manufacturing buildings.
- Industrial buildings.
- Storage/ distribution warehouses.
- Secure areas where frequent access is required (high-speed model only).
Description

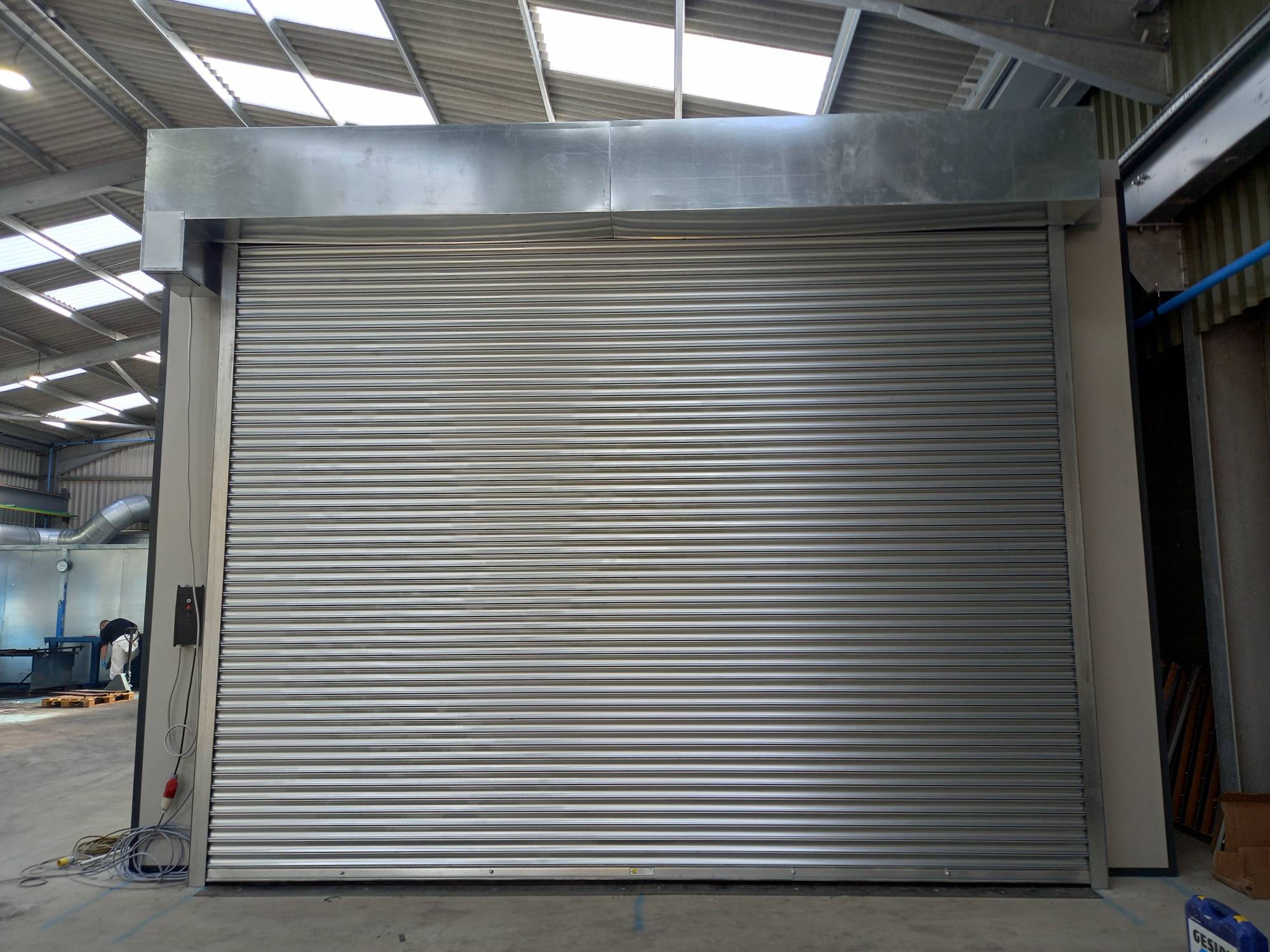

Electrically operated steel roller shutter with 85 x 25 mm double skin interlocking galvanized steel laths and nylon end locks. This shutter is designed to comply with the current British and EEC safety regulations. Optional specification levels can be varied to meet any special operational requirements.
Features and benefits:
- Compliant with PR EN 13241-1:2003, manufactured and installed to ISO 9001/2001 and is CE marked.
- Constructed from 85 x 25 mm double skin interlocking galvanized steel sections and retained at ends by nylon end locks.
- The door curtain is made up from an insulated lath section giving a thermal insulation value of 0.69 W/m²K across the lath section and an acoustic value reduction of 18 dB across the lath section.
- Fitted with a purpose-designed extrusion complete with interlocking EPDM rubber weather seal.
- Full automatic operation via control panel by remote induction loop, radio control, with full safety systems. (optional)
General information
Color | Grey |
Finish | Galvanized |
Material | Steel Rubber (EPDM) Weatherseal. |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | LPCB assessed/ approved; UL Listed; CE marked.Loss Prevention Certification Board (LPCB): Assessed to ISO 9001; approved to LPS 1056 and LPS 1271. |
Opening sizesInsert requirements. Standard maximum opening size: 7000 x 6000 mm. | Up to 10 000 mm. |
Format | Thermally insulated. |
Arrangement | Vertical, fitted into reveal. |
Performance | - |
Watertightness | Manufacturer's standard. |
Resistance to wind load | Manufacturer's standard. |
Acoustic performance | 18 dB. |
Thermal resistance | 0.69 W/m²K. |
Shutter curtain | - |
Lath material | Steel.Standard. Aluminium.Consult manufacturer for details. |
Profile | Flat. |
Finish and colour | Galvanized.Standard. Plastisol coated, colour.Consult manufacturer for options and insert requirements. Powder coated, colour.Consult manufacturer for options and insert requirements. |
Frame and guides | - |
Material | Steel. |
Finish | Galvanized. |
Colour | Silver.RAL.Standard RAL colours available in a choice of finishes. |
Installation fasteners | Three no. M12 hex bolts. |
Operation | - |
Mode | Automatic.Optional. Manual, push button.Standard. Manual, security key switch. |
Accessories | None.Hood covers and flashings.Motor hood covers and flashings.ATEX compliance.Consult manufacturer for details and insert requirements. Vision windows.Consult manufacturer for details and insert requirements. |
Opening speed | 0.1–0.2 m/s. Dependent on door size and weight. Closing speed is comparable. |
Sustainability data
Country of product manufacture | United Kingdom |
RecyclabilitySteel and metal components widely recycled. | - |
