Roller Shutter door Armourguard N2S - Security Shutter

Verified by manufacturer 14 days ago

HAG Ltd. - The Door Specialists Third party certifications:
  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Made in Britain

    Made in Britain

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • Warringtonfire

    Warringtonfire

    Certificate type

  • ISO 9001:2015

    ISO 9001:2015

    Certificate type

Security shutter providing a medium level of security with through vision and ventilation.

Jump to:
0800 072 3444 Website

Application

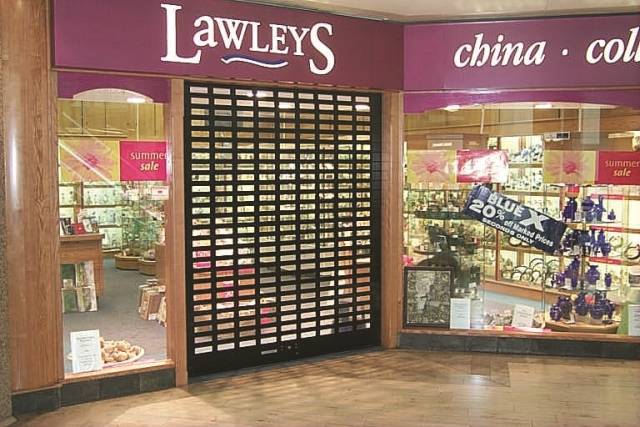

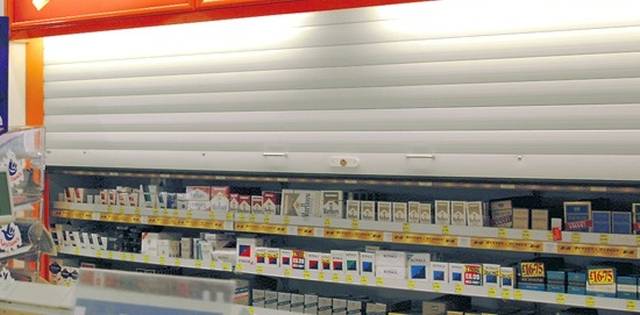

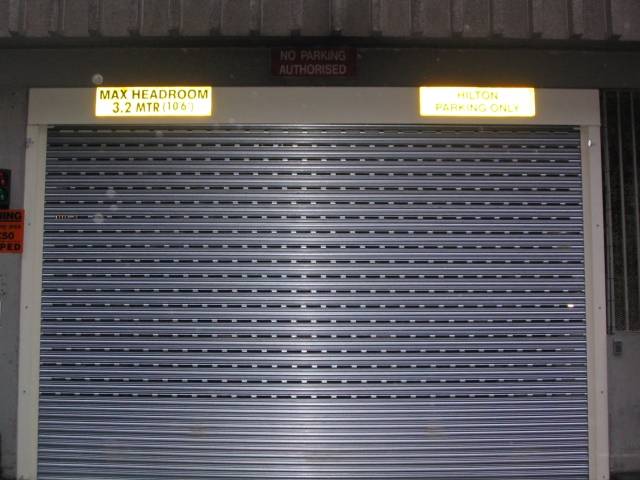

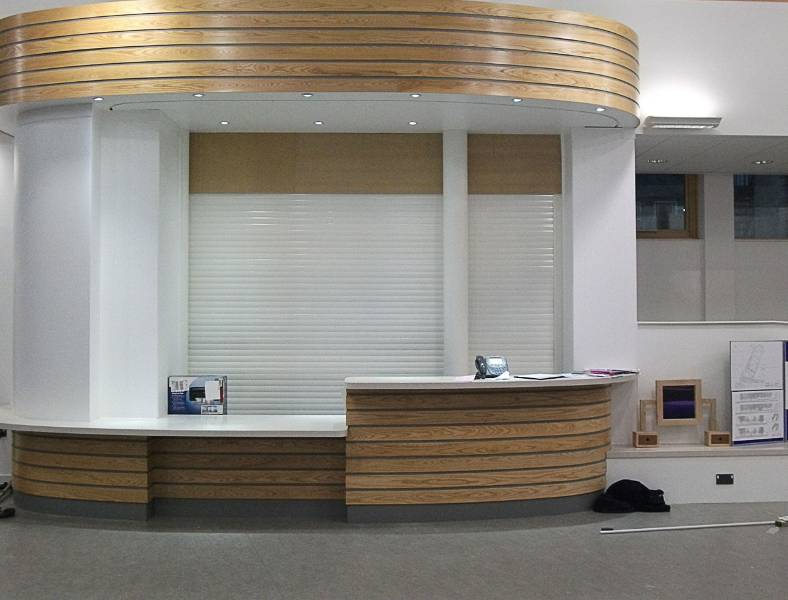

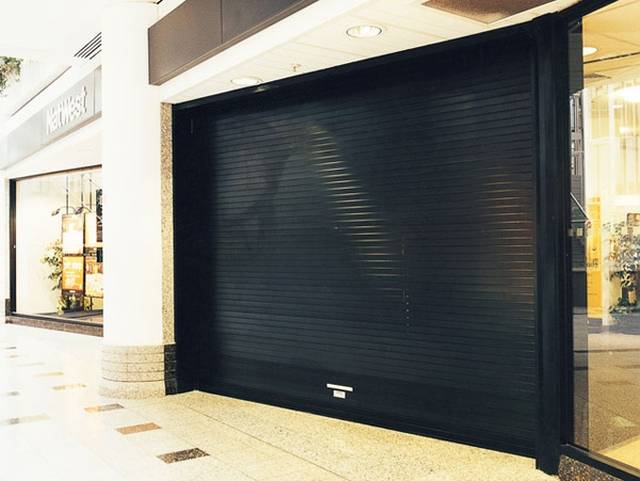

Suitable for commercial applications where high vision and/ or ventilation is a requirement, including kiosks, bars, shop fronts and car parks.

Description

Security shutter providing a medium level of security with through vision and ventilation.


Features and benefits:

  • Roller shutter made from 76 mm curved solid 22 gauge galvanized steel lath.
  • Punched 150 x 50 x 45 mm pitch apertures , allowing 25% air flow.
  • Galvanized steel standard finish or polyester powder coating.
  • Recommended maximum width of 8000 mm.
  • Available in ‘brick’ or ‘in line’ patterns.

General information

Color

Silver

Other

500 RAL and BS colours available.

Finish

Galvanized

Standard.

Powder-coated

Polyester powder-coated (PPC).

Material

Steel

Shape

Rectangle

Length

Bespoke

Width

Maximum width.

8000 mm

Height

Bespoke

WarrantyDescription

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/60 Doors

L20/610 Roller shutters/ curtains

Product range

Armourguard Roller Shutters

Specification data - Roller shutters

Opening sizes

Insert requirements, maximum width: 8000 mm.


Shutter curtain laths: 50 x 0.71 mm.

Standard guide rails: 38–100 x 32 x 3 mm dependent on width.


Box size:

  • Up to 2050 mm width: 254 mm.
  • Up to 2800 mm width: 305 mm.
  • Up to 3500 mm width: 355 mm.


Electric shutters require a 50 x 50 mm steel box section (both sides) used to allow for motor unit and safety brake.


A 76 x 50 mm box section will be used for shutters over 160 kg in weight (5000 x 3200 mm approximately).

-

Format

Internal.

Arrangement

Vertical operation.

Shutter curtain.

-

Lath material

Galvanized steel.

Profile

Laths normally 76 x 0.71 mm.

Curved, with 'inline' apertures.

Curved, with 'brick bond' apertures.

Finish and colour

Galvanized.

Standard.

Polyester powder-coated, colour.

500 RAL and BS colours available.

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Polyester powder-coated.

As shutter curtain.

Colour

Galvanized.

Standard.

Polyester powder-coated, colour.

500 RAL and BS colours available.

As shutter curtain.

Frame accessories

None.

Shutter box design.

0.91 mm bright spangle galvanized pressed steel coil casing available in various different designs to suit individual circumstances.

Operation

-

Mode

Manual, spring loaded.

Electrical, single phase.

Electrical, three-phase.

Control

Rocker switch.

Security key switch.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

90

Recycled content

5 %
