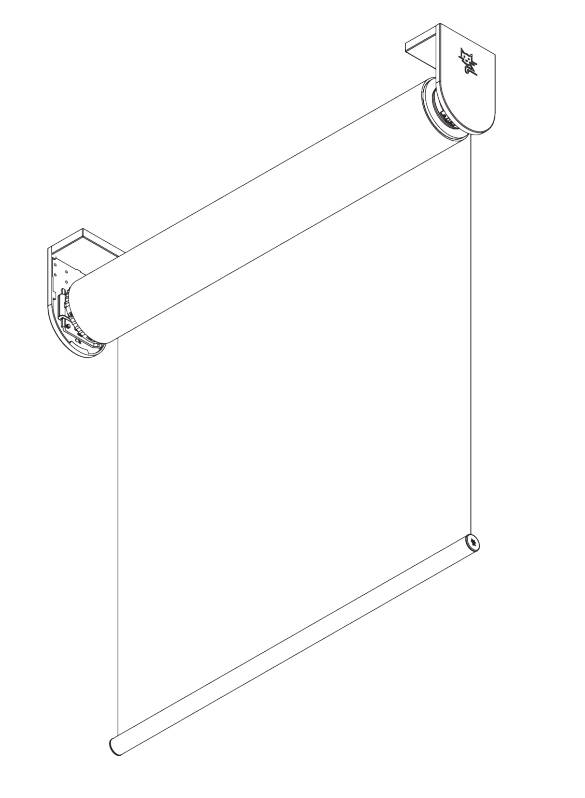

Roller Blind - Motorised - Heavy Duty - Silent Gliss SG 4980 - Motorised Roller Blind

Verified by manufacturer 6 days ago

Silent Gliss Ltd

Motorised roller blind for medium to large applications. Recomended for large blinds with long drops. Suitable for commercial and residential interiors.

Jump to:
+44 (0)1843 863571 Website

Application

Roller blind has varied fixing possibilities to wall, ceiling or recess are available.Roller blind suitable for use in a commercial and residential applications, including:

  • Internal window shading.
  • Can be ceiling, wall or recess fixed to a variety of surfaces.
  • Can be recess mounted inside a reveal.
  • Can be recess mounted inside a headbox.
  • Can be wall fixed with a fascia box.

Description

Motorised roller blind available in a range of colours and fabric options.

Features and benefits:

  • Ideal for large windows up to 4 m width and 12 m depth.
  • Particularly suited to tall windows (up to 12 m).
  • Superior motor technology for quiet, fast, and smooth operation.
  • Wide range of control options including hard-wired, radio control handsets and switches, hub/App, and integration into building control systems.
  • Soft stop for smooth operation.
  • Choose from a wide range of flame retardant fabrics, including screens.
  • Stainless steel brackets, adjustable for vertical alignment.
  • Hardware available in white, black or grey.

General information

Color

Black

Grey

White

Other

Finish

Powder-coated

Material

Stainless steel

Fabric

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_72 Roller blindsPrimary

CAWS

N10/70 Blinds

N10/240 Blinds

SKU Code

SG 4980

Specification data - Roller blinds

Classification data

Standards

To BS EN 13120.

Position

Ceiling/ top fixed.
Wall/ face fixed.
Recess fixed.

Dimensions (minimum width x depth)

-

Manufacturer guidance

  • Maximum width: 4000 mm.
  • Maximum depth: 12 000 mm.
  • Maximum area: 36 m².

Minimum width dependent on motor specified. Recommended width to height ratio is maximum 1:3; consult manufacturer for more details and insert requirements.

Headrail

-

Material

Stainless steel.

Colour

White.

Guidance for specification option:

RAL 9016.

Grey.

Guidance for specification option:

RAL 7035.

Black.

Guidance for specification option:

RAL 9005.

Other.

Guidance for specification option:

Special colours possible; consult manufacturer for more details and insert requirements.

Blinds

-

Material

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Finish

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Colour

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Pattern

Guidance for specification option:

Consult manufacturer for more details and insert requirements.

Tube

-

Material

Manufacturer's standard.

Diameter

80 mm.

Operation

SG 11255 24 V d.c. motorized.

Guidance for specification option:

  • 50-Series (Smart by Silent Gliss).
  • Minimum system width: 700 mm.
  • IP 30.
  • 3 A.
  • 20 rpm.

SG 11947 100–240 V a.c. motorized.

Guidance for specification option:

  • 40-Series.
  • Minimum system width: 950 mm.
  • IP 30.
  • 1.1 A.
  • 20 rpm.

SG 11948 24 V d.c. motorized.

Guidance for specification option:

  • 40-Series.
  • Minimum system width: 700 mm.
  • IP 30.
  • 3 A.
  • 20 rpm.

SG 11725 100–240 V a.c. motorized.

Guidance for specification option:

  • Standard.
  • 25-Series.
  • Minimum system width: 950 mm.
  • IP 30.
  • 1.1 A.
  • 20 rpm.

Accessories

Not required.
Side guides.

Guidance for specification option:

Additional parts:

  • 2 x SG 3036 bracket 47 mm.
  • 2 x SG 4944 side guide end cover.
  • 2 x SG 4946 side guide wire rope fastener.
  • 2 x SG 4947 side guide wire rope fastener.
  • 2 x SG 4948 side guide wire ø 1.5 mm.

Adjustable end stop.
Other.

Guidance for specification option:

Manufacturer offers a wide range of accessory components; consult manufacturer's literature for more details and insert requirements.

Maximum weight

23 kg.

Bottom bar

SG 10760 bottom bar round.
SG 10770 bottom bar square.
SG 4903 bottom bar.

Bottom bar

White.

Guidance for specification option:

RAL 9016.

Grey.

Guidance for specification option:

RAL 7035.

Black.

Guidance for specification option:

RAL 9005.

Other.

Guidance for specification option:

Special colours possible; consult manufacturer for more details and insert requirements.

Controls

Wall switch.

Guidance for specification option:

System can be operated by fixed wall switch.

SG control N.

Guidance for specification option:

  • Various radio hand-help and wall transmitters available.
  • Compatible with the Silent Gliss Move app.

SG control R.

Guidance for specification option:

  • Various radio hand-help and wall transmitters available.
  • An external receiver is required.

Smart.

Guidance for specification option:

  • Smart by Silent Gliss.
  • Open designed two-way communication system which allows to flawlessly integrate products with most major building management systems.

Fixing type

SG 4984 end cover.
SG 4986 end cover.
SG 4988 bracket.
SG 4906 plate (set SG 4949).
SG 6951 pan head screw coated M6 x 70 mm.

Orientation

Fabric roll-off window side.

Guidance for specification option:

Standard.

Fabric roll-off room side.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Stainless steel
Fabric
Aluminium

Literature

SG 4980 - Data Sheet

SG 4980 - Data Sheet

Roller and Dimout Blinds Brochure by Silent Gliss (0625)

Roller and Dimout Blinds Brochure by Silent Gliss (0625)

CPD materials

Smart Shading Connected Homes

Smart Shading Connected Homes

Solar Control in Modern Interiors

Solar Control in Modern Interiors
