Rollashield Steelroll - Steel Roller Shutter
Verified by manufacturer 6 months ago
Alcumus SafeContractor
Certificate type
ISO 9001 Quality Management
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type

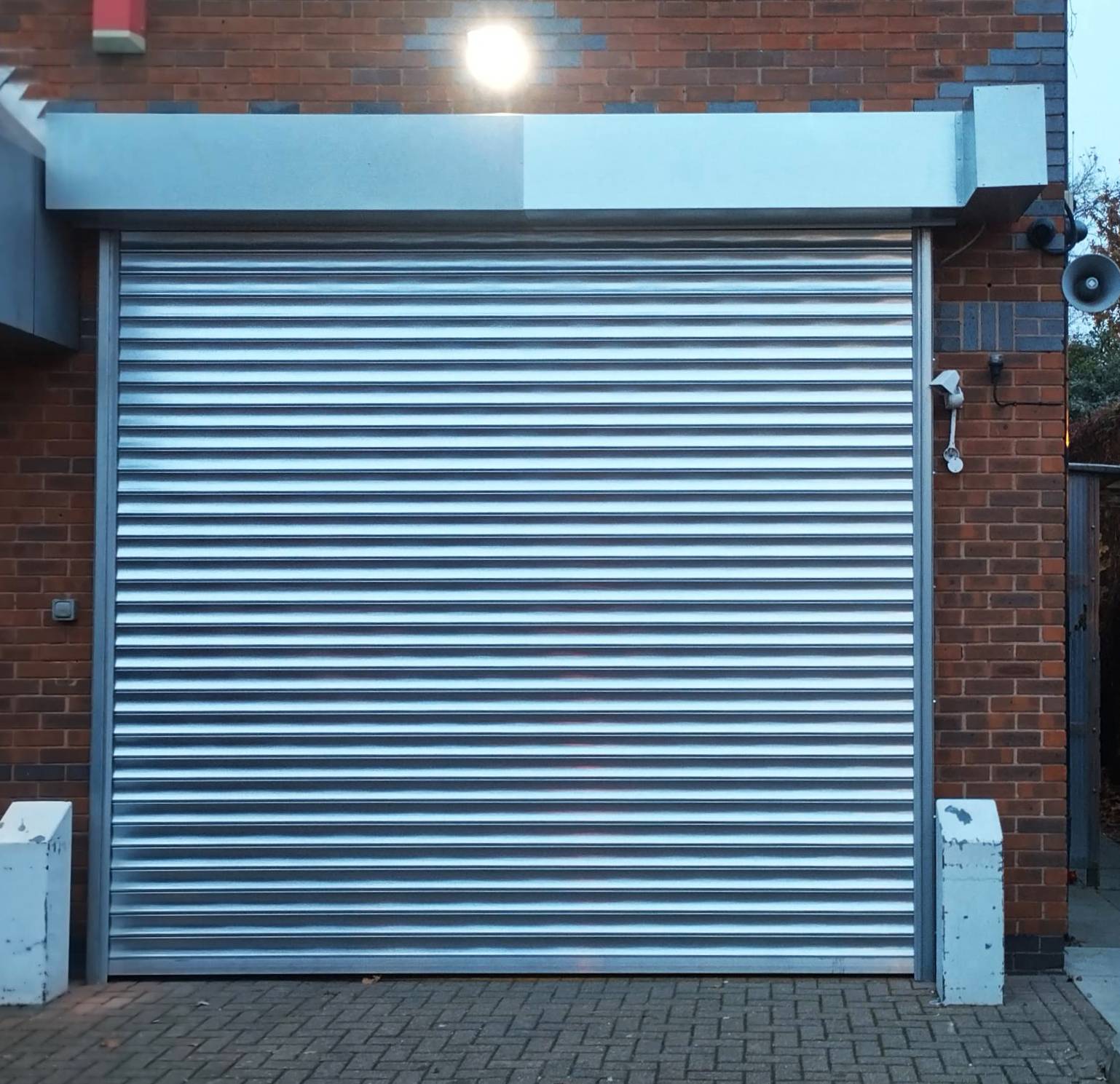

Rollashield Steelroll shutter doors are designed to offer a simple and effective security and access control solution for industrial applications.
Application
- Industrial units.
- Entranceways
- Plant rooms.
- Confined headroom areas.
Description
The doors are constructed from heavy-duty, steel lathes and can be manufactured to large sizes, making them a popular solution for external applications where insulation is not required.
These shutters are available in a standard galvanized finish, or a large range of powder coat or plastisol colours. Available with either a single phase or three phase motor, and various vision window options, these versatile shutter doors are suitable for a range of applications; from entrance security to warehouse doors.
Available with additional safety features (safety edge and photocells) this range is tested to fully comply with the relevant British and European safety standards. The doors can be operated by; push button, keyswitch and remote controls to suit-specific requirements.
Features and benefits:
- Robust security barrier.
- Highly customizable design.
- Range of various finishes available.
- Simple and reliable operation.
General information
Color | Other Guidance for specification option: RAL colours available, consult manufacturer. |
Finish | Galvanized Powder-coated |
Material | Steel Guidance for specification option: Curved steel lath running within steel profiled side guides. |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/60 Doors L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | To BS EN 12604, BS EN 12453, BS EN 10346. |
Opening sizes | 7500 x 7500 mm (maximum).Guidance for specification option: W x H: Insert requirement. |
Format | External.Internal. |
Arrangement | Vertical, face-fitted across opening.Vertical, fitted into reveal. |
Performance | |
Resistance to wind load | To BS EN 12424, Class 3. |
Acoustic performance | Manufacturer guidanceNot applicable. |
Thermal resistance | Manufacturer guidanceNot applicable. |
Air permeability | Manufacturer guidanceNot applicable. |
Shutter curtain | |
Lath material | Steel, 22G.Steel, 20G.Steel 18G.Manufacturer guidanceScroll lath. |
Profile | Curved, 19 x 75 mm. |
Finish and colour | Galvanized.Guidance for specification option: Standard. Powder-coated.Guidance for specification option: Optional to external face of shutter curtain. Plastisol-coated.Guidance for specification option: Optional to external face of shutter curtain. |
Frame and guides | |
Material | Steel. |
Finish | Galvanized.Guidance for specification option: Standard. Powder-coated.Guidance for specification option: Optional. Plastisol-coated.Guidance for specification option: Optional. |
Colour | RAL.Guidance for specification option: Any RAL colour, insert requirement. |
Operation | |
Mode | Hand chain with geared socket drive.Motorized with heavy duty three-phase motors. |
Control | Manual, secured with padlockable chain keep. |
Accessories | Not required.Manual override.Guidance for specification option: For use in the event of a power failure. Push button.Key switch.Remote control. |
Opening speed | 0.3–0.5 m/s. |
Power supply | 415 V, three phase. 230 V, single phase. |
Emergency release | Hand crank. Guidance for specification option: Standard. Chain operation. Guidance for specification option: Optional. UPS battery backup. Guidance for specification option: Optional. |
Control panel | Electronic control panel complete with push buttons. |
Safety | Push-to-run. Guidance for specification option: Standard. Wired Safety Edge & Photocells. Guidance for specification option: Optional. Wireless Safety Edge & Photocells. Guidance for specification option: Optional. |
Vision panels | None. Guidance for specification option: Standard. Perspex insert, 25 x 150 mm. Guidance for specification option: Optional. |
Operating temperature range | +1 to +50°C. |
Sustainability data
Material | Steel Guidance for specification option: Curved steel lath running within steel profiled side guides. |
