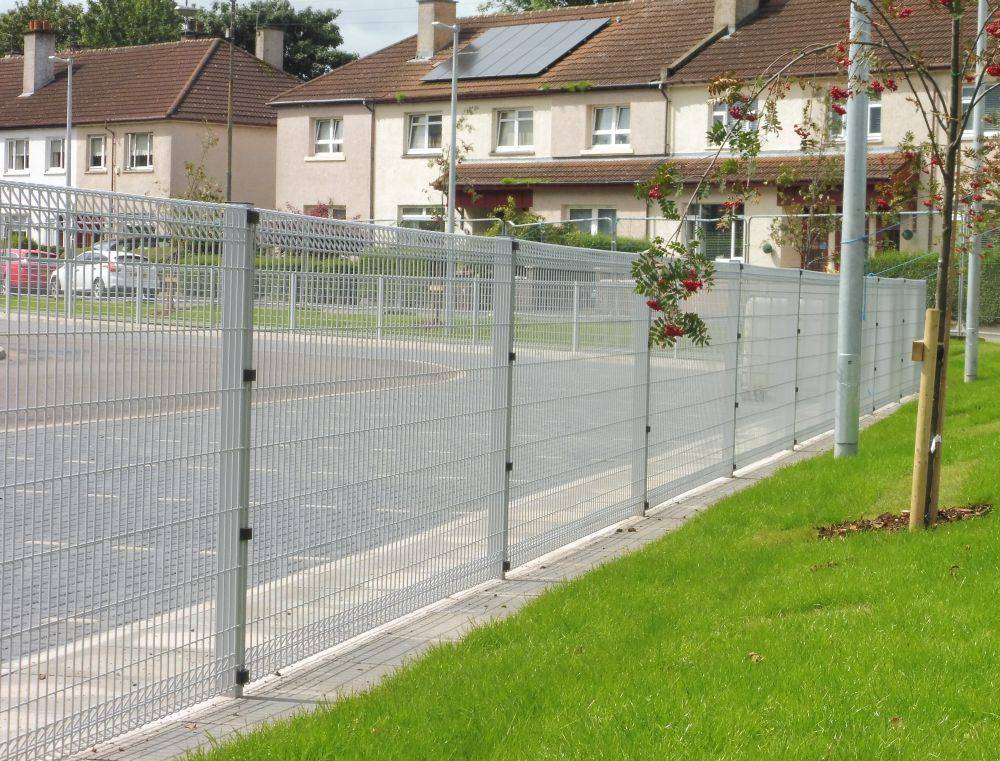

Roll Top + Nylofor-Twilfix - Metal Mesh Fence Panel

Application

Suitable for schools, playgrounds and sport stadia.

Description

Roll Top® fencing utilizes user-friendly top and bottom rolled edges for enhanced safety and rigidity.


Features and benefits:

  • High quality appearance, long life and low maintenance through the use of galvanized wire and high build bonded polyester coating.
  • Fast installation.
  • Ideal for safety while maintaining levels of visibility.
  • Supplied as complete system with panels, posts and gates.
  • Suitable for schools, playground and sport stadia. Complies with BS 1722-14, category 1 and 2.
  • All materials covered by a ten year guarantee.

General information

Color

Green

White

Grey

Black

Finish

Polyester powder-coated

Material

Steel

Shape

Rectangular

Size

3000 x 900 mm

3000 x 1200 mm

3000 x 1500 mm

3000 x 1800 mm

WarrantyDescription

Ten years

Uniclass 2015

Ss_25_14_67_51 Metal mesh panel fencing systemsPrimary

CAWS

Q40/125 Open mesh steel panel general purpose fencing

Q40/126 Open mesh steel panel security fencing

Q40/27 Open mesh steel panel general purpose fencing

Specification data - Metal mesh panel fencing systems Enhanced data

Category

2.

3.

Posts

Nylofor-Twilfix.

  • Sentinel twilfix 2000 RHS, galvanized rectangular hollow section 60 x 60 x 2 mm.
  • Available in polyester powder coated in either green (RAL 6005) or black (RAL 9005). Other colours available upon request.

Panels

  • The panels have a unique and ‘user friendly’ closed beam section located along the top and bottom edge of the panel. With no sharp or raw edges, Roll Top panels are suitable where safety is a consideration. Mesh sizes are 150 x 50mm, and panels are manufactured from heavy 5mm wires, to achieve highly rigid panels.
  • Panel incorporates ‘Rolled’ beam profile spanning horizontally across the top and bottom of the panel
  • Manufactured using 5 mm diameter galvanized wire welded at each intersection, panel incorporates rolled beam profile spanning horizontally across the top and bottom panel.
  • Mesh pattern: 150 x 50 mm.
  • Galvanized and polyester powder coated in either green (RAL 6005) or black (RAL 9005). Other colours are available on request.

Product Reference

Roll Top®

Colour

Green.

RAL 6005.

Black.

RAL 9005.

Special order.

Other colours available upon request; insert requirements.

Width

3000 mm.

Digital objects

Platform Compatible Version Certified to
IFC
-

2

2.1
Revit

Revit 2017

2

2.1
Download now from NBS National BIM Library
